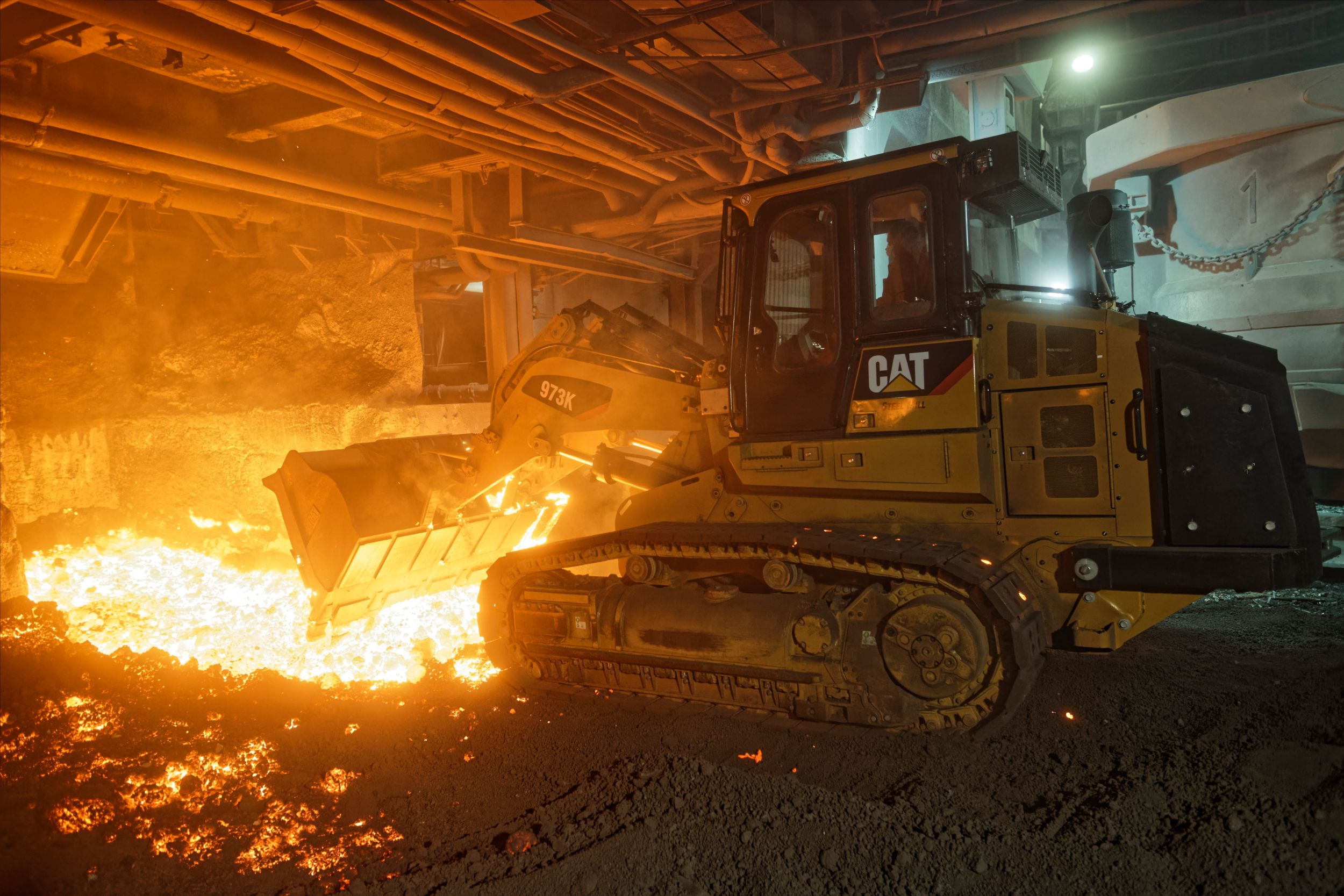

Product Specs
Engine
- Flywheel Power
- 275 HP
- Engine Model
- Cat C9.3
- Emissions
- U.S. EPA Tier 4 Final/EU Stage V/Japan 2014 (Tier 4 Final), Korea Tier 4 Final emission standards OR China Nonroad Stage III, India Bharat III, Eurasian Economic Union Stage IIIA UN ECE R96 Stage IIIA emission standards, equivalent to Tier 3/Stage IIIA
- Engine Power - Maximum - SAE J1995
- 310 HP
- Engine Power - Maximum - ISO 14396
- 306 HP
- Engine Power - Maximum - ISO 14396 (DIN)
- 310 HP
- Net Power (Rated) - ISO 9249/SAE J1349
- 275 HP
- Net Power (Rated) - ISO 9249/SAE J1349 (DIN)
- 278 HP
- Note (1)
- Engine ratings at 1,800 rpm.
- Note (2)
- No derating required up to 2164 m (7,200 ft) altitude.
- Note (3)
- All nonroad Tier 4 Interim and Final, Stage IIIB, IV and V, Japan 2014 (Tier 4 Final) and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) with 15 ppm (mg/kg) of sulfur or less, or up to B20 biodiesel blended with
- Note (4)
- Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241.
Weights
- Operating Weight
- 74293 lb
- Operating Weight - Steel Mill
- 74293 lb
- Shipping Weight - Steel Mill
- 63097 lb
- Note
- Steel Mill weights are with new slag bucket.
Buckets
- Capacity - General Purpose
- 4 yd³
- Capacity - Slag
- 4 yd³
- Width - Slag
- 112 in
Undercarriage
- Track Shoe Type
- Heavy Duty Sealed and Non Lubricated - Steel Mill, Double Grouser
- Track Shoe Width - Standard
- 19.7 in
- Track Rollers - Each Side
- 7
- Number of Shoes - Each Side
- 40
- Track on Ground
- 115.4 in
- Ground Contact Area (ISO 16754:2008): Steel Mill Shoe - 500 mm (19.7 in)
- 5161 in²
- Ground Pressure* (ISO 16754:2008): Steel Mill Shoe - 500 mm (19.7 in)
- 14.4 psi
- Grouser Height - Double Grouser
- 1.9 in
- Track Gauge
- 85 in
- Link Pitch
- 8.5 in
- Note
- * Calculated using Steel Mill operating weight with Slag Bucket.
Service Refill Capacities
- Fuel Tank
- 101.5 gal (US)
- Cooling System
- 11.6 gal (US)
- DEF Tank
- 9.2 gal (US)
Air Conditioning System
- Air Conditioning
- The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.1 kg of refrigerant which has a CO2 equivalent of 1.573 metric tonnes.
Standards
- ROPS
- ROPS (Rollover Protective Structure) offered by Caterpillar for the machine meets ROPS criteria ISO 3471:2008.
- FOPS
- FOPS (Falling Object Protective Structure) meets ISO 3449-2005 Level II.
- Brakes
- Brakes meet the standard ISO 10265:2008.
- Cab - Declared Dynamic Operator Sound Pressure Level
-
- The declared dynamic operator sound pressure level when "ISO 6396:2008" is used to measure the value for an enclosed cab is 75 dB(A). The measurements were conducted at 80% of the maximum engine cooling fan speed. The sound level may vary at diffe
- Cab - Hearing Protection
- Hearing protection may be needed when the machine is operated with an open operator station for extended periods, in a noisy environment or with a cab that is not properly maintained.
- Cab - Labeled Sound Power Level
- The guaranteed exterior sound power level (LWA) is measured according to the dynamic test procedures and the conditions that are specified in "ISO 6395:2008" [111 dB(A)]. The measurements were conducted at 80% of the maximum engine cooling fan speed. The
- Sound Level Information (EU)
-
- Sound Level Information for Machines in European Union Countries and in Countries that Adopt the "EU Directives": The declared dynamic operator sound pressure level when "ISO 6396:2008" is used to measure the value for an enclosed cab is 75 dB(A).
Dimensions
- Overall Machine Width without Bucket: Steel Mill Tracks - 500 mm (19.7 in) Shoes
- 107.9 in
- Overall Machine Width with Slag Bucket: Steel Mill Tracks - 500 mm (19.7 in)
- 116.5 in
- Ground Clearance
- 18.5 in
- Machine Height - Top of Cab
- 140 in
- Length - Front of Track
- 209.6 in
- Overall Machine Length*
- 298.4 in
- Carry Position Approach Angle
- 15°
- Digging Depth*
- 6.2 in
- Maximum Rollback - Ground/Carry Position
- 43°/47°
- Bucket Height - Carry Position
- 19 in
- Reach at Full Lift Height and 45° Dump*
- 53.8 in
- Clearance at Full Lift Height and 45° Dump*
- 116.2 in
- Maximum Rollback/Dump - Fully Raised
- 59°/49°
- Grading Angle
- 85°
- Height - Bucket Hinge Pin
- 166.1 in
- Overall Machine Height - Bucket Fully Raised
- 226.5 in
- Height to Top of the Seat with Headrest
- 117.6 in
- Height - Top of Stack
- 120.8 in
- Ramp Angle
- 29°
- Note
-
*With General Purpose bucket Performance with heavy duty teeth. Dimensions vary with bucket. Refer to Operating Specifications chart.
- Machine Height to Top of Cab is with Steel Mill plate.
Standard Equipment
-
- Power Train
-
- Cat C9.3 diesel engine
- Engine mounted aftertreatment to meet U.S. EPA Tier 4 Final/EU Stage V/Japan 2014 (Tier 4 Final), Korea Tier 4 Final emission standards OR Cat C9.3 engine to meet China Nonroad Stage III, India Bharat III, Eurasian Economic Union Stage IIIA UN ECE R96 Stage IIIA emission standards, equivalent to Tier 3/Stage IIIA
- Turbocharged with ATAAC
- Modular cooling system for engine air intake, oil and water
- Radiator fan, electronically controlled, hydraulically driven, temperature sensing, on demand
- Electro Hydrostatic Control (EHC) for transmission with travel and work modes
- Fuel cooler
- Water separator
- Air cleaner dry-type, axial seal with integral precleaner and dust ejection system, electronic filter condition indicator
- Caterpillar extended life coolant
-
- Undercarriage
-
- Caterpillar heavy duty tracks
- Track guiding guards, end section
- Track adjuster, hydraulic
- Sprocket rims, with replaceable bolt-on tough steel segments
- Guards, sprocket
- Seven track rollers, two upper carrier rollers per track, lifetime lubricated
- Idlers, conventional type, lifetime lubricated
- Oscillating track roller frames
- Track master link
-
- Electrical
-
- Alternator, 24 volt, heavy duty brushless
- Backup alarm
- Electric horn
- Two heavy duty batteries, high output, maintenance free 1,400 CCA
- Switch, main disconnect
- Starter, electric (heavy duty, 24 volt)
-
- Operator Environment
-
- Pressurized, sound suppressed, ROPS/FOPS cab with sealed front windshield, tinted glass and right side sliding window
- Air conditioning and heating
- Heater/defroster with automatic temperature control
- Electro Hydraulic, seat mounted control levers
- Seat belt, retractable, with buckling indicator on dash
- Electronic Monitoring System with gauges for: Engine coolant temperature, Hydraulic oil temperature, Fuel Level, Diesel Exhaust Fluid level (when equipped)
- Mirror, rearview, inside adjustable
- Radio ready: Includes 24 to 12 volt converter, speakers, antenna and two 12V power outlets
- Coat hook
- Storage compartments under left armrest
- Document holder on right console
- Floor mat, rubber, heavy duty
- Windshield washers and wipers, multiple speed front and rear
- Durable metal roof
- Parking brake switch and "brake-on" indicator light
-
- Other Standard Equipment
-
- Sound suppression, exterior
- Z-bar loader linkage
- Load sensing variable displacement implement pump
- Implement cylinders with position sensors
- Operator programmable lift and tilt kickouts
- Enginen enclosure with lockable doors
- Radiator core 6.5 fins-per-inch, debris resistant
- Hinged radiator guard and swing out fan
- Full bottom guards
- Lift cylinder guards
- Oil gauge guard
- Product Link ready
- Oil sampling valves
- Cat XT hoses
- HYDO Advanced 10
Attachments
-
- Power Train
-
- Engine thermal shield
- Fan, basic
- Fan, reversing
- Fan, reversing, low speed
- Fan, reversing, Steel Mill
- Air inlet, preclenaer turbine
-
- Operator Environment
-
- Cab
- Deluxe cab
- Steel Mill cab
- Seat, cloth, air suspension, no side-to-side isolator
- Seat, cloth, air suspension, heated, side-to-side isolator
- Transmission control, V-lever or joystick
- Visibility kit - single camera
- Visibility kit - double camera
- Radio, AM/FM/AUX/USB/Bluetooth
- Cab air precleaner
-
- Hydraulics
-
- Hydraulic oil, biodegradable
- Hydraulic oil, EcoSafe
- Hydraulics Packages: General purpose - Two-valve joystick, Three-valve joystick, Two-valve, two levers, Three valves, two levers; Multi-Purpose - Three-valve joystick, Four-valve joystick
-
- Guards
-
- Tilt cylinder guards
- Guard, front lights
- Windshield protection
- Final drive abrasion guard
- Final drive abrasion guard, lower
-
- Electrical
-
- Rotating beacon
-
- Undercarriage
-
- Track roller guard
- Track roller guard, Steel Mill
- Track Groups (40 sections) - Heavy Duty Track Groups - Sealed and Lubricated: 500 mm (19.7 in) double grouser, center hole; 510 mm (20.1 in) extreme service, single grouser, center hole; 550 mm (21.6 in) double grouser; 675 mm (26.6 in) double grouser; 675 mm (26.6 in) double grouser, center hole; 675 mm (26.6 in) single grouser, center hole; 830 mm (32.7 in) double grouser, wide gauge
- Track Groups (40 sections) - Heavy Duty Track Groups - Sealed and Non-Lubricated - Steel Mill: 500 mm (19.7 in) double grouser; 500 mm (19.7 in) flat; 500 mm (19.7 in) triple grouser; 500 mm (19.7 in) alternate flat shoe
-
- Buckets
-
- General Purpose: 3.0 m³ (4.0 yd³), welded flush adaptors; 3.2 m³ (4.2 yd³), pin on; 3.2 m³ (4.2 yd³), heavy duty, pin on; 3.2 m³ (4.2 yd³), heavy duty, full edge, pin on; 4.2 m³ (5.5 yd³), Performance Series; 4.0 m³ (5.2 yd³), Performance Series flush
- Multi-Purpose: 3.0 m³ (4.0 yd³), heavy duty, pin on; 3.0 m³ (4.0 yd³), pin on
- Wide: 4.2 m³ (5.5 yd³), Performance Series
- Landfill: 4.6 m³ (6.0 yd³), multi-purpose landfill, heavy duty, pin on; 4.9 m³ (6.4 yd³), general purpose landfill, heavy duty, pin on
- Steel Mill: 3.0 m³ (4.0 yd³), slag bucket
-
- Other Attachments
-
- Counterweight
- Counterweight, heavy duty bumper
- Ripper, multi-shank
- Hitch, ripper
- Striker bars, rear
- Bumper, standard
- No bumper
- Rear step, standard
- Rear step, ripper
- Additional work tools: Quick coupler, Blades, Forks, Material handling arms, Rakes
-
- Starters, Batteries And Alternators
-
- Engine coolant heater, 120V
- Engine coolant heater, 240V
-
- Maintenance And Related Attachments
-
- Maintenance package, deluxe
- High speed oil change
- Sediment pump
- Fuel tank refueling pump
- Service package, standard
- Locking bar that holds cab at 30 degrees safely, front windshield
- Service package, extended: Manual hydraulic system enabling cab tilt and lock at 30 degrees safely in the field; Shovel holder (shovel not included)
- Antifeeze -50 degrees Celcius (-58 degrees Fahrenheit)
-
- Technology Products
-
- Product Link - Satellite
- Product Link - Cellular
- Grade control mast
