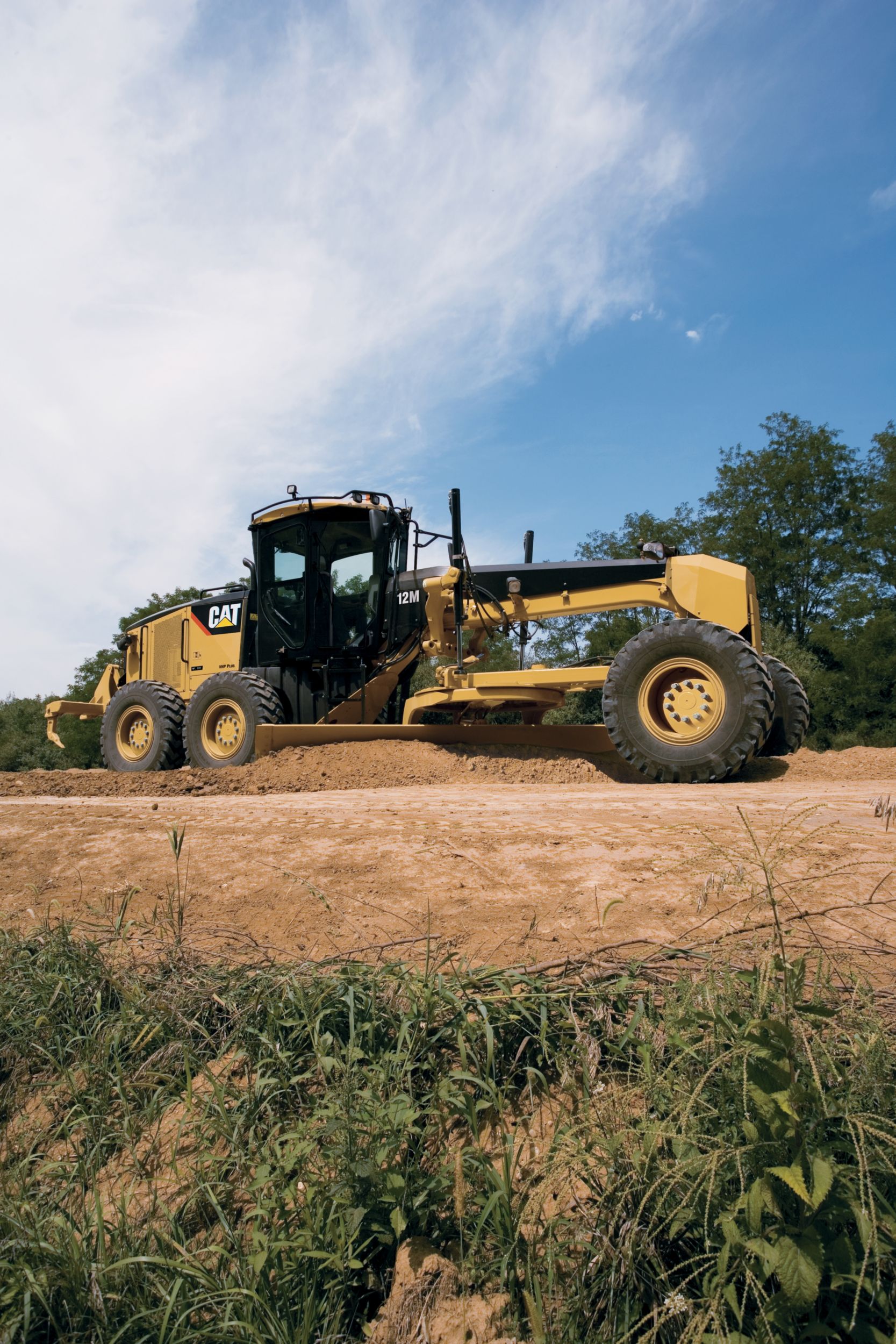

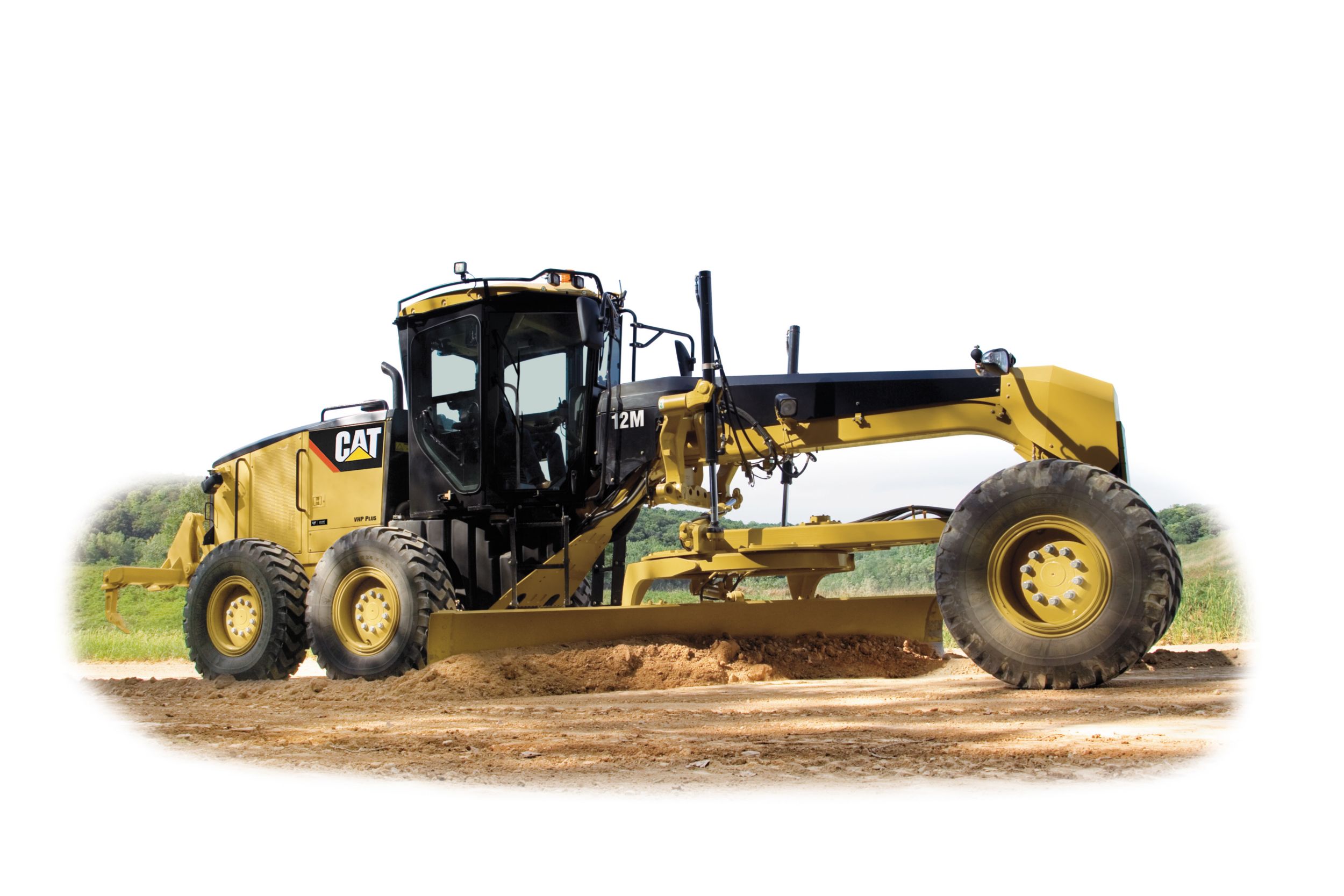

12M Motor Grader

The 12M delivers multiple technological breakthroughs to give you the best return on your investment.

Request Quote
Please contact your nearest store for rates and other details.

Product Specs

Engine

Base Power (1st Gear) - Net
158 mm H2O
Engine Model
Cat® C6.6 ACERT™ VHP
Engine Model
Cat® C6.6 ACERT™ VHP
Bore
4.13 in
Bore
4.13 in
Stroke
4.92 in
Stroke
4.92 in
Speed at Rated Power
2000 RPM
Base Power (All Gears) - Net
158 mm H2O
Maximum Torque
690 lb/ft
VHP Plus Range - Net
118-144 kW (158-193 hp)
VHP Range - Net
118 -129 kW (158-173 hp)
Base Power (all gears) - Net
158.0 hp
Maximum Torque
690.0 lb ft
Torque Rise - VHP Plus
40%
VHP Plus Range - Net
118-144 kW (158-193 hp)
VHP Range - Net
118 -129 kW (158-173 hp)
Displacement
403 in³
Displacement
403.0 in3
Number of Cylinders
6
Number of Cylinders
6
Derating Altitude
11500 ft
Derating Altitude
11500.0 ft
Standard - Fan Speed - Maximum
1150 RPM
Standard - Fan Speed - Maximum
1150 RPM
Standard - Fan Speed - Minimum
550 RPM
Standard - Fan Speed - Minimum
550 RPM
Standard - Ambient Capability
109.0 ° F
Standard - Ambient Capability
109 °F
High Ambient - Fan Speed - Maximum
1650 RPM
High Ambient - Fan Speed - Minimum
550 RPM
High - Ambient Capability
122 °F

Moldboard

Blade Width
12 ft
Moldboard - Height
24 in
Moldboard - Height
24.0 in
Moldboard - Thickness
0.87 in
Moldboard - Thickness
0.87 in
Arc Radius
16.3 in
Throat Clearance
4.88 in
Cutting Edge Width
6 in
Cutting Edge Thickness
0.6 in
End Bit - Width
6 in
End Bit - Thickness
0.6 in
Blade Pull - Base GVW
20830 lb
Blade Pull - Base GVW
20830.0 lb
Blade Pull - Maximum GVW
25862 lb
Blade Pull - Maximum GVW
25862.0 lb
Blade Down Pressure - Base GVW
17566 lb
Blade Down Pressure - Base GVW
17566.0 lb
Blade Down Pressure - Maximum GVW
28254 lb
Blade Down Pressure - Max GVW
28254.0 lb

Weights

Gross Vehicle Weight - Maximum - Front Axle
15954 lb
Gross Vehicle Weight - Maximum - Front Axle
15954.0 lb
Gross Vehicle Weight - Maximum - Rear Axle
48736 lb
Gross Vehicle Weight - Maximum - Rear Axle
48736.0 lb
Gross Vehicle Weight - Base - Front Axle
9919 lb
Gross Vehicle Weight - Base - Front Axle
9919.0 lb
Gross Vehicle Weight - Base - Rear Axle
23145 lb
Gross Vehicle Weight - Base - Rear Axle
23145.0 lb
Gross Vehicle Weight - Maximum - Total
44690 lb
Gross Vehicle Weight - Maximum - Total
44690.0 lb
Gross Vehicle Weight - Base - Total
33064 lb
Gross Vehicle Weight - Base - Total
33064.0 lb

Operating Specifications

Top Speed - Forward
27.7 mile/h
Top Speed - Reverse
23.5 mile/h
Turning Radius - Outside Front Tires
24.5 ft
Steering Range - Left/Right
47.5°
Articulation Angle - Left/Right
20°
Forward - 1st
2.4 mile/h
Forward - 2nd
3.3 mile/h
Forward - 3rd
4.75 mile/h
Forward - 4th
6.5 mile/h
Forward - 5th
10.2 mile/h
Forward - 6th
13.8 mile/h
Forward - 7th
19 mile/h
Forward - 8th
27.7 mile/h
Reverse - 1st
2 mile/h
Reverse - 2nd
3.8 mile/h
Reverse - 3rd
5.6 mile/h
Reverse - 4th
8.6 mile/h
Reverse - 5th
16.1 mile/h
Reverse - 6th
23.5 mile/h

Service Refill

Fuel Capacity
90 gal (US)
Cooling System
10.4 gal (US)
Hydraulic System - Tank
16 gal (US)
Engine Oil
4.1 gal (US)
Transmission - Differential - Final Drives
13.2 gal (US)
Transmission/Differential/Final Drives
13.2 gal
Tandem Housing - Each
16.9 gal (US)
Front Wheel Spindle Bearing Housing
0.1 gal (US)
Circle Drive Housing
1.8 gal (US)

Power Train

Forward/Reverse Gears
8 Fwd / 6 Rev
Transmission
Direct drive, power shift, countershaft
Brakes - Service
Multiple oil-disc
Brakes - Service - Surface Area
3565 in²
Brakes - Service, Surface Area
3565.0 in2
Brakes - Parking
Multiple oil disc
Brakes - Secondary
Dual circuit control system

Hydraulic System

Circuit Type
Electro-hydraulic closed center, load sensing,
Pump Type
Variable piston
Pump Output
51 gal/min
Pump Output
51.0 gal/min
Maximum System Pressure
3500 psi
Standby Pressure
450 psi
Standby Pressure
450.0 psi

Frame

Drawbar - Width
3 in
Circle - Diameter
60.2 in
Circle - Blade Beam Thickness
1.4 in
Drawbar - Height
6 in
Front Frame Structure - Thickness
0.63 in
Front Frame Structure - Height
10 in
Front Frame Structure - Thickness
0.63 in
Front Frame Structure - Width
10 in
Drawbar - Thickness
0.4 in
Drawbar - Thickness
0.4 in
Drawbar - Yoke Bar Thickness
0.75 in
Front Axle - Height to Center
22.5 in
Front Axle - Wheel Lean, Left/Right
18°
Front Axle - Wheel Lean - Left/Right
18°
Front Axle - Total Oscillation per Side
32°

Blade Range

Circle Centershift - Right
25.8 in
Circle Centershift - Left
25.8 in
Moldboard Sideshift - Right
26 in
Moldboard Sideshift - Left
20.1 in
Maximum Blade Position Angle
90°
Blade Tip Range - Forward
40°
Blade Tip Range - Backward
5°
Maximum Shoulder Reach Outside of Tires - Right
75 in
Maximum Shoulder Reach Outside of Tires - Left
68.6 in
Maximum Lift Above Ground
16.8 in
Maximum Depth of Cut
28.3 in

Standards

Brakes
ISO 3450:1996
ROPS/FOPS
ISO 3471:1992 / ISO 3449:1992
Sound
ISO 6394:1998 / ISO 6395:1988
Steering
ISO 5010:1992

Scarifier

Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holder Spacing
4.6 in
Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holders
5 / 11
Front, V-Type, 5 or 11 Tooth - Scarifying Depth, Maximum
18.4 in
Front, V-Type, 5 or 11 Tooth - Working Width
47.4 in
Mid, V-Type - Scarifier Shank Holder Spacing
4.6 in
Mid, V-Type - Scarifier Shank Holders
11
Mid, V-Type - Scarifying Depth, Maximum
11.5 in
Mid, V-Type - Working Width
46.6 in
Mid, Straight - Scarifier Shank Holder Spacing
4.4 in
Mid, Straight - Scarifier Shank Holders
17
Mid, Straight - Scarifying Depth, Maximum
12.5 in
Mid, Straight - Working Width
71 in
Rear - Scarifying Depth, Maximum
10.5 in
Mid, V-Type - Scarifier Shank Holder Spacing
4.6 in
Mid, V-Type - Scarifying Depth, Maximum
11.5 in
Mid, V-Type - Working Width
46.6 in
Rear - Scarifying Depth, Maximum
10.5 in
Rear - Working Width
91.0 in
Rear - Working Width
91 in
Rear - Scarifier Shank Holders
9
Rear - Scarifier Shank Holder Spacing
10.5 in
Rear - Scarifier Shank Holder Spacing
10.5 in

Ripper

Penetration Force
18911 lb
Pry-Out Force
25972 lb
Machine Length Increase, Beam Raised
39.2 in

Tandems

Height
19.76 in
Width
6.76 in
Sidewall Thickness - Inner
0.5 in
Sidewall Thickness - Outer
0.6 in
Drive Chain Pitch
1.8 in
Wheel Axle Spacing
59.5 in
Tandem Oscillation - Front Up
15°
Tandem Oscillation - Front Down
25°

Dimensions

Height - Top of Cab
129 in
Height - Top of Cab
129.0 in
Length - Counterweight to Ripper
389.3 in
Length - counterweight to ripper
389.3 in
Width - Outside Front Tires
97.7 in
Width - Outside Front Tires
97.7 in
Length - Front Axle to Mid Tandem
232.8 in
Length - Front Axle to Mid Tandem
232.8 in
Length - Front Tire to Rear of Machine
334.1 in
Length - Front Tire to Rear of Machine
334.1 in
Length - Front Axle to Moldboard
98.85 in
Length - Front Axle to Moldboard
98.85 in
Length - Between Tandem Axles
59.5 in
Length - Between Tandem Axles
59.5 in
Width - Outside Rear Tires
97.7 in
Width - Outside Rear Tires
97.7 in
Width - Tire Center Lines
84.1 in
Width - Tire Center Lines
84.1 in
Height - Front Axle Center
22.5 in
Height - Front Axle Center
22.5 in
Height - Exhaust Stack
112.4 in
Height to Exhaust Stack
112.4 in
Height - Top of Cylinders
113.7 in
Height to Top of Cylinders
113.7 in
Ground Clearance - Rear Axle
13.6 in
Ground Clearance at Rear Axle
13.6 in

Standard Equipment

  • Operator Environment
    • Air Conditioner with heater
    • Arm and wrist rest, adjustable
    • Articulation, automatic Return-to-Center
    • Ashtray and lighter
    • Cat Messenger, operator information system
    • Centershift pin indicator
    • Coat hook
    • Cup holder
    • Display, digital speed and gear
    • Doors, left and right side with wiper
    • Gauge cluster - articulation, engine coolant temp,
    • Gauge, machine level
    • Hour meter, digital
    • Joystick hydraulic controls
    • Ladders, cab, left and right side
    • Lights, night time cab
    • Mirror, inside rearview, wide angle
    • Power port, 12V
    • Radio Ready, Entertainment
    • ROPS cab, sound suppressed
    • Seat belt, retractable 76 mm (3 in)
    • Seat, cloth-covered, comfort suspension
    • Storage area for cooler/lunchbox
    • Throttle control, electronic
    • Windows, laminated glass:
  • Electrical
    • Alarm, back up
    • Alternator, 80 ampere, sealed
    • Batteries, maintenance free, heavy duty 1125 CCA
    • Breaker panel, ground accessible
    • Electrical system, 24V
    • Grade Control Ready - Cab harness, software,
    • Lights, reversing
    • Lights, roading, roof-mounted
    • Lights, stop and tail, LED
    • Product Link Ready
    • Starter, electric
  • Power Train
    • Air cleaner, dual stage, dry type, automatic dust ejector,
    • Air-to-air after cooler (ATAAC)
    • Belt, serpentine, automatic tensioner
    • Brakes, four-wheel hydraulic
    • Differential, lock / unlock
    • Drain, engine oil, ecology
    • Electronic over speed protection
    • Engine, Cat® C6.6 with ACERT™ Technology
    • Fuel-water separator
    • Hydraulic demand fan
    • Muffler, under hood
    • Parking brake - multi-disc, sealed, oil-cooled
    • Priming pump, fuel
    • Rear axle, modular
    • Sediment drain, fuel tank
    • Transmission, 8F/6R, power shift, direct drive
    • VHP (Variable Horsepower)
  • Other Standard Equipment
    • Brake accumulators, dual certified
    • Bumper, rear, integrated with hitch
    • CD ROM Parts Book
    • Clutch, circle drive slip
    • Cutting edges
    • Doors (3), engine compartment, locking
    • Drawbar - 6 shoe with replaceable wear strips
    • Endbits
    • Extended Life Coolant to -35° C (-30° F)
    • Fluid check, ground level
    • Frame, articulated, with safety lock
    • Fuel tank, ground level access
    • Ground level engine shutdown
    • Hammer (emergency exit)
    • Horn, electric
    • Hydraulics, base 8 implement controls
    • Hydraulics, load-sensing
    • Lockout, hydraulic implement for roading
    • Moldboard
    • Mounting, cab roof accessories
    • Paint, glare reducing - top of front frame
    • Pump, hydraulic, high capacity (98 cc/6 in3)
    • Radiator cleanout access
    • Secondary steering
    • Serviceability, LH side
    • SOSSM ports: engine, hydraulic, transmission, coolant, fuel
    • Tandem walkway/guards
    • Tool box
    • Tow hitch
  • Tires, Rims, & Wheels
    • Partial allowance for tires and multi-piece rims

Attachments

  • Electrical Kg Lb
    • Alternator, 150 ampere 2 5
    • Batteries:
    • Converter, communication (CB) 5 11
    • Lights:
  • Guards
    • covers, screen 4 9
    • debris        9    20
    • Transmission Sides/Sound
    • transmission 141 310
  • Operator Environment
    • Fan, defroster, rear window 2 4
    • Mirrors, outside:
    • Precleaner, HVAC 5 10
    • Seat, air suspension, cloth 2 5
    • Shade, sun 2 5
    • Wiper, each side 0 1
    • Wiper/washer, rear 0 1
  • Power Train
    • Engine, variable horsepower plus (VHP Plus)
    • Precleaner, Sy-Klone 9 20
    • Transmission, autoshift 2 5
  • Other Attachments Kg Lb
    • AccuGrade ARO 39 85
    • Accumulators, blade lift 77 170
    • AutoLube, Lincoln 23 50
    • AutoLube, Lincoln, ripper enhancement 5 10
    • Camera, rearview 9 20
    • Caterpillar Product Link 321SR 5 10
    • Compressor/tank, Air 23 50
    • Fenders, front, AWD 56 124
    • Fenders, rear 119 262
    • Heater, engine coolant:
    • Hydraulic arrangements with one or more additional
    • Security system 2 5
    • Snow wing mounting, frame ready 91 200
    • Starting aid, Ether .5 1
  • Work Tools / G.e.t.
    • Blade extension, 610 mm (2 ft)
    • Cutting Edges, curved 43 95
    • Endbits, overlay 24 52
    • Front lift group, mechanical 680 1500
    • Front lift group, hydraulic 680 1500
    • Grader bit, narrow and super penetration 181 400
    • Mid Mount Scarifier 939 2071
    • Moldboard
    • Push plate, counterweight 907 2000
    • Ripper, rear 962 2120
    • Ripper tooth 28 61
    • Scarifier, Tooth 69 152
  • Machine Arrangements
    • European Arrangement
    • Roading Arrangement
    • Snow Arrangement
    • Canadian Arrangement

While Michigan CAT is now MacAllister Machinery, all other aspects of our interactions with customers and vendors will not change – including our banking information, where customers remit payment, or where vendors submit invoices for payment.

Pin It on Pinterest

Share This
