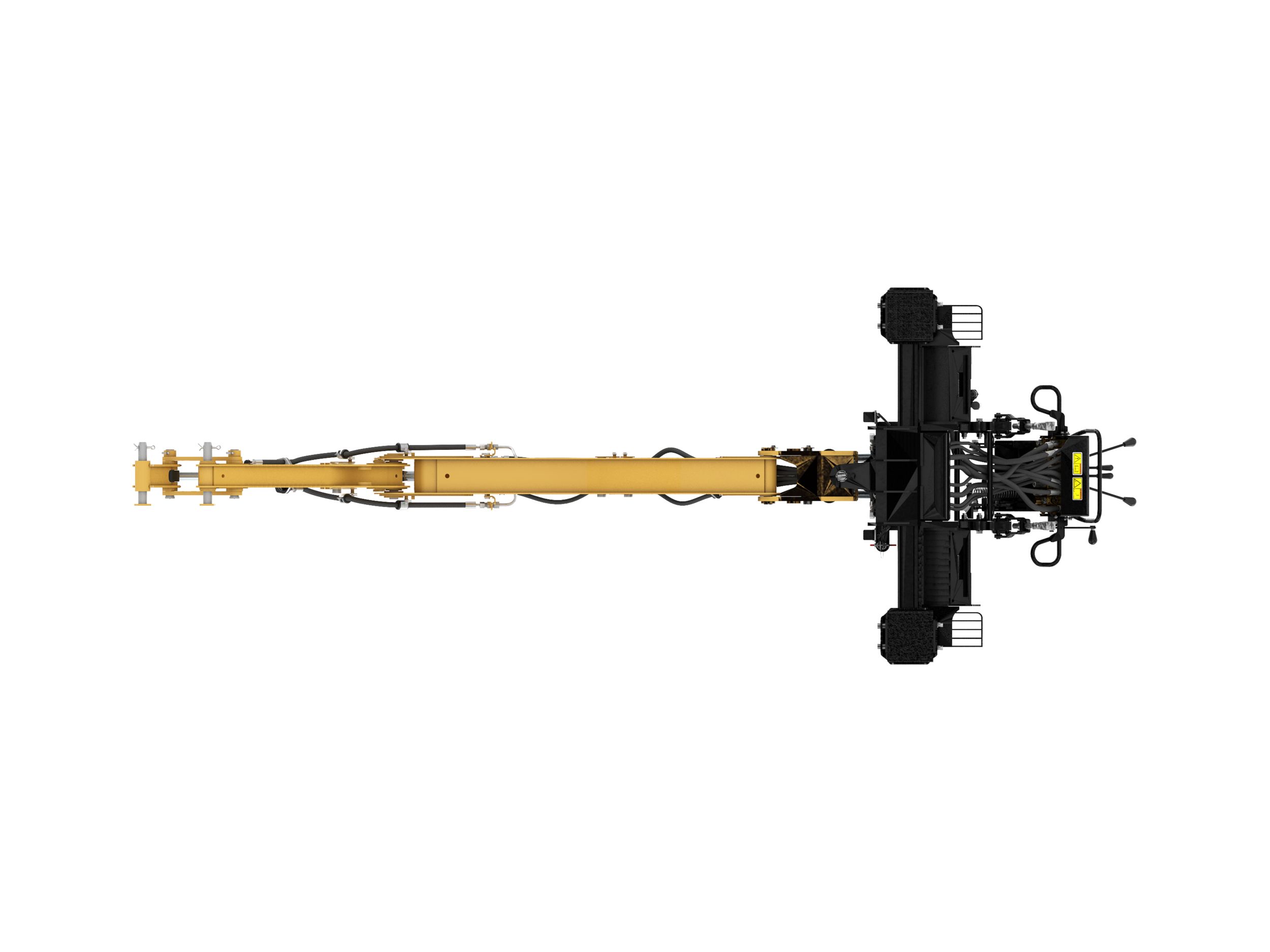

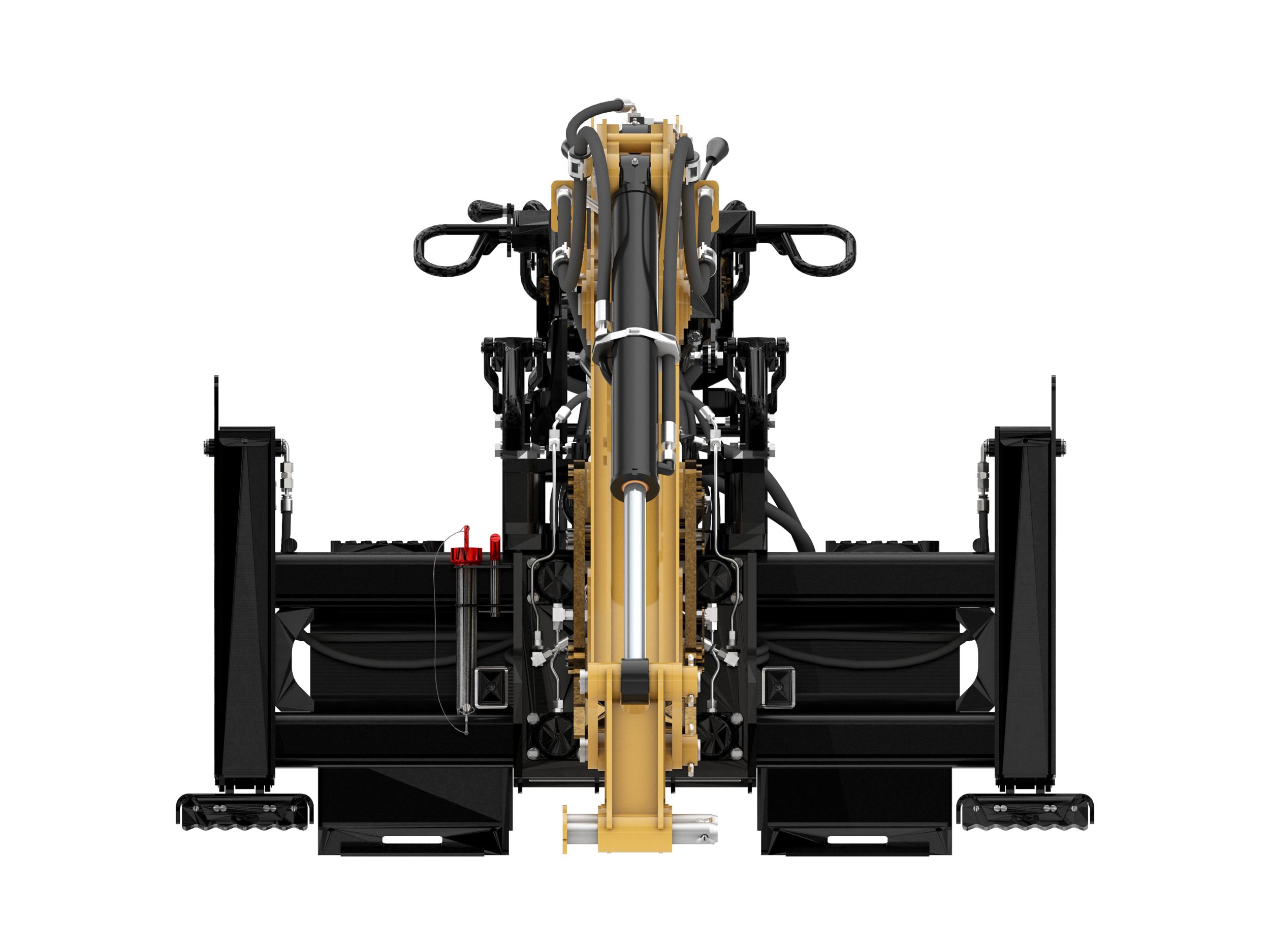

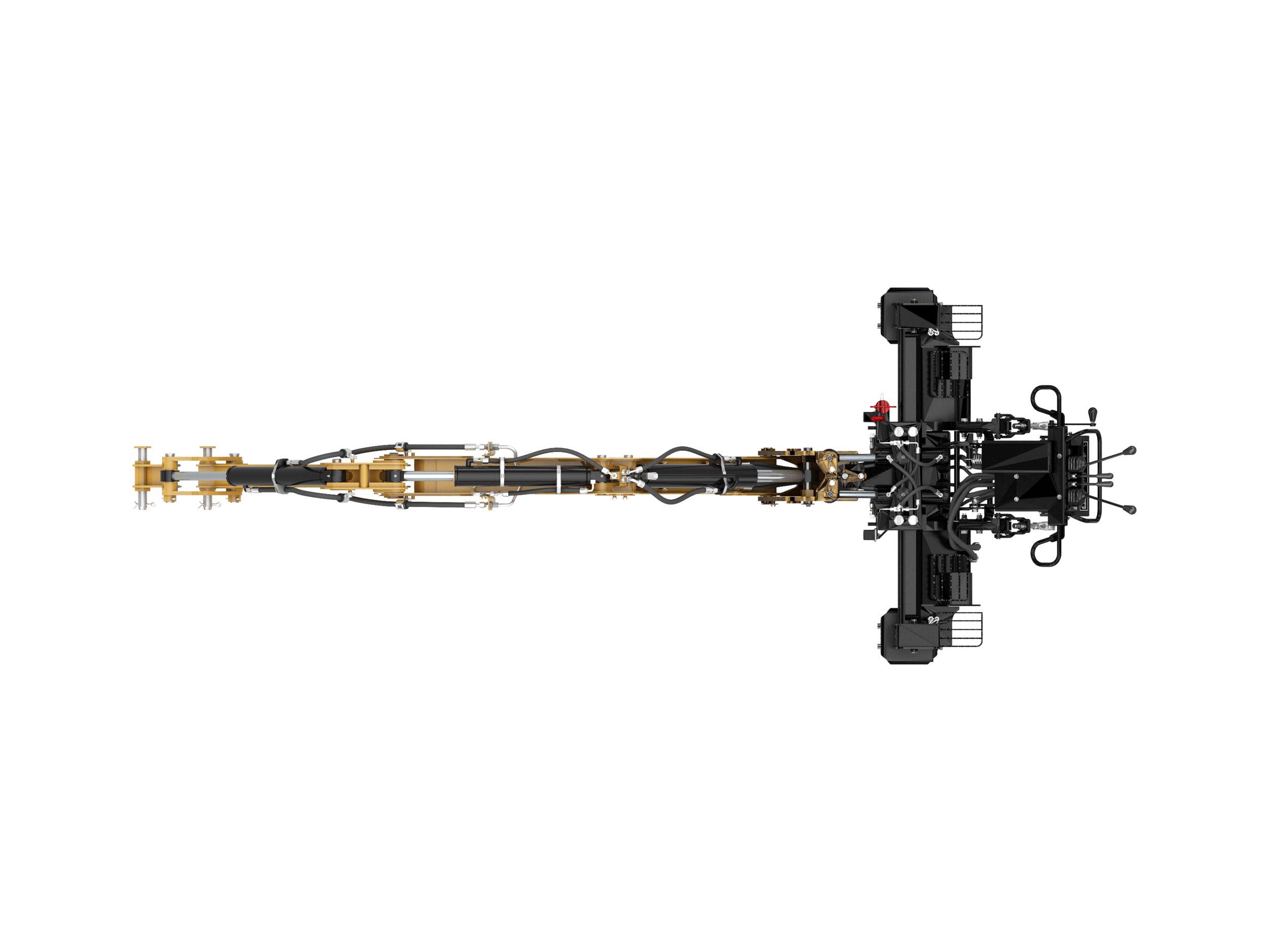

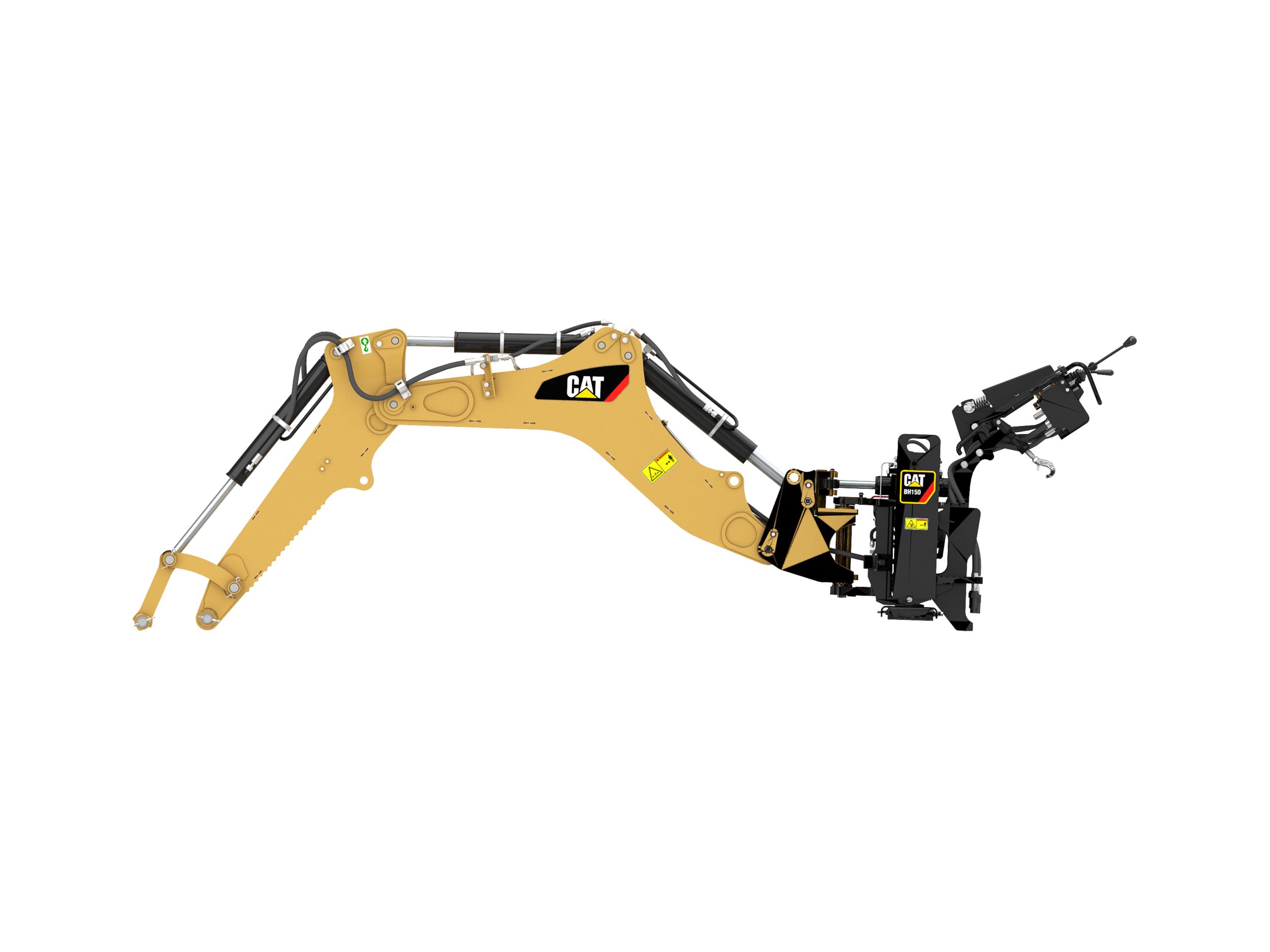

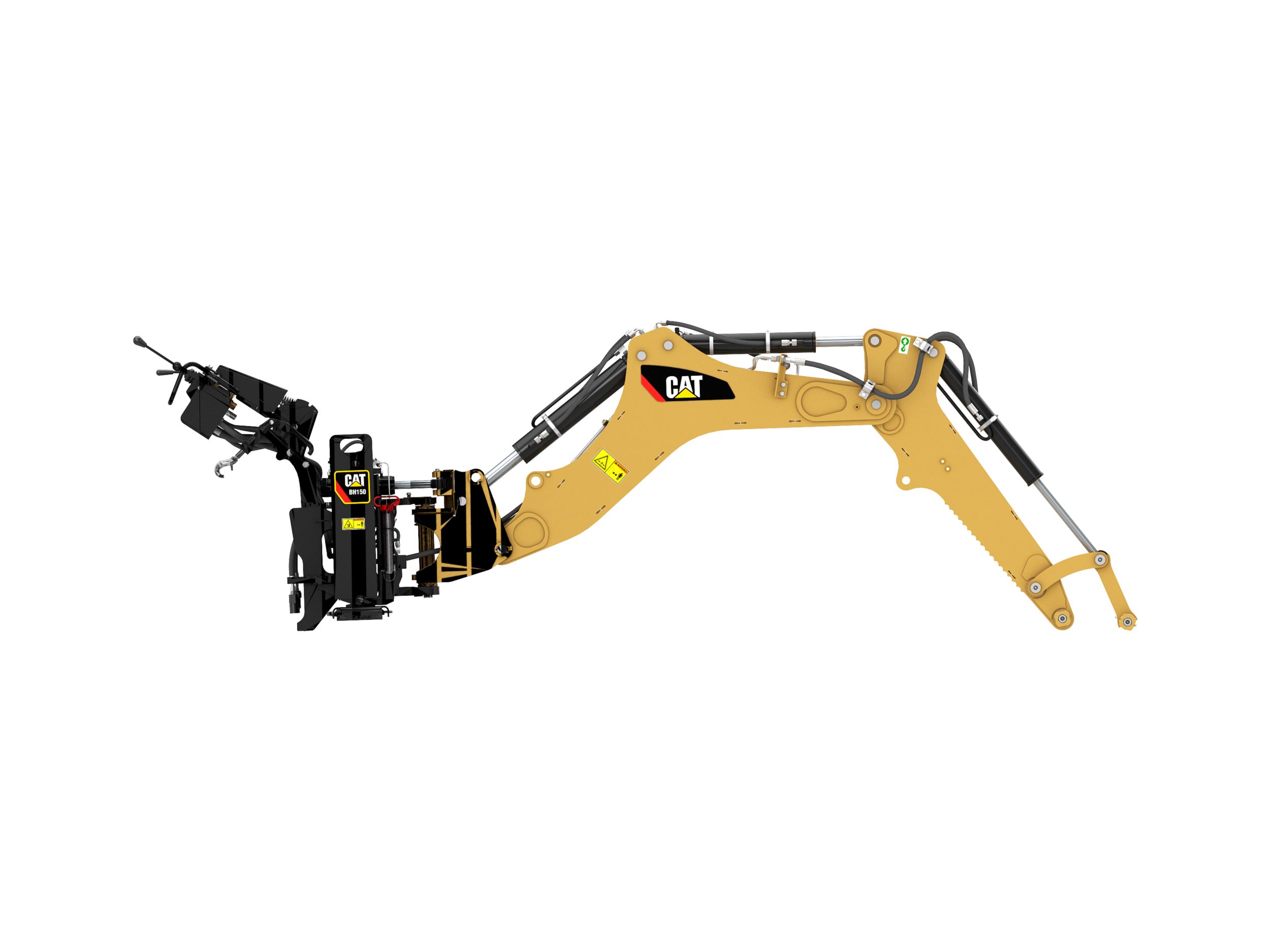

Exterior View
Product Specs
Dimensions
- Maximum Digging Depth
- 121 in
- Operating Weight
- 2255.3 lb
- Overall Length
- 109.3 in
- Stabilizer Spread - Operating Position
- 67.6 in
- Digging Depth at 610 mm (2 ft)
- 119.7 in
- Digging Depth at 4220 mm (8 ft)
- 102.1 in
- Straight Wall Digging Depth
- 81.3 in
- Overall Operating Height
- 135.5 in
- Loading Height
- 84.5 in
- Loading Reach
- 64.1 in
- Reach From Swing Pivot at Ground Line
- 155.7 in
- Swing Arc
- 180 degrees
- Bucket Rotation
- 192 degrees
- Bucket Breakout Force
- 7145.2 lb
- Stick Breakout Force
- 3439.2 lb
- Boom Pivot Height
- 16.7 in
- Ground Clearance
- 3.4 in
- Transport Height
- 92 in
- Transport Width
- 79.1 in
- Required Hydraulics
- Standard Flow
- Optimal Hydraulic Flow
- 42-86 L/min (11-23 gpm)
- Optimal Hydraulic Pressure
- 145-235 bar (2100-3400 psi)
- Total Side Shift Travel
- 32.4 in
- Interface Type
- Skid Steer Coupler
