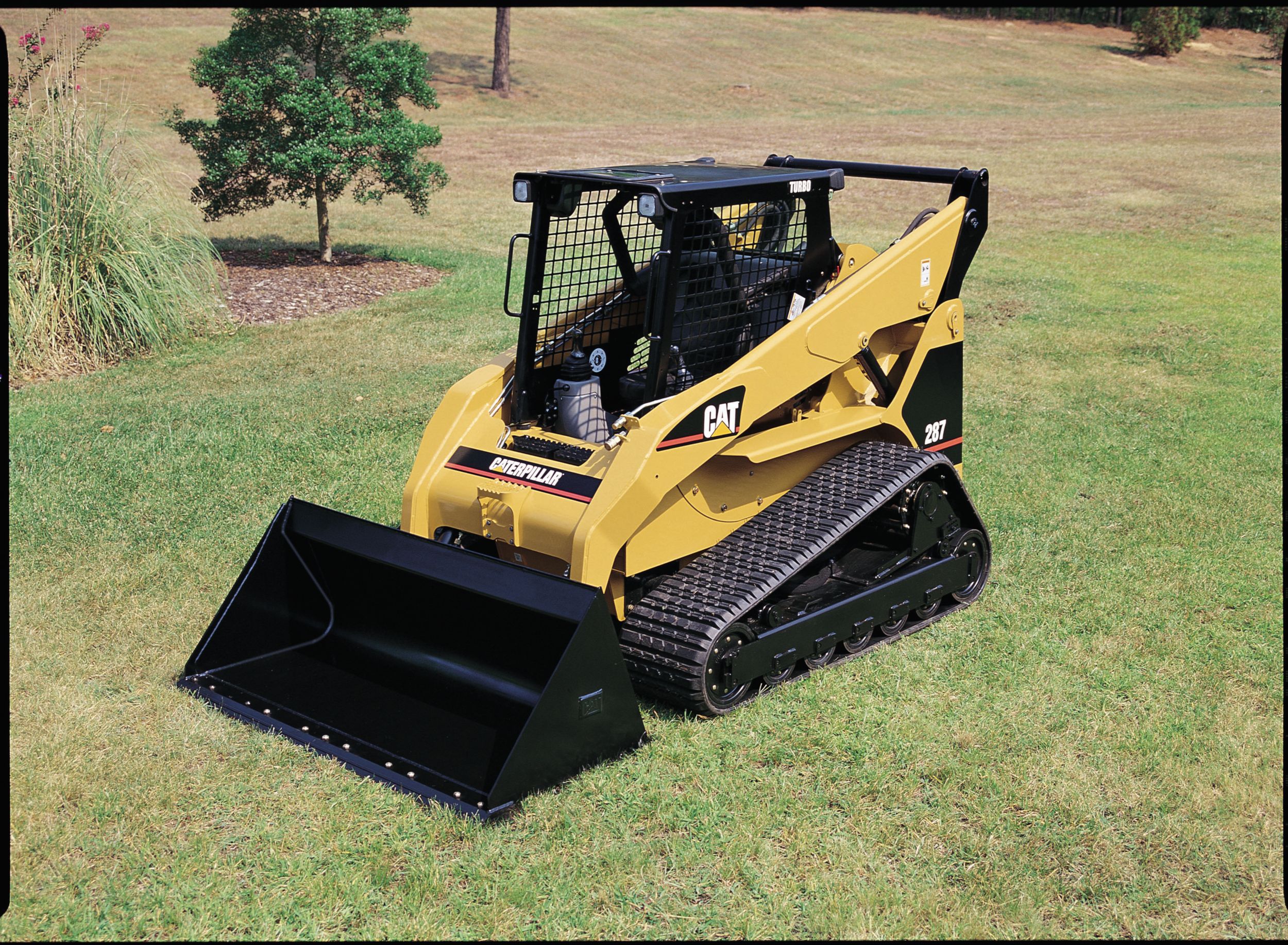

287 Multi Terrain Loader

More Reach and More Height in a Wider Range of Ground Conditions. The 287 Multi Terrain Loader, with suspended rubber track undercarriage, vertical lift linkage and many work tool options, is ideal for construction, landscaping, agriculture and other applications. It delivers traditional Cat reliability and durability with excellent productivity.

Request a Quote

Product Specs

Engine

Engine Model: Cat 3034 Turbo Charged
Engine Model: Cat 3034 Turbo Charged
Net Power: 74 hp
Net Power: 74 mm H2O
Gross Power: 80 hp
Gross Power: 80 mm H2O
Bore: 3.82 in
Bore: 3.82 in
Stroke: 3.94 in
Stroke: 3.94 in

Operating Specifications

Rated Operating Capacities: 50% Tipping Load: 3500 lb
Rated Operating Capacities - 50% Tipping Load: 3500 lb
Rated Operating Capacities: 35% Tipping Load: 2450 lb
Rated Operating Capacities - 35% Tipping Load: 2450 lb
Ground Contact Area: 2610 in2
Ground Contact Area: 2610 in²
Ground Pressure: 3.8 psi
Ground Pressure: 3.8 psi
Tipping Load: 7030 lb
Tipping Load: 7030 lb
Breakout force, lift cylinder: 4882 ft-lb
Breakout Force - Lift Cylinder: 4882 ft-lb
Breakout force, tilt cylinder: 4790 ft-lb
Breakout Force - Tilt Cylinder: 4790 ft-lb

Power Train

Travel Speed Forward: 7 mph
Travel Speed Forward: 7 mile/h
Travel Speed Reverse: 7 mph
Travel Speed Reverse: 7 mile/h

Weights

Operating Weight: 9860 lb
Operating Weight: 9860 lb

Service Refill Capacities

Cooling System: 2.6 gal
Cooling System: 2.6 gal (US)
Engine Crankcase: 1.8 gal
Engine Crankcase: 1.8 gal (US)
Fuel Tank: 29 gal
Fuel Tank: 29 gal (US)
Hydraulic System: 13.5 gal
Hydraulic System: 13.5 gal (US)
Hydraulic Tank: 9.2 gal
Hydraulic Tank: 9.2 gal (US)
