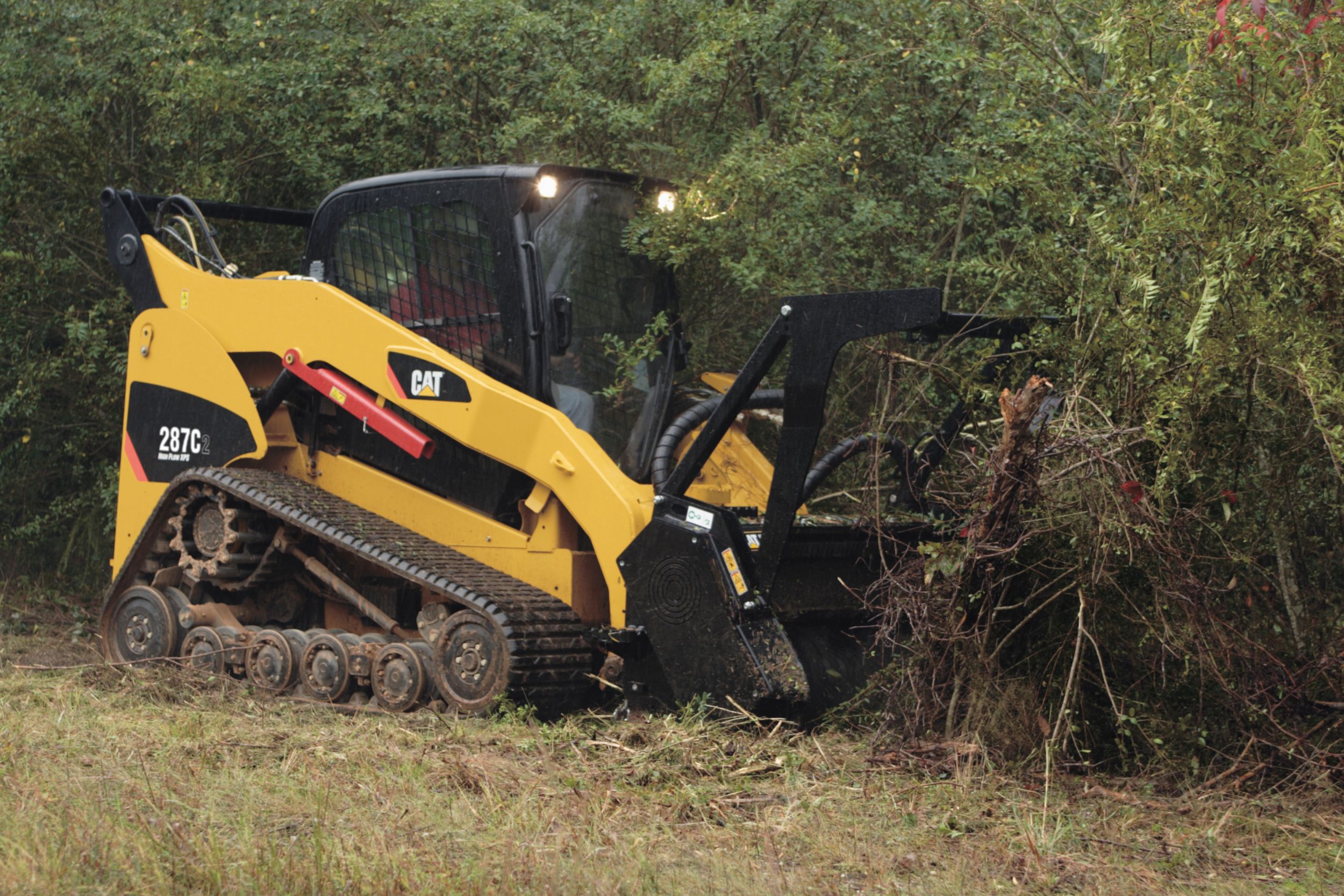

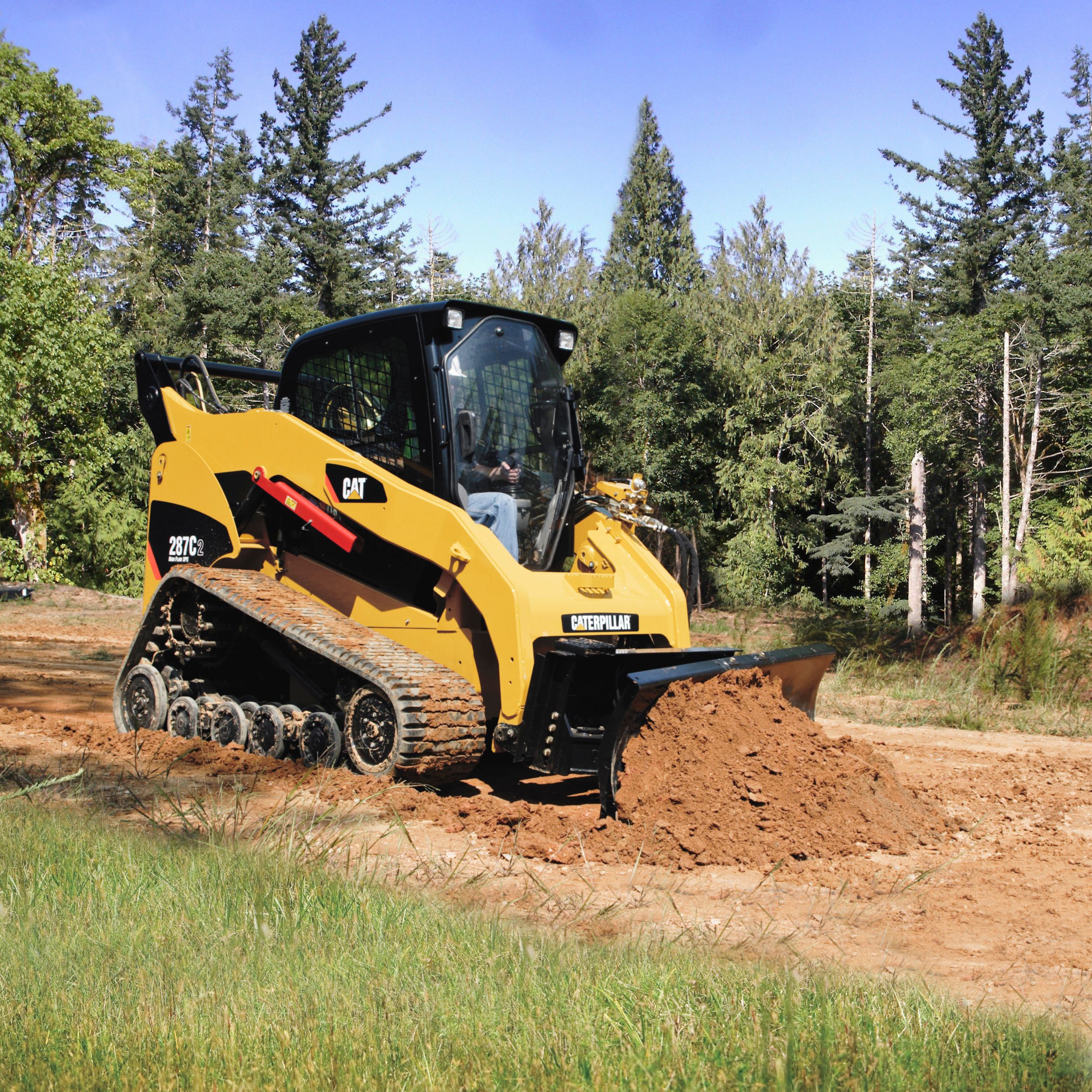

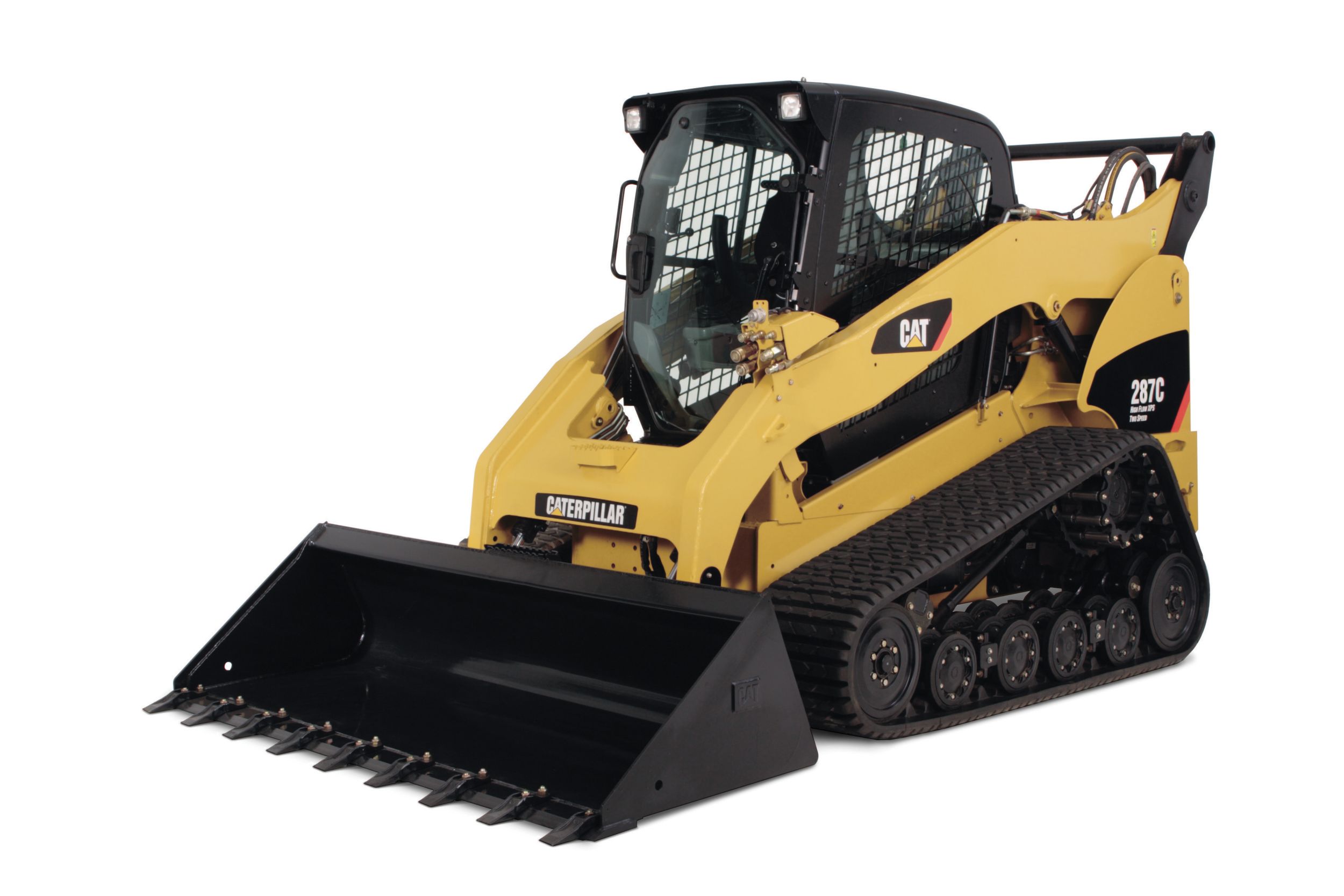

287C Series 2 Multi Terrain Loader

An industry-first sealed and pressurized cab, low ground pressure, increased rated operating capacity, higher horsepower and superior performance help you get more done and increase your bottom line.

Request a Quote

Download a Product Brochure

Product Specs

Engine

Engine Model: Cat® C3.4 DIT
Engine Model: Cat® C3.4 DIT
Net Power: 73 mm H2O
Net Power: 73.0 hp
Gross Power: 74 mm H2O
Gross Power: 74.0 hp
Gross Power - SAE J1995: 74 mm H2O
Gross Power SAE J1995: 74.0 hp
Net Power - SAE 1349: 73 mm H2O
Net Power SAE 1349: 73.0 hp
Displacement: 201 in³
Displacement: 201.0 in3
Bore: 3.7 in
Bore: 3.7 in
Stroke: 4.7 in
Stroke: 4.7 in

Operating Specifications

Rated Operating Capacities - 50% Tipping Load: 3800 lb
Rated Operating Capacities: 50% Tipping Load: 3800.0 lb
Rated Operating Capacities - 35% Tipping Load: 2709 lb
Rated Operating Capacities: 35% Tipping Load: 2709.0 lb
Ground Contact Area: 2542 in²
Ground Contact Area: 2542.0 in2
Ground Pressure: 3.9 psi
Ground Pressure: 3.9 psi
Tipping Load: 7743 lb
Tipping Load: 7743.0 lb
Breakout Force - Tilt Cylinder: 7308 lb
Breakout Force, Tilt Cylinder: 7308.0 lb
Rated Operating Capacity with Optional Counterweight: 4118 lb
Rated Operating Capacity with Optional Counterweight: 4118.0 lb

Power Train

Travel Speed Forward: 5.6 mile/h
Travel Speed Forward: 5.6 mph
Travel Speed Reverse: 5.6 mile/h
Travel Speed Reverse: 5.6 mph
Travel Speed Reverse - 2-Speed Option: 9.3 mile/h
Travel Speed Reverse - 2-Speed Option: 9.3 mph
Travel Speed Forward - 2-Speed Option: 9.3 mile/h
Travel Speed Forward - 2-Speed Option: 9.3 mph

Weights

Operating Weight: 9958 lb
Operating Weight: 9958.0 lb

Service Refill Capacities

Cooling System: 3.7 gal (US)
Cooling System: 3.7 gal
Engine Crankcase: 2.6 gal (US)
Engine Crankcase: 2.6 gal
Fuel Tank: 26 gal (US)
Fuel Tank: 26.0 gal
Hydraulic System: 15 gal (US)
Hydraulic System: 15.0 gal
Hydraulic Tank: 11 gal (US)
Hydraulic Tank: 11.0 gal

Dimensions

Length - Track on Ground: 71.2 in
Length of Track on Ground: 71.2 in
Overall Length - Track: 90 in
Overall Length of Track: 90.0 in.
Length - With Bucket on Ground: 145.4 in
Length w/Bucket on Ground: 145.4 in
Length - Without Bucket: 117.2 in
Length w/o Bucket: 117.2 in
Height - Top of Cab: 83.2 in
Height to Top of Cab: 83.2 in
Vehicle Width: 78 in
Vehicle Width: 78.0 in
Maximum Overall Height: 160.4 in
Max. Overall Height: 160.4 in
Bucket Pin Height - Maximum Lift: 127.3 in
Bucket Pin Height at Max. Lift: 127.3 in
Bucket Pin Height - Carry Position: 7.8 in
Bucket Pin Height at Carry Pos.: 7.8 in
Reach at Maximum Lift/Dump: 30.9 in
Reach at Max. Lift/Dump: 30.9 in
Clearance at Maximum Lift and Dump: 96.5 in
Clearance at Max. Lift/Dump: 96.5 in
Ground Clearance: 8.8 in
Ground Clearance: 8.8 in
Departure Angle: 42°
Departure Angle: 42°
Maximum Dump Angle: 50°
Maximum Dump Angle: 50°
Turn Radius from Center - Rear: 64 in
Turn Radius from Ctr - Rear: 64.0 in
Turn Radius from Center - Coupler: 58.5 in
Turn Radius from Ctr - Coupler: 58.5 in
Turn Radius from Center - Bucket: 91.7 in
Turn Radius from Ctr - Bucket: 91.7 in
Maximum Reach - With Arms Parallel: 50.6 in
Max. Reach w/Arms Parallel: 50.6 in
Rack Back Angle - Maximum Height: 85°
Rack Back Angle at Max Height: 85°
Bucket Pin Reach - Maximum Lift: 14.7 in
Bucket Pin Reach at Max Lift: 14.7 in

Cab

ROPS: SAE J1040 MAY94, ISO 3471:1994
ROPS: SAE J1040 MAY94, ISO 3471:1994
FOPS: SAE J1043 SEPT87, ISO 3449:1992 Level I
FOPS: SAE J1043 SEPT87, ISO 3449:1992 Level I
FOPS Level II: SAE J231 JAN81, ISO 3449:1992 Level II
FOPS Level II: SAE J231 JAN81, ISO 3449:1992 Level II

Hydraulic System

Hydraulic Flow (1): Standard
Hydraulic Flow (2): High Flow XPS
Hydraulic Flow: Standard
Hydraulic Flow: High Flow XPS
Loader Hydraulic Pressure: 3335 psi
Loader Hydraulic Pressure: 3335.0 psi
Maximum Loader Hydraulic Pressure: 4061 psi
Max. Loader Hydraulic Pressure: 4061.0 psi
Loader Hydraulic Flow: 22 gal/min
Loader Hydraulic Flow: 22.0 gal/min
Maximum Loader Hydraulic Flow: 33 gal/min
Max. Loader Hydraulic Flow: 33.0 gal/min
Hydraulic Power: 42.8 mm H2O
Hydraulic Power: 42.8 hp

Standard Equipment

Electrical
- 12 volt Electrical System
- 90 ampere Alternator
- Ignition Key Start/Stop Switch
- Lights: Gauge backlighting, two rear tail lights, two rear halogen working lights, two adjustable front halogen lights, dome light.
- Backup Alarm
- Heavy Duty Battery, 880 CCA
Operator Environment
- Gauges: Fuel level, hour meter
- Operator Warning System Indicators: Air filter restriction, alternator output, armrest raised/operator out of seat, engine coolant temperature, engine oil pressure, glow plug activation, hydraulic filter restriction, hydraulic oil temperature, parking bra
- Vinyl seat
- Fold-in Ergonomic Contoured Armrest
- Control Interlock System, when operator leaves seat or armrest raised: Hydraulic system disables, hydrostatic transmission disables, parking brake engages.
- ROPS Cab, Open, Tilt Up
- FOPS, Level I
- Top and Rear Windows
- Headliner, Deluxe
- Floor Mat
- Interior Rear View Mirror
- 12 volt Electric Socket
- Horn
Power Train
- Cat C3.4 DIT Diesel Engine Meeting Tier 4 Interim/Stage IIIB Emission Requirements
- Air Cleaner, Dual Element, Radial Seal
- SOSSM Sampling Valve, Hydraulic Oil
- Filters, Spin-on, Hydraulic
- Filters, Bayonet-type, Fuel and Water Separator
- Tilt Up Radiator/Hydraulic Oil Cooler
- Spring Applied, Hydraulically Released, Wet Multi Disc Parking Brake
- Hydrostatic Transmission
Other
- Engine Enclosure, Lockable
- Extended Life Antifreeze, -37° C (-34° F)
- Machine Tie Down Points (4)
- Support, Lift Arm
- Hydraulic Oil Level Sight Gauge
- Radiator Coolant Level Sight Gauge
- Radiator, Expansion Bottle
- Cat ToughGuard^™ Hose
- Auxiliary, Hydraulics, Continuous Flow
- Heavy Duty, Flat Faced Quick Disconnects
- Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
- Electrical Outlet, Beacon
- Belly Pan Cleanout
Mandatory Equipment
- Hydraulics, Standard or High Flow XPS
- Quick Coupler, Mechanical or Hydraulic
- Seat Belt, 50 mm (2 in) or 75 mm (3 in)
- Comfort Package (must select one of the following):
- Open ROPS (C1): Suspension Seat (no heater or door)
- Enclosed ROPS with Heat (C2): Cup Holder, Radio Ready, Seat (choice of Suspension or Air Ride), Heater and Defroster, Side Windows, Door (either Glass or Polycarbonate)
- Enclosed ROPS with A/C (C3): Features of C2 Package plus Air Conditioner
- Performance Package (must select one of the following):
- Performance Package 1: Dual Level Suspension Undercarriage, Two Speed, Steel Idler Wheels
- Performance Package 2: Dual Level Suspension Undercarriage, Two Speed, Steel Idler Wheels, Self Level
- Performance Package 3: Dual Level Suspension Undercarriage, Two Speed, Steel Idler Wheels, Self Level, Advanced Machine Information and Control System (AMICS)
