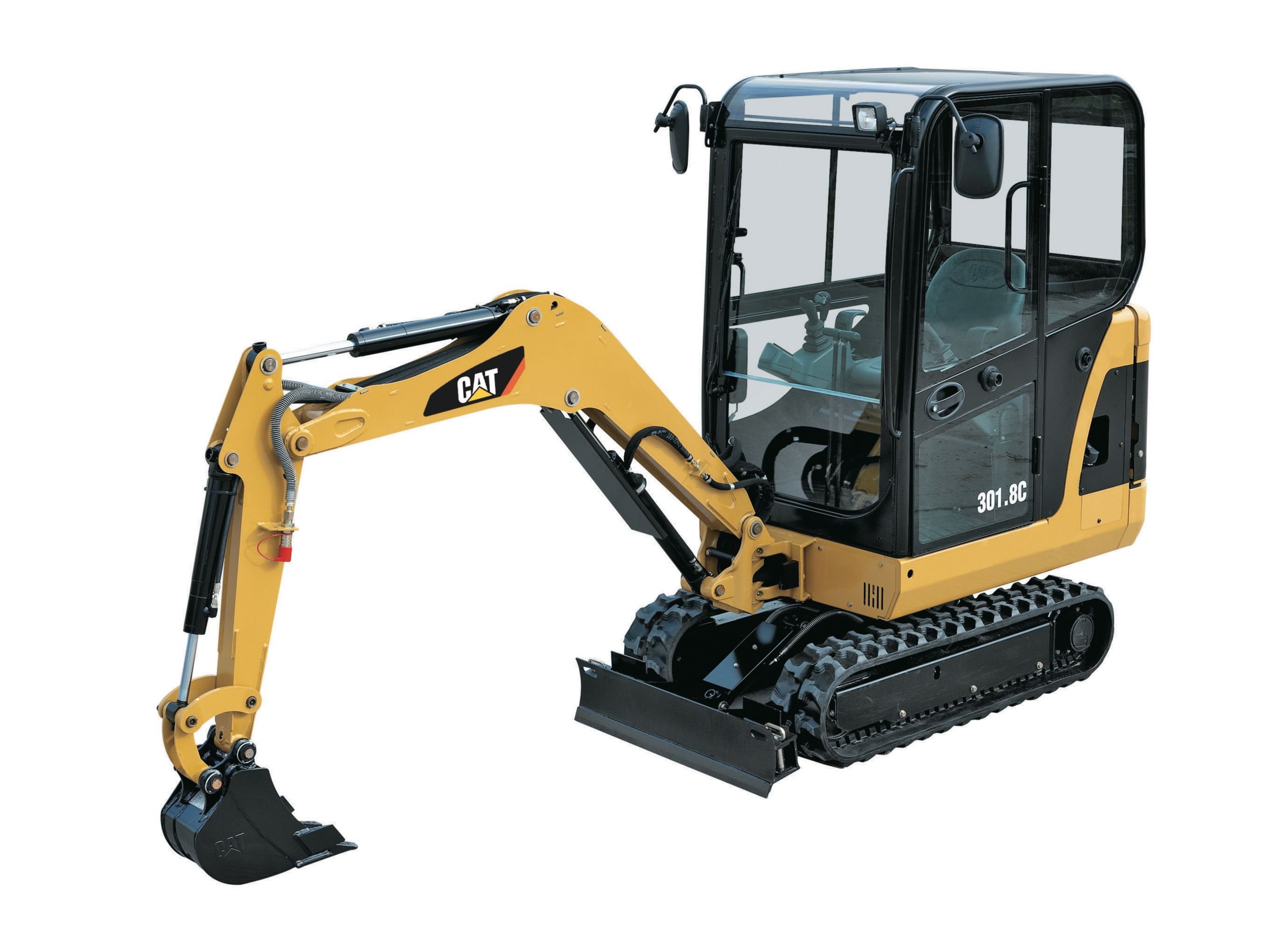

301.6C Mini Hydraulic Excavators
Engineered Durability The heavy-duty structures and clean lines of the Cat 301.6C and 301.8C ensure long life and reduce maintenance costs in tough, demanding applications.
Product Specs
Engine
- Engine Model
- Mitsubishi L3E NA Diesel
- Engine Model
- Mitsubishi L3E NA Diesel
- Net Power
- 18.1 mm H2O
- Net Power
- 18.1 hp
- Gross Power
- 19 mm H2O
- Gross Power
- 19.0 hp
Weights
- Operating Weight
- 3549 lb
- Operating weight
- 3549.0 lb
- Operating Weight - With Cab
- 3792 lb
Dimensions
- Maximum Digging Depth - Standard Stick
- 6.8 ft
- Maximum Reach - Ground Level - Standard Stick
- 11.8 ft
- Length - Center of Rollers
- 11.84 ft
- Shipping Height
- 7.19 ft
- Shipping Length
- 12.1 ft
- Transport Width
- 3.22 ft
- Height - Over Cab
- 7.19 ft
- Length to Center of Rollers
- 11.84 ft
- Maximum Cutting Height - Long Stick
- 11.35 ft
- Maximum Cutting Height - Standard Stick
- 10.99 ft
- Maximum Digging Depth - Long Stick
- 7.61 ft
- Maximum Dump Height - Long Stick
- 8.1 ft
- Maximum Dump Height - Standard Stick
- 7.7 ft
- Maximum Horizontal Reach - Long Stick
- 12.47 ft
- Maximum Horizontal Reach - Standard Stick
- 11.84 ft
- Maximum Vertical Dig Depth - Long Stick
- 5.9 ft
- Maximum Vertical Dig Depth - Standard Stick
- 5.3 ft
- Shipping Height
- 7.19 ft
- Shipping length
- 12.1 ft
- Swing Radius - Rear
- 3.58 ft
- Track Gauge
- 2.46 ft
- Track Shoe Width
- 0.75 ft
- Transport Width
- 3.22 ft
- Width - Over Track
- 3.22 ft
Engine Dimensions
- Bore
- 3 in
- Bore
- 3.0 in
- Stroke
- 2.8 in
- Stroke
- 2.8 in
- Displacement
- 58.1 in³
- Displacement
- 58.1 in3
Travel System
- Gradeability - Maximum - High
- 30 °
- Travel Speed - High
- 2.8 mile/h
- Travel Speed - Low
- 1.25 mile/h
- Max traction force - high speed
- 1574.0 lb
- Max traction force - low speed
- 3372.0 lb
- Maximum Traction Force - High Speed
- 1574 lb
- Maximum Traction Force - Low Speed
- 3372 lb
Hydraulic System
- Operating Pressure - Equipment
- 2988.0 psi
- Operating Pressure - Equipment
- 2988 psi
- Digging Force - Stick - Standard
- 2225.61 lb
- Digging Force - Stick - Long
- 1978.32 lb
- Digging force - stick (standard)
- 2226.0 lb
- Digging force - Stick, long
- 1978.0 lb
- Digging Force - Bucket
- 3462 lb
- Digging force - bucket
- 3462.0 lb
- Operating Pressure - Travel
- 2988 psi
- Operating Pressure - Travel
- 2988.0 psi
- Operating Pressure - Swing
- 2524 psi
- Operating Pressure - Swing
- 2524.0 psi
- Auxiliary Circuits - Primary - At 174 bar
- 9 gal/min
- Auxiliary Circuits - Secondary - At 174 bar
- 3.85 gal/min
- Pump - Gear (Dual) (Swing, Pilot)
- 3.85 gal/min
- Pump - Piston (Tandem)
- 5.25 gal/min
Swing System
- Machine Swing Speed
- 10.5 r/min
- Machine swing speed
- 10.5 RPM
- Boom Swing - Left - Without Stop
- 90 °
- Boom swing - left (without stop)
- 90.0 Degrees
- Boom Swing - Left - With Stop
- 54 °
- Boom swing - left (with stop)
- 54.0 Degrees
- Boom Swing - Right
- 50 °
- Boom Swing - right
- 50.0 Degrees
Sound Levels
- Canopy
- 83 dB(A)
- Cab
- 83 dB(A)
Electrical System
- Type
- 12-volt system, 500 CCA, 35 amp/h maintenance free battery
Blade
- Width
- 38.6 in
- Width
- 38.6 in
- Height
- 8.9 in
- Dig Depth
- 9.1 in
- Lift Height
- 7.1 in
Service Refill Capacities
- Cooling System
- 1.06 gal (US)
- Cooling system
- 1.06 gal
- Engine Oil
- 1.08 gal (US)
- Engine oil
- 1.08 gal
- Hydraulic Tank
- 6.3 gal (US)
- Hydraulic tank
- 6.3 gal
- Fuel Tank
- 5.8 gal (US)
- Fuel tank
- 5.8 gal
- Hydraulic System
- 9.8 gal (US)
- Hydraulic system
- 9.8 gal
MSC Comments
- MSC Spec Date
- 8/05
