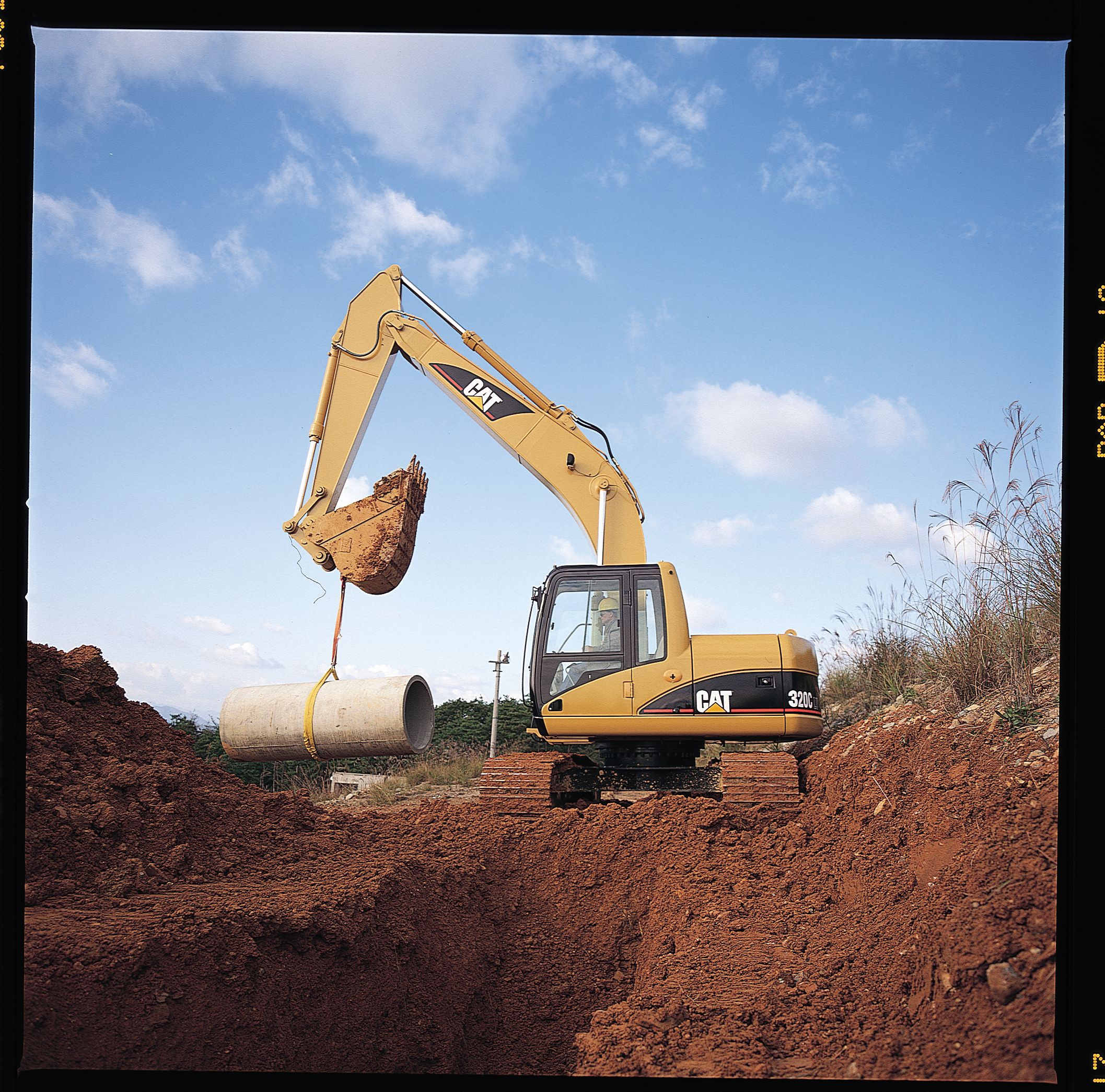

320C L Utility Hydraulic Excavator
The 320C Utility excavator maintains the C Series characteristics and offers the same level of operating performance as the 320C standard excavator with a smaller radius.
Product Specs
Engine
- Engine Model
- Cat® 3066T
- Engine Model
- Cat® 3066T
- Net Flywheel Power
- 138 hp
- Net Flywheel Power
- 138 mm H2O
- Net Power - ISO 9249
- 138 hp
- Net Power - ISO 9249
- 138 mm H2O
- Bore
- 4.02 in
- Bore
- 4.02 in
- Stroke
- 5.12 in
- Stroke
- 5.12 in
- Displacement
- 389 in3
- Displacement
- 389 in³
- Gross Power
- 143 hp
- Gross Power
- 143 mm H2O
- Net Power - EEC 80/1269
- 138 hp
- Net Power - SAE J1349
- 138 hp
- Net Power - EEC 80/1269
- 138 mm H2O
- Net Power - SAE J1349
- 138 mm H2O
Weights
- Operating Weight
- 50700 lb
- Operating Weight
- 50700 lb
- Operating Weight - Std. Undercarriage
- 49200 lb
- Operating Weight - Standard Undercarriage
- 49200 lb
Drive
- Maximum Drawbar Pull
- 44040 lb
- Maximum Drawbar Pull
- 44040 lb
- Maximum Travel Speed
- 3.4 mph
- Maximum Travel Speed
- 3.4 mile/h
Hydraulic System
- Main Implement System - Maximum Flow (2x)
- 54.2 gal/min
- Main Implement System - Maximum Flow (2x)
- 54.2 gal/min
- Max. Pressure - Equipment
- 4980 psi
- Maximum Pressure - Equipment
- 4980 psi
- Max. Pressure - Travel
- 4980 psi
- Maximum Pressure - Travel
- 4980 psi
- Maximum Pressure - Swing
- 3625 psi
- Max. Pressure - Swing
- 3625 psi
- Pilot System - Maximum Flow
- 10.8 gal/min
- Pilot System - Maximum Flow
- 10.8 gal/min
- Pilot System - Maximum Pressure
- 600 psi
- Pilot System - Maximum Pressure
- 600 psi
- Boom Cylinder - Bore
- 5 in
- Boom Cylinder - Bore
- 5 in
- Boom Cylinder - Stroke
- 50 in
- Boom Cylinder - Stroke
- 50 in
- B1 Family Bucket Cylinder - Bore
- 5 in
- B1 Family Bucket Cylinder - Bore
- 5 in
- B1 Family Bucket Cylinder - Stroke
- 41 in
- B1 Family Bucket Cylinder - Stroke
- 41 in
Service Refill Capacities
- Fuel Tank Capacity
- 75 gal
- Fuel Tank Capacity
- 75 gal (US)
- Cooling System
- 7.9 gal
- Cooling System
- 7.9 gal (US)
- Engine Oil
- 7.9 gal
- Engine Oil
- 7.9 gal (US)
- Swing Drive
- 2.1 gal
- Swing Drive
- 2.1 gal (US)
- Final Drive (each)
- 2.6 gal
- Final Drive - Each
- 2.6 gal (US)
- Hydraulic System (including tank)
- 63 gal
- Hydraulic System - Including Tank
- 63 gal (US)
Swing Mechanism
- Swing Speed
- 11.5 RPM
- Swing Speed
- 11.5 r/min
- Swing Torque
- 45611 lb ft
- Swing Torque
- 45611 lb/ft
Track
- Standard with Standard Undercarriage
- 24 in
- Standard with Long Undercarriage - Triple Grouser
- 32 in
- Optional (1)
- 24 in
- Optional
- 24 in
- Optional (2)
- 28 in
- Optional
- 28 in
- Optional (3)
- 32 in
Dimensions
- Transport Width
- 121.26 in
- Transport width
- 121.26 in
