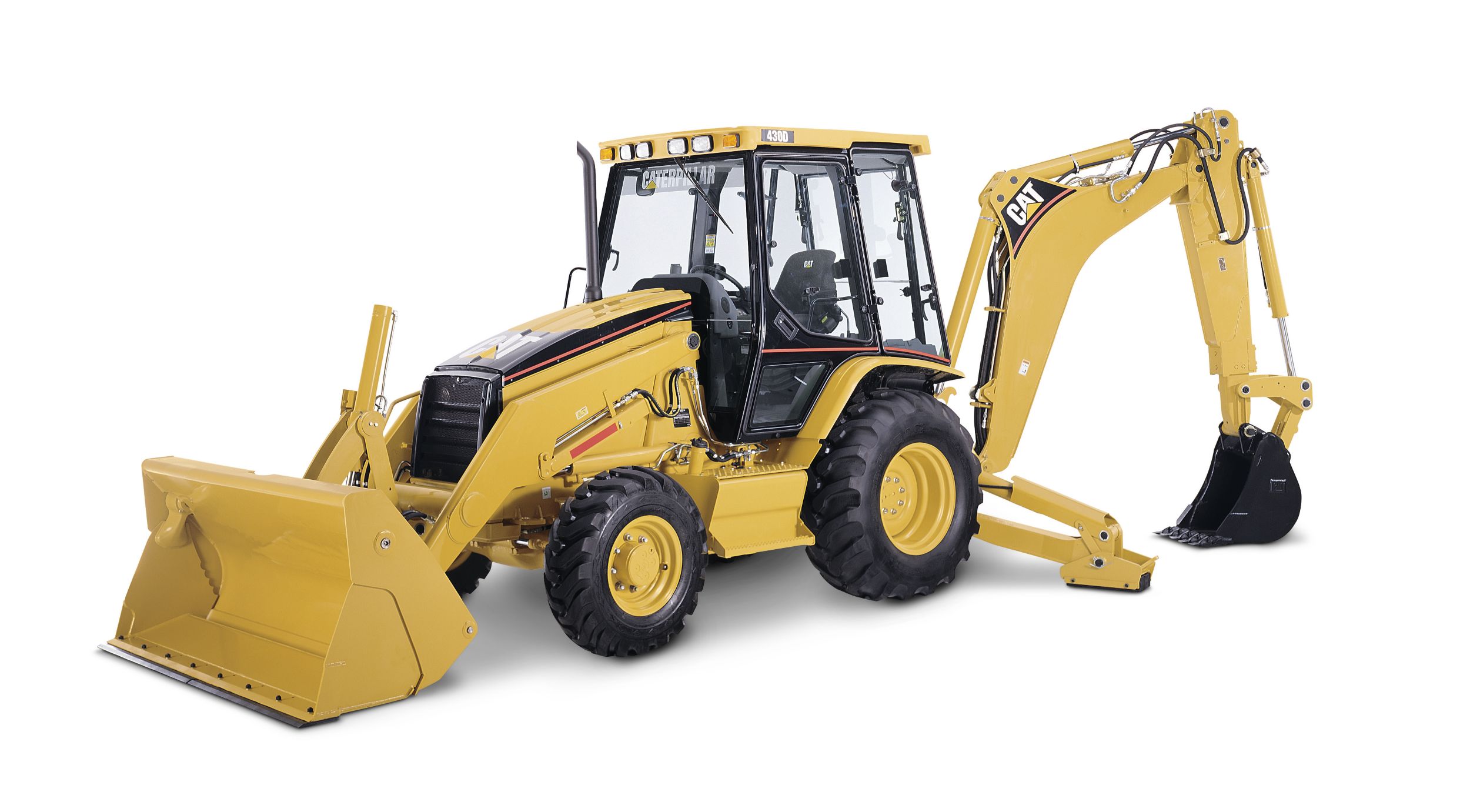

430D Backhoe Loader

Engine

Net Power - SAE J1349

94 hp

Net Power - SAE J1349

94 mm H2O

Engine Model (Standard)

Cat® 3054T

Engine Model - Standard

Cat® 3054T

Gross Power - SAE J1995

98 hp

Gross Power - SAE J1995

98 mm H2O

Net Power (Optional) - SAE J1349

93 mm H2O

Net Power (Optional) - ISO 9249

94 mm H2O

Net Power (Optional) - ISO 1585

94 mm H2O

Net Power (Optional) - EEC 80/1269

94 mm H2O

Net Power (Optional) - DIN 70020

98 PS

Bore

3.94 in

Bore

3.94 in

Stroke

5 in

Stroke

5 in

Displacement

243 in3

Displacement

243 in³

Net Torque Rise - 1,400 rpm - Standard

23.1 %

Net Peak Torque - 1400 rpm - Standard - SAE J1349

277 lb/ft

Net Peak Torque @ 1400 rpm - Standard - SAE J1349

277 lb ft

Backhoe

Dig Depth - Standard

15.3 ft

E-Stick Retracted (1)

16 ft

E-Stick Extended (1)

19.92 ft

Reach from Swing Pivot - Standard

19.58 ft

E-Stick Retracted (2)

20.25 ft

E-Stick Extended (2)

24 ft

Bucket Rotation

205 °

Bucket Dig Force - Standard

14732 lb

E-Stick Retracted (3)

14602 lb

E-Stick Extended (3)

14602 lb

Stick Dig Force - Standard

9448 lb

E-Stick Retracted (4)

8865 lb

E-Stick Extended (4)

6430 lb

Stick Lift at 2440 mm (8 ft) - Standard

14821 lb

E-Stick Retracted (5)

7855 lb

E-Stick Extended (5)

4064 lb

Loading Height - Standard

12.58 ft

Loading Reach - Standard

6 ft

Weights

Operating Weight - Maximum

21605 lb

Operating Weight - Maximum

21605 lb

Operating Weight - Nominal

16217 lb

Operating Weight - Nominal

16217 lb

Counterweights (Option 1)

320 lb

Counterweights - Option 1

320 lb

Loader

Bucket Capacity - General Purpose

1.31 yd3

Bucket Capacity - General Purpose

1.31 yd³

Bucket Width - General Purpose

95 ft

Bucket Width - General Purpose

95 ft

Dump Height at Maximum Angle - Single Tilt

8.58 ft

Dump Reach at Maximum Angle - Single Tilt

2.67 ft

Dig Depth - Single Tilt

6.5 in

Lift Capacity at Full Height - Single Tilt

6391 lb

Bucket Breakout Force - Single Tilt

10269 lb

Hydraulic System

Circuit Type

Load-sensing, closed-center

Circuit Type

Load-sensing, closed-center

Pump Capacity (@ 2200 rpm)

43 gal/min

Pump Capacity at 2,200 rpm

43 gal/min

System Pressure

3300 psi

System Pressure

3300 psi

Pump Type

Variable flow, axial piston

Pump Type

Variable flow, axial piston

Steering Type

Front wheel

Steering Type

Front wheel

Power Steering

Hydrostatic

Power Steering

Hydrostatic

2WD Cylinder - Bore

2.75 in

Stroke (1)

8.8 in

Rod Diameter (1)

1.75 in

4WD Cylinder - Bore

2.56 in

4WD Cylinder - Bore

2.56 in

Stroke

8.3 in

Stroke (2)

8.3 in

Rod Diameter (2)

1.42 in

Brake System

Inboard, oil-immersed

Brake System

Inboard, oil-immersed

Power Train

Power-Shuttle, Forward 1st

3.7 mph

Power Shuttle Transmission - Forward 1st

3.7 mile/h

Forward 2nd

6 mph

Forward - 2nd (1)

6 mile/h

Forward 3rd

12.3 mph

Forward - 3rd (1)

12.3 mile/h

Forward - 4th (1)

20.9 mile/h

Forward 4th

20.9 mph

Power Shuttle Transmission - Reverse 1st

3.7 mile/h

Power-Shuttle, Reverse 1st

3.7 mph

Reverse - 2nd (1)

6 mile/h

Reverse 2nd

6 mph

Reverse - 3rd (1)

12.3 mile/h

Reverse 3rd

12.3 mph

Reverse - 4th

20.9 mile/h

Reverse 4th

20.9 mph

Auto-Shift - Optional - Forward 1st

3.6 mile/h

Auto-Shift (opt), Forward 1st

3.6 mph

Forward - 2nd (2)

5.8 mile/h

Forward 2nd

5.8 mph

Forward - 3rd (2)

7.6 mile/h

Forward 3rd

7.6 mph

Forward - 4th (2)

11.8 mile/h

Forward 4th

11.8 mph

Forward - 5th

19.8 mile/h

Forward 5th

19.8 mph

Auto-Shift - Optional - Reverse 1st

3.6 mile/h

Auto-Shift (opt), Reverse 1st

3.6 mph

Reverse - 2nd (2)

7.6 mile/h

Reverse 2nd

7.6 mph

Reverse - 3rd (2)

14.3 mile/h

Reverse 3rd

14.3 mph

Operating Specifications - Backhoe

Turning Circle - Outside - Front Wheels

26.75 ft

Turning Circle - Outside, Widest Loading Bucket

35.42 ft

Axle Ratings

Front Axle (2WD) - Static

30319 lb

Dynamic (1)

6983 lb

Dynamic

6983 lb

Front Axle (4WD) - Static

27029 lb

Front Axle, 4WD, Static

27029 lb

Dynamic

6983 lb

Rear Axle - Static

61233 lb

Rear Axle, Static

61233 lb

Dynamic (2)

20418 lb

Dynamic

20418 lb

Service Refill

Cooling System - A/C

4.2 gal (US)

Cooling System - High-Ambient

4.4 gal (US)

Fuel Tank

34 gal (US)

Engine Oil - With Filter

2 gal (US)

Transmission - Torque Converter - Power Shuttle - 2WD

4 gal (US)

Transmission - Auto-Shift - 2WD

4 gal (US)

Transmission - Auto-Shift - AWD

4 gal (US)

Rear Axle

6.4 gal (US)

Front Axle (4WD)

2 gal (US)

Front Axle - Planetaries

0.2 gal (US)

Hydraulic System

21 gal (US)

Hydraulic Tank

10 gal (US)

Service Refills

Cooling System, A/C

4.2 gal

Cooling System, High-Ambient

4.4 gal

Fuel Tank

34 gal

Engine Oil w/Filter

2 gal

Rear Axle

6.4 gal

Front Axle, 4WD

2 gal

Front Axle, Planetaries

0.2 gal

Hydraulic System

21 gal

Hydraulic Tank

10 gal

Standards

Brakes

SAE J1473 October 1990/ISO 3450 1996

Brakes

SAE J1473 October 1990/ISO 3450 1996

Cab - ROPS

SAE J397/SAE J1040 May 1994/ISO 3741 1994

Cab - ROPS

SAE J397/SAE J1040 May 1994/ISO 3741 1994

Cab - Sound

ANSI/SAE J1166 Oct 98 is 78.5 dB(A)

Cab - Sound

ANSI/SAE J1166 Oct 98 is 78.5 dB(A)

Exterior Sound

SAE J88 April 95 is 73.0 dB(A)

Exterior Sound

SAE J88 April 95 is 73.0 dB(A)
