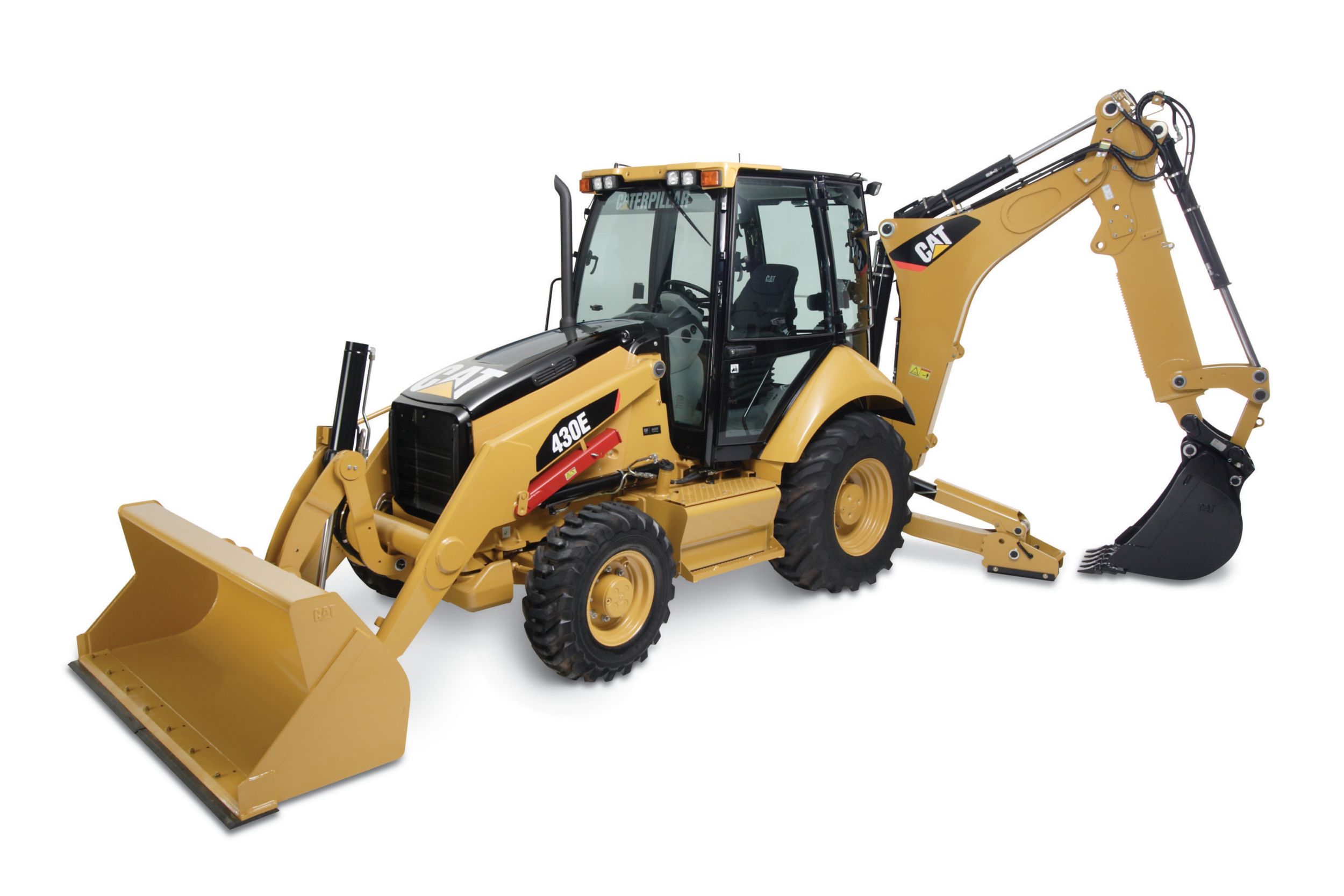

430E/430E IT Backhoe Loader

Engine

Net Power - SAE J1349

102.0 hp

Net Power - SAE J1349

102 mm H2O

Engine Model (Standard)

Cat® C4.4 ACERT® DIT

Engine Model - Standard

Cat® C4.4 ACERT® DIT

Gross Power - SAE J1995

111.0 hp

Net Power - ISO 9249

103.0 hp

Gross Power - SAE J1995

111 mm H2O

Net Power - ISO 9249

103 mm H2O

Gross Power - ISO 14396

110.0 hp

Net Power - EEC 80/1269

103.0 hp

Gross Power - ISO 14396

110 mm H2O

Net Power - EEC 80/1269

103 mm H2O

Bore

4.13 in

Bore

4.13 in

Stroke

5 in

Displacement

268 in³

Net Peak Power - 1,800 rpm - SAE J1349

103 mm H2O

Net Peak Power - 1,800 rpm - ISO 9249

105 mm H2O

Net Peak Power - 1,800 rpm - EEC 80/1269

105 mm H2O

Net Peak Power @ 1,800 rpm - ISO 9249

105.0 hp

Net Peak Power @ 1,800 rpm - SAE J1349

103.0 hp

Net Torque Rise - 1,400 rpm - Standard

43 %

Net Peak Torque @ 1400 rpm - Standard - SAE J1349

349.0 lb ft

Net Peak Torque - 1400 rpm - Standard - SAE J1349

349 lb/ft

Backhoe

Dig Depth - Standard

15.41 ft

E-Stick Retracted (1)

15.78 ft

E-Stick Extended (1)

19.52 ft

Reach from Swing Pivot - Standard

19.85 ft

E-Stick Retracted (2)

20.19 ft

E-Stick Extended (2)

23.78 ft

Bucket Rotation

205 °

Bucket Dig Force - Standard

15892 lb

E-Stick Retracted (3)

15680 lb

E-Stick Extended (3)

15680 lb

Stick Dig Force - Standard

9940 lb

E-Stick Retracted (4)

9730 lb

E-Stick Extended (4)

7197 lb

Stick Lift at 2440 mm (8 ft) - Standard

5992 lb

E-Stick Retracted (5)

6100 lb

E-Stick Extended (5)

4334 lb

Loading Height - Standard

12.98 ft

E-Stick Retracted

12.83 ft

E-Stick Retracted (6)

12.83 ft

E-Stick Extended

14.83 ft

E-Stick Extended (6)

14.83 ft

Loading Reach - Standard

5.82 ft

E-Stick Retracted

6.39 ft

E-Stick Retracted (7)

6.39 ft

E-Stick Extended

9.57 ft

E-Stick Extended (7)

9.57 ft

Weights

Operating Weight - Maximum

24251.0 lb

Operating Weight - Maximum

24251 lb

Operating Weight - Nominal

15708.0 lb

Operating Weight - Nominal

15708 lb

Cab, ROPS/FOPS

573.0 lb

Cab - ROPS/FOPS

573 lb

Auto-Shift Transmission

60 lb

Ride Control

55.0 lb

Ride Control

55 lb

Four Wheel Drive

342.0 lb

Four Wheel Drive

342 lb

Loader, IT w/QC

805.0 lb

Loader, IT with Quick Coupler

805 lb

Extendible Stick - No Weights

615 lb

Air Conditioning

86 lb

Counterweights (Option 1)

255.0 lb

Counterweights - Option 1

255 lb

Counterweights (Option 2)

510.0 lb

Counterweights - Option 2

510 lb

Counterweights (Option 3)

1075.0 lb

Counterweights - Option 3

1075 lb

Loader

Bucket Capacity - General Purpose

1.31 yd3

Bucket Capacity - General Purpose

1.31 yd³

Bucket Width - General Purpose

7.89 ft

Bucket Width - General Purpose

7.89 ft

Dump Height at Maximum Angle - Single Tilt

8.54 ft

Dump Height at Maximum Angle - IT with QC

8.33 ft

Dump Reach at Maximum Angle - Single Tilt

2.69 ft

Dig Depth - Single Tilt

4 in

Dump Reach at Maximum Angle - IT with QC

2.62 ft

Lift Capacity at Full Height - Single Tilt

6475 lb

Bucket Breakout Force - Single Tilt

10401 lb

Bucket Breakout Force - IT with QC

10672 lb

Dig Depth - IT with QC

6 in

Lift Capacity at Full Height - IT with QC

6971 lb

Hydraulic System

Circuit Type

Closed center, load sensing

Circuit Type

Closed center, load sensing

Pump Capacity (@ 2200 rpm)

43.0 gal/min

Pump Capacity at 2,200 rpm

43 gal/min

System Pressure - Backhoe

3611.0 psi

System Pressure - Backhoe

3611 psi

System Pressure - Loader

3307 psi

Pump Type

Variable-flow, axial piston

Steering Type

Front wheel

Steering Type

Front wheel

Power Steering

Hydrostatic, HMU

Power Steering

Hydrostatic, HMU

2WD Cylinder - Bore

2.6 in

Stroke

4.7 in

Stroke

4.7 in

Rod Diameter

1.4 in

Rod Diameter

1.4 in

4WD Cylinder - Bore

2.6 in

4WD Cylinder - Bore

2.6 in

Stroke

4.7 in

Rod Diameter

1.4 in

Brake System

Inboard, oil-immersed, multiple disc

Brake System

Inboard, oil-immersed, multiple disc

Power Train

Power-Shuttle, Forward 1st

3.7 mph

Power Shuttle Transmission - Forward 1st

3.7 mile/h

Forward 2nd

5.9 mph

Forward - 2nd

5.9 mile/h

Forward 3rd

12.0 mph

Forward - 3rd

12 mile/h

Forward 4th

25.0 mph

Forward - 4th (1)

25 mile/h

Power-Shuttle, Reverse 1st

3.7 mph

Power Shuttle Transmission - Reverse 1st

3.7 mile/h

Reverse 2nd

5.9 mph

Reverse - 2nd (1)

5.9 mile/h

Reverse 3rd

12.0 mph

Reverse - 3rd (1)

12 mile/h

Reverse 4th

25.0 mph

Reverse - 4th

25 mile/h

Auto-Shift (opt), Forward 1st

3.7 mph

Auto-Shift - Optional - Forward 1st

3.7 mile/h

Forward 2nd

5.9 mph

Forward 3rd

12.0 mph

Forward 4th

17.0 mph

Forward - 4th (2)

17 mile/h

Forward 5th

26.0 mph

Forward - 5th

26 mile/h

Auto-Shift (opt), Reverse 1st

3.7 mph

Auto-Shift - Optional - Reverse 1st

3.7 mile/h

Reverse 2nd

7.8 mph

Reverse - 2nd (2)

7.8 mile/h

Reverse 3rd

17.0 mph

Reverse - 3rd (2)

17 mile/h

Operating Specifications - Backhoe

Turning Circle - Outside - Front Wheels

26.84 ft

Turning Circle - Outside, Widest Loading Bucket

36 ft

Axle Ratings

Front Axle (2WD) - Static

50582 lb

Dynamic

20233.0 lb

Dynamic

20233 lb

Front Axle, 4WD, Static

50582.0 lb

Front Axle (4WD) - Static

50582 lb

Dynamic

20233.0 lb

Rear Axle, Static

50582.0 lb

Rear Axle - Static

50582 lb

Dynamic

20233.0 lb

Service Refills

Cooling System

5.4 gal

Fuel Tank

45.0 gal

Engine Oil w/Filter

2.0 gal

Transmission-Torque Converter, 4WD, Power Shuttle

4.9 gal

Rear Axle

4.4 gal

Rear Axle, Planetaries

0.4 gal

Front Axle, 4WD

2.9 gal

Front Axle, Planetaries

0.2 gal

Hydraulic System

25.1 gal

Hydraulic Tank

10.0 gal

Service Refill

Cooling System

5.4 gal (US)

Fuel Tank

45 gal (US)

Engine Oil - With Filter

2 gal (US)

Transmission - Torque Converter - Power Shuttle - 4WD

4.9 gal (US)

Rear Axle

4.4 gal (US)

Rear Axle - Planetaries

0.4 gal (US)

Front Axle (4WD)

2.9 gal (US)

Front Axle - Planetaries

0.2 gal (US)

Hydraulic System

25.1 gal (US)

Hydraulic Tank

10 gal (US)

Transmission - Torque Converter - Auto-Shift - 4WD

5 gal (US)

Standards

Brakes

SAE J/ISO 3450, ISO 3450 1996

Brakes

SAE J/ISO 3450, ISO 3450 1996

Cab - ROPS

SAE J1040 May 1994/ISO 3741 1994

Cab - ROPS

SAE J1040 May 1994/ISO 3741 1994

Cab - FOPS

SAE J/ISO 3449 APR98 LEVEL II and ISO 3449: 1992 LEVEL II

Cab - FOPS

SAE J/ISO 3449 APR98 LEVEL II and ISO 3449: 1992 LEVEL II

Cab - Sound

ANSI/SAE J1166 Oct 98 is 80 dB (A)

Cab - Sound

ANSI/SAE J1166 Oct 98 is 80 dB (A)

Exterior Sound

SAE J88 JUN86 is 76 dB (A)

Exterior Sound

SAE J88 JUN86 is 76 dB (A)
