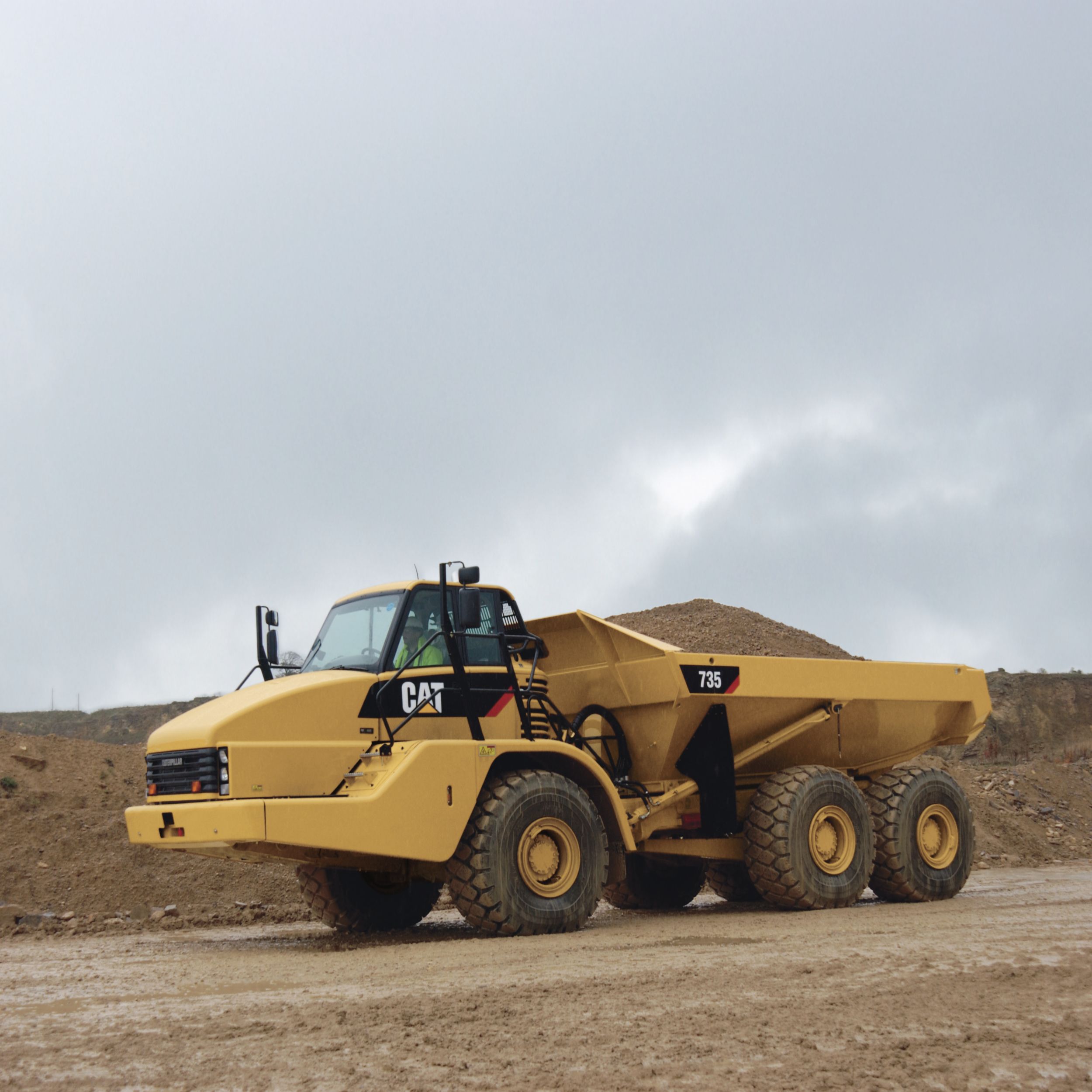

735 Articulated Truck
The 735 offers proven reliability and durability, high performance, low fuel consumption, operator comfort and low operating costs.
Product Specs
Engine
- Engine Model
- Cat® C15 ACERT™
- Engine Model
- Cat® C15 ACERT™
- Gross Power - SAE J1995
- 435 hp
- Gross Power - SAE J1995
- 435 mm H2O
- Net Power - SAE J1349
- 419 hp
- Net Power - SAE J1349
- 419 mm H2O
- Net Power - ISO 9249
- 424 hp
- Net Power - ISO 9249
- 424 mm H2O
- Net Power - EEC 80/1269
- 424 hp
- Net Power - EEC 80/1269
- 424 mm H2O
- Flywheel Power
- 385 hp
- Flywheel Power
- 385 mm H2O
- Bore
- 5.4 in
- Bore
- 5.4 in
- Stroke
- 6.75 in
- Stroke
- 6.75 in
- Displacement
- 926 in3
- Displacement
- 926 inÂł
Weights
- Rated Payload
- 36 ton (US)
Body Capacities
- Heaped SAE 2:1
- 25.8 yd3
- Heaped (SAE 2:1)
- 25.8 ydÂł
- Struck
- 19 yd3
- Struck
- 19 ydÂł
- Heaped SAE 1:1
- 32 ydÂł
Transmission
- Forward 1
- 5.15 mph
- Forward - 1
- 5.15 mile/h
- Forward 2
- 7.04 mph
- Forward - 2
- 7.04 mile/h
- Forward 3
- 9.55 mph
- Forward - 3
- 9.55 mile/h
- Forward 4
- 12.84 mph
- Forward - 4
- 12.84 mile/h
- Forward 5
- 17.41 mph
- Forward - 5
- 17.41 mile/h
- Forward 6
- 23.48 mph
- Forward - 6
- 23.48 mile/h
- Forward 7
- 31.85 mph
- Forward - 7
- 31.85 mile/h
- Reverse - 1
- 4.97 mile/h
- Reverse - 2
- 6.74 mile/h
Operating Weights
- Front Axle - Empty
- 41881 lb
- Center Axle - Empty
- 14406 lb
- Rear Axle - Empty
- 12919 lb
- Total - Empty
- 69206 lb
- Front Axle - Rated Load
- 7417 lb
- Center Axle - Rated Load
- 32337 lb
- Rear Axle - Rated Load
- 32337 lb
- Total - Rated Load
- 72091 lb
- Front Axle - Loaded
- 49298 lb
- Center Axle - Loaded
- 46743 lb
- Rear Axle - Loaded
- 45256 lb
- Total - Loaded
- 141297 lb
Body Plate Thickness
- Front
- 0.31 in
- Scow
- 0.55 in
- Side
- 0.47 in
- Base
- 0.55 in
Service Refill Capacities
- Fuel Tank
- 148 gal
- Fuel Tank
- 148 gal (US)
- Cooling System
- 25.1 gal
- Cooling System
- 25.1 gal (US)
- Hydraulic System
- 86.6 gal (US)
- Engine Crankcase
- 10.6 gal (US)
- Transmission
- 22.5 gal (US)
- Final Drives/Differential
- 21.1 gal (US)
- Output Transfer Gear Box
- 6.3 gal (US)
Sound Levels
- Interior Cab
- 79 dB(A)
Body Hoist
- Raise Time
- 11 s
- Lower Time
- 7 s
Standards
- Brakes
- SAE J/ISO 3450-1998
- Brakes
- SAE J/ISO 3450-1998
- Cab - FOPS
- SAE J231 JAN81 and ISO 3449-1992 Level II
- Cab - ROPS
- SAE J1040 May 1994 and ISO 3471-1994
- Steering
- ISO 5010 1992E
- Steering
- ISO 5010 1992E
Dimensions
- Dump Clearance
- 2 ft
- Wheel Base Between Back Tires
- 6.4 ft
- Dump Clearance
- 2 ft
Standard Equipment
-
- Rops/fops Cab, With Full Instrumentation, Including:
-
- Instrument cluster display module.
- Indicator lamps: left turn, secondary steering, primary steering loss, front and rear brake temp (735/740 and 740 Ejector only), brake oil pressure, action lamp, transmission fault, park brake, charging system status, differential lock, body not in float,
- Gauges: engine oil pressure, engine coolant temperature, torque converter oil temperature, fuel level, and fuel tank level gauge
- Meters: service hour meter, speedometer, tachometer
Attachments
-
- Tailgate:
-
- Scissor-type
