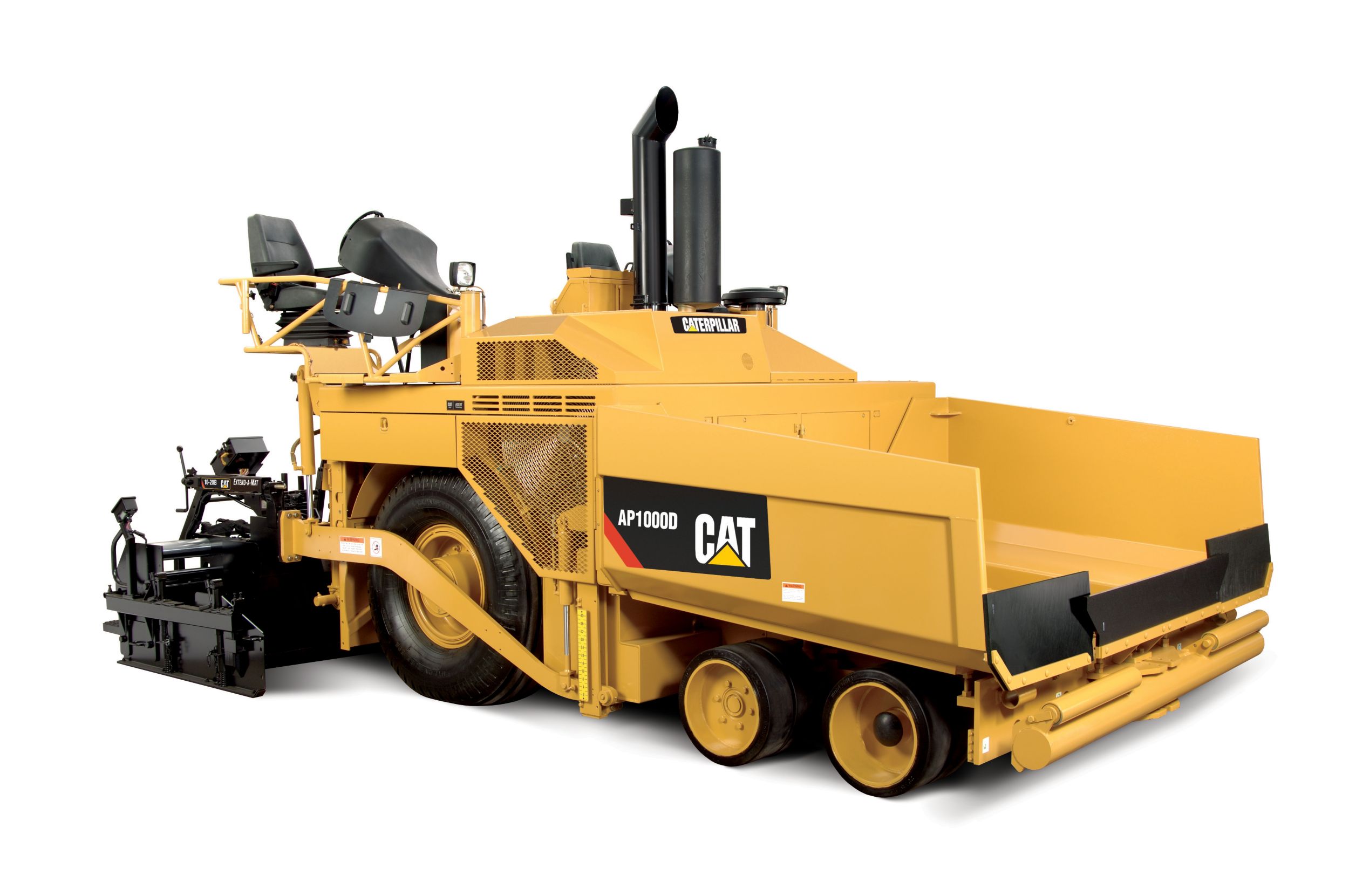

AP-1000D Asphalt Paver

Based upon the industry-proven reputation of the Caterpillar® AP-1000B Asphalt Pavers, the AP-1000D establishes new standards for productivity and reliability in the asphalt paver industry.

Request a Quote

Product Specs

Engine

Gross Power
224 mm H2O
Gross Power
224.0 hp
Flywheel Power
223 mm H2O
Flywheel Power
223.0 hp
Net Power - EEC 80/1269
223 mm H2O
Net Power (EEC 80/1269)
223.0 hp
Bore
4.33 in
Bore
4.33 in.
Stroke
5 in
Stroke
5.0 in.
Displacement
441.7 in³
Displacement
441.7 in3
Engine Model
Caterpillar C7 with ACERT Technology
Engine Model
Caterpillar C7 with ACERT Technology

Weights

Operating Weight
39320 lb
Operating Weight
39320.0 lb
Tractor Weight
32470 lb
Tractor Weight
32470.0 lb

Operating Specifications

Maximum Speed
300 ft/min
Maximum Capacity
215 ft³
Maximum Capacity
215.0 ft3
Paving Width Minimum
8 ft
Paving Width Minimum
8.0 ft
Paving Width Maximum
24.1 ft
Paving Width Maximum
24.1 ft
Paving Width
10 ft

Dimensions

Wheel Base
8.3 ft
Wheelbase
8.3 ft
Length - Ground
23.75 ft

Fuel Tank

Fuel Tank Capacity
118 gal (US)
Fuel Tank Capacity
118.0 gal

Drive System

Maximum Travel Speed
14 mile/h
Maximum Travel Speed
14.0 mph
Maximum Paving Speed
300 ft/min
Maximum Paving Speed
300.0 ft/min

Hopper

Truck Entry Width
10.5 ft
Truck Entry Width
10.5 ft

Attachments

  • Tractor Options
    • Auger and Mainframe Extensions
    • Oscillating Push Rollers
    • Truck Hitch
    • Generator
    • Auxiliary Power Panel
    • Ventilation System
    • Decelerator Pedals
    • Sonic Feeder Sensor or Proportional Paddle Sensor
    • Steering Guide
    • Warning Beacon
    • Umbrella
    • Uptime Kit
    • Washdown System
    • Front Wheel Assist
  • Controls And Grade References
    • Automatic Grade and Slope Control
    • Non-Contacting Sonic Grade Sensor
    • Contacting Grade Sensor
    • Outboard Leveler, 9.15 m (30') and 12.2 m (40')
    • Inboard Leveler
    • Mobile Stringline
    • Fore ‘N Aft Leveler
    • Sonic Averaging Beam
    • Rigid Ski, 9.15 m (30') and 12.2 m (40')
  • Screed Choices
    • Extend-A-Mat™ 10-20B (electric or diesel)
    • Extend-A-Mat 10-20WB (diesel only)
    • AS2301 (electric or diesel)
