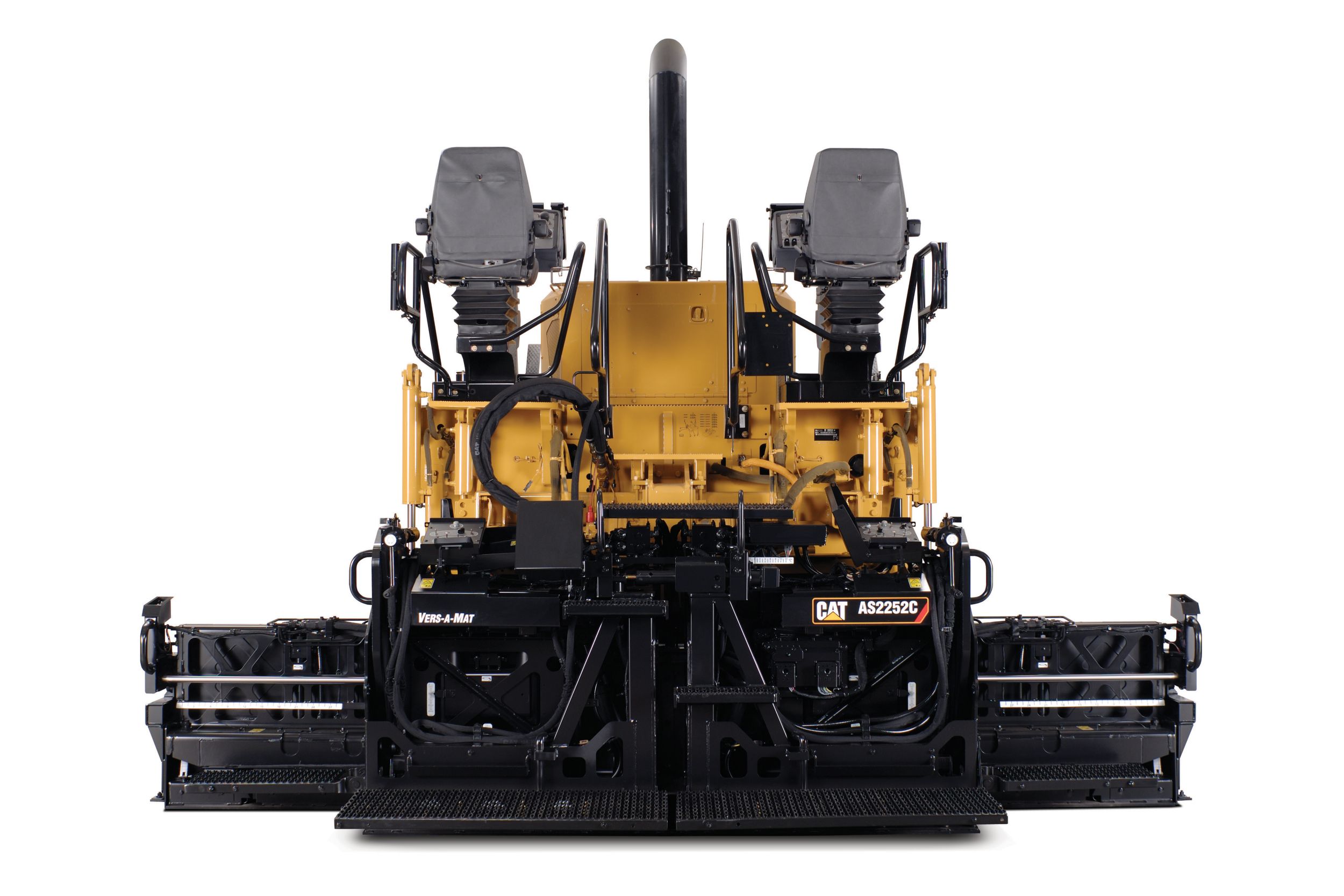

AS2252C Screed
The AS2252C is a production-sized screed that is well suited for commercial applications. The AS2252C screed offers narrow, front-mounted extenders to simplify paving width adjustment and minimize hand work.
Product Specs
Weights
- Weight with Electric Heat
- 6000.0 lb
- Weight - With Electric Heat
- 6000 lb
Operating Specifications
- Standard Paving Width Range
- 2.5-4.44 m (8.2-14.5 ft)
- Maximum Paving Width
- 20.3 ft
- Maximum Paving Width
- 20.3 ft
- Crown Adjustment
- +10% to -3%
- Heating System
- Electric
- Maximum Vibrator Frequency
- 3000 vpm
- Minimum Paving Width
- 6.17 ft
- Crown Adjustment
- +10% to -3%
- Maximum Vibrator Frequency
- 3000 vpm
- Minimum Paving Width
- 6.17 ft
Specifications
- Extender Mounting
- Front-mounted
- Screed Type
- Vibratory
- Extender Mounting
- Front-mounted
Dimensions
- Height
- 4.6 ft
- Length - Front to Back, Endgates Attached
- 6.75 ft
- Length - Front to Back, Endgates Removed
- 4.33 ft
- Minimum Width - Endgates Attached
- 9 ft
- Minimum Width - Endgates Removed
- 8.9 ft
- Screed Plates Thickness
- 0.5 in
- Screed Plates Width, Front to Back, Extenders
- 9 in
- Screed Plates Width, Front to Back, Main Screed
- 18 in
- Height
- 4.6 ft
- Screed Plates Thickness
- 0.5 in
