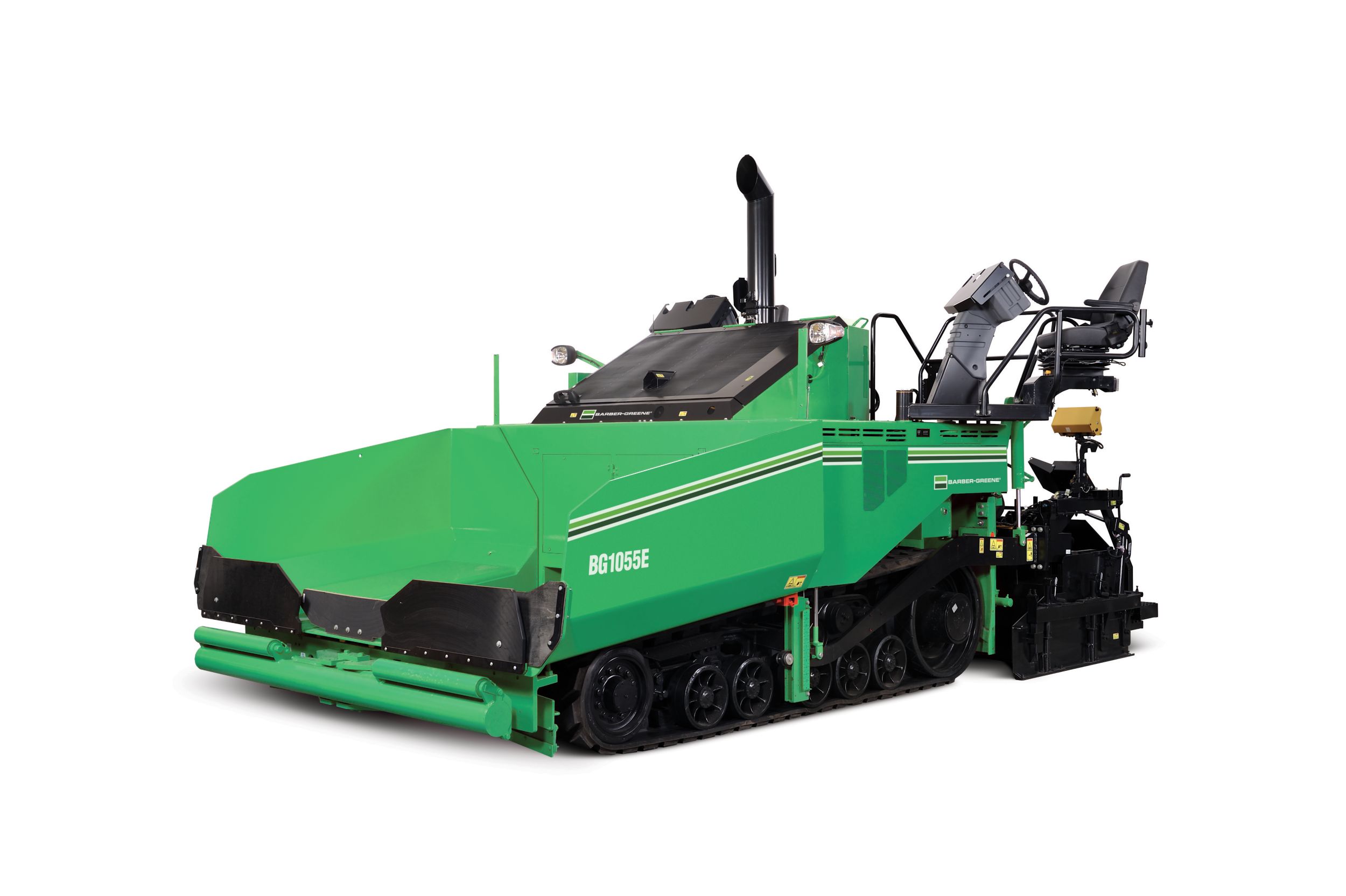

BG1055E Paver

The BG1055E is built upon the proven platform of the BG2455D, creating a new standard for productivity and reliability in the asphalt paving industry. The BG1055E Paver offers cleaner power, fuel efficiency and high performance in a mobile and versatile platform.

Request a Quote

Product Specs

Engine

Gross Power
225 mm H2O
Gross Power
225.0 hp
Engine Model
Cat C7.1 with ACERT
Engine Model
Cat C7.1 with ACERT

Operating Specifications

Standard Paving Width
3.05-5.94 m (10-19.5 ft)
Standard Paving Width
3.05-5.94 m (10-19.5 ft)
Paving Width Minimum
8 ft
Paving Width Minimum
8.0 ft
Paving Width Maximum
26.33 ft
Paving Width Maximum
26.33 ft
Hopper Capacity
251 ft³
Maximum Travel Speed
9 mile/h
Hopper Capacity
251.0 ft3
Maximum Travel Speed
9.0 mph
Truck Dump Height
23 in
Truck Entry Width
11.58 ft

Weights

Maximum Operating Weight
44558 lb
Maximum Operating Weight
44558.0 lb

Service Refill Capacities

Fuel Tank Capacity
92 gal (US)
Fuel Tank Capacity
92.0 gal

Dimensions

Maximum Height
12.25 ft
Length - With Push Roller and Largest Screed
21.66 ft
Maximum Height
12.25 ft
Tractor Operating Width
11.83 ft
Transport Height
9.42 ft
Transport Width - Hoppers Raised - Screed End Gates Attached
10.66 ft
Transport Width - Hoppers Raised - Screed End Gates Removed
9.83 ft

Attachments

  • Tractor Options
    • Auger and Mainframe Extensions
    • Oscillating Push Rollers
    • Truck Hitch
    • Generator
    • Auxiliary Power Panel
    • Ventilation System
    • Decelerator pedals
    • Sonic Feeder Sensor or Proportional Paddle Sensor
    • Steering Guide
    • Warning Beacon
    • Umbrella
    • Uptime Kit
    • Washdown System
  • Controls And Grade References
    • Automatic Grade and Slope Control
    • Non-Contacting Sonic Grade Sensor
    • Contacting Grade Sensor
    • Outboard Leveler, 9.15 m (30') and 12.2 m (40')
    • Inboard Leveler
    • Mobile Stringline
    • Fore 'N Aft Leveler
    • Sonic Averaging Beam
    • Rigid Ski, 9.15 m (30') and 12.2 m (40')
  • Screed Choices
    • Extend-A-Mat™ 10-20B (electric or diesel)
    • Exend-A-Mat™ 10-20WB (diesel only)
    • AS-2301 (electric or diesel)
    • Pavemaster 10B (diesel only)
