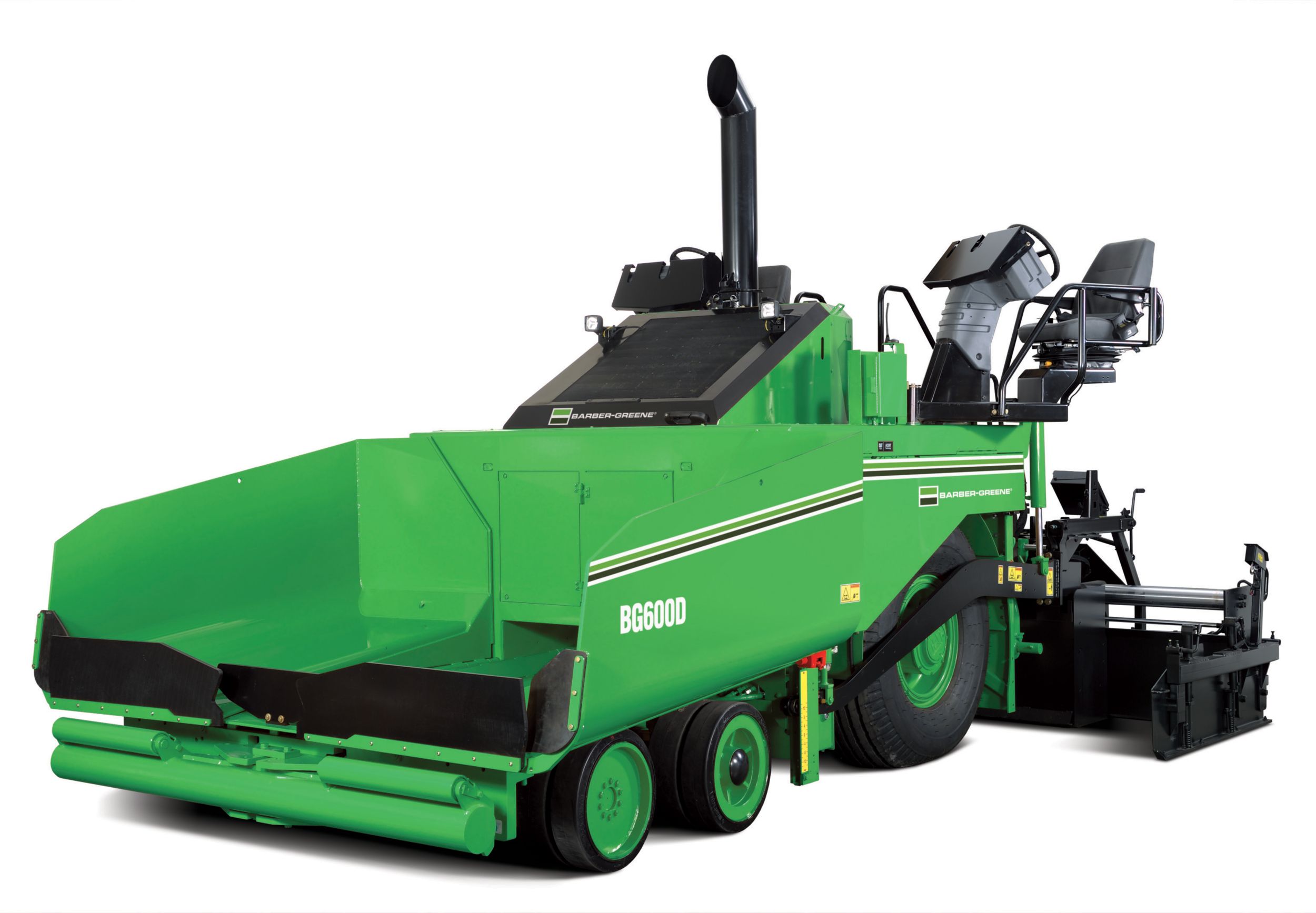

BG600D Asphalt Paver
High performance and operator comfort make the BG600D the perfect choice. The BG600D excels in a wide range of applications from routine commercial jobs to demanding highway operations.
Product Specs
Engine
- Gross Power
- 173.5 hp
- Gross Power
- 173.5 mm H2O
- Flywheel Power
- 152.3 hp
- Flywheel Power
- 152.3 mm H2O
- Net Power (EEC 80/1269)
- 163.5 hp
- Net Power - EEC 80/1269
- 163.5 mm H2O
- Bore
- 3.94 in.
- Bore
- 3.94 in
- Stroke
- 5.0 in.
- Stroke
- 5 in
- Displacement
- 439.0 in3
- Displacement
- 439 in³
- Engine Model
- Cat C6.6 Engine with ACERT Technology
- Engine Model
- Cat C6.6 Engine with ACERT Technology
Operating Specifications
- Standard Paving Width
- 2.55-5.0 m (8.17-16.40 ft)
- Standard Paving Width
- 2.55-5.0 m (8.17-16.40 ft)
- Maximum Speed
- 11.2 ft/min
- Hopper Capacity
- 230.0 ft3/Sh Ton
- Hopper Capacity
- 230 ft³/Sh Ton
- Paving Width Maximum
- 20.17 ft
- Paving Width Maximum
- 20.17 ft
- Paving Width
- 8 ft
Weights
- Maximum Operating Weight
- 40124.0 lb
- Maximum Operating Weight
- 40124 lb
- Tractor Weight
- 31299.0 lb
- Tractor Weight
- 31299 lb
Dimensions
- Wheelbase
- 8.17 ft
- Wheel Base
- 8.17 ft
Fuel Tank
- Fuel Tank Capacity
- 77.0 gal
- Fuel Tank Capacity
- 77 gal (US)
Drive System
- Maximum Travel Speed
- 11.2 mph
- Maximum Travel Speed
- 11.2 mile/h
- Maximum Paving Speed
- 200.0 ft/min
- Maximum Paving Speed
- 200 ft/min
Hopper
- Truck Entry Width
- 10.5 ft
- Truck Entry Width
- 10.5 ft
Attachments
-
- Tractor Options
-
- All-Wheel Drive
- Auger and Mainframe Extensions
- Auxiliary Power Panel
- Decelerator Pedals
- Front-Wheel Assist
- Generator (Belt or Hydraulic Driven)
- Oscillating Push Rollers
- Power Folding Hopper Apron
- Paddle Feeder Sensor (Proportional)
- Sonic Feeder Sensor (Proportional)
- Steering Guide
- Tires (Sand-Rib or Radial)
- Truck Hitch
- Umbrella
- Uptime Kit
- Ventilation System
- Warning Beacon
- Washdown System (Including Ecological Version)
-
- Controls And Grade References
-
- Automatic Grade and Slope Control
- Non-Contacting Sonic Grade Sensor
- Contacting Grade Sensor
- Outboard Leveler, 9.15 m (30') and 12.2 m (40')
- Inboard Leveler
- Mobile Stringline
- Fore ‘N Aft Leveler
- Sonic Averaging Beam
- Rigid Ski, 9.15 m (30') and 12.2 m (40')
