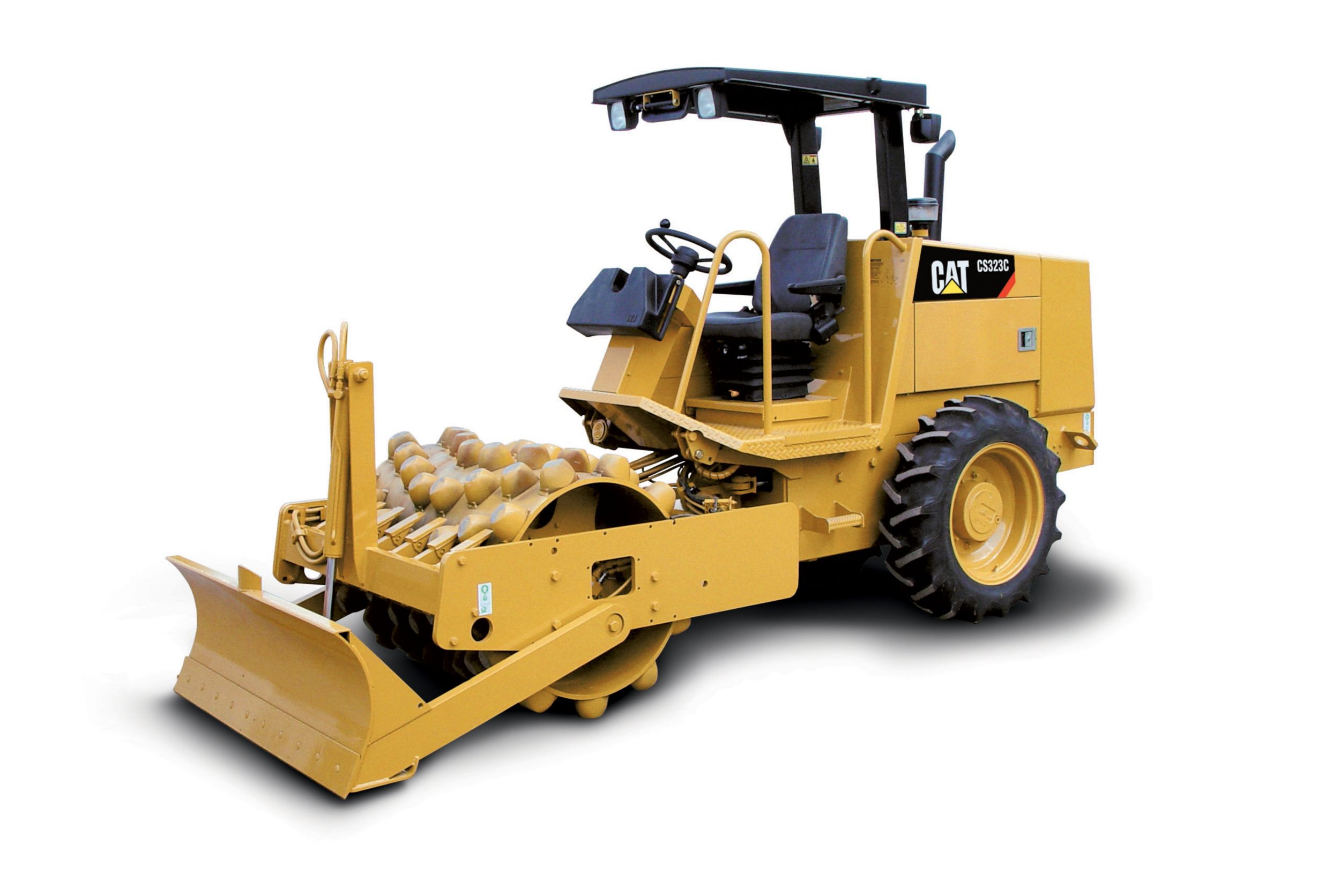

CP-323C Vibratory Soil Compactor
Cat vibratory soil compactors are designed for exceptional operator visibility, maneuverability and ease of operation.
Product Specs
Engine
- Gross Power
- 83 mm H2O
- Gross Power
- 83.0 hp
- Bore
- 4.13 in
- Engine Model
- Cat® 3054C
- Net Power - EEC 80/1269
- 80 mm H2O
- Net Power - ISO 9249
- 80 mm H2O
- Net Power - SAE J1349
- 80 mm H2O
- Stroke
- 5 in
- Engine Model
- Cat® 3054C
- Net Power - EEC 80/1269
- 80.0 hp
- Net Power - ISO 9249
- 80.0 hp
- Net Power - SAEJ1349
- 80.0 hp
- Bore
- 4.13 in
- Stroke
- 5.0 in
Weights
- Operating Weight - With ROPS/FOPS
- 10190 lb
- Weight - Drum with ROPS/FOPS
- 4870 lb
- Operating Weight w/ROPS/FOPS
- 10190.0 lb
- Weight at Drum w/ROPS/FOPS
- 4870.0 lb
- Shipping Weight - With ROPS/FOPS
- 10015 lb
Operating Specifications
- Curb Clearance
- 13.2 in
- Ground Clearance
- 13.6 in
- Travel Speed - Maximum
- 5.5 mile/h
- Turning Radius - Inside Drum Edge
- 103 in
- Turning Radius - Outside Drum Edge
- 153 in
- Drum Width
- 50 in
- Travel Speed (Maximum)
- 5.5 mph
- Turning Radius Inside Drum Edge
- 103.0 in
- Turning Radius Outside Drum Edge
- 153.0 in
- Ground Clearance
- 13.6 in
- Curb Clearance
- 13.2 in
- Blade Cutting Depth
- 3 in
Dimensions
- Blade Height
- 22 in
- Height - With ROPS/FOPS
- 98 in
- Overall Length
- 162 in
- Overall Width
- 54 in
- Wheel Base
- 88 in
- Width - With Blade
- 41.61 in
- Drum Diameter - Over Drum
- 33.07 in
- Overall Length
- 162.0 in
- Overall Length - With Blade
- 177 in
- Overall Width
- 54.0 in
- Height w/ROPS/FOPS
- 98.0 in.
- Blade height
- 22.0 in
- Wheelbase
- 88.0 in
- Drum Diameter - Over Pads
- 40 in
Tires
- Tires
- 284 mm (11.2") x 610 mm (24") 8-ply traction
- Tires
- 284 mm (11.2") x 610 mm (24") 8-ply traction
Service Refill Capacities
- Fuel Tank Capacity
- 38 gal (US)
- Fuel Tank Capacity
- 38.0 gal
Vibratory System
- Nominal Amplitude - High
- 0.05 in
- Vibration Frequency
- 2100 V/m
- Nominal Amplitude - High
- 0.05 in
- Centrifugal Force - Maximum
- 15000 lb
