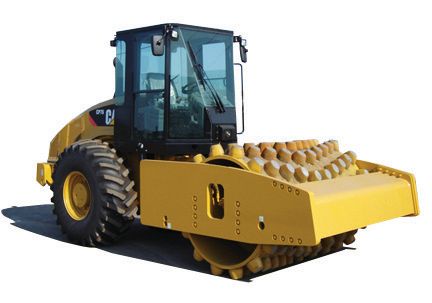

CP76 Vibratory Soil Compactor
The durable and reliable CP76 Soil Compactors offer high compaction performance and speed to maximize productivity.
Product Specs
Weights
- Operating Weight - With Cab
- 37759 lb
- Operating Weight with Cab
- 37759.0 lb
- Operating Weight - With ROPS/FOPS
- 37249 lb
- Weight - Drum with ROPS/FOPS
- 23881 lb
- Operating Weight with ROPS/FOPS
- 37249.0 lb
- Weight - Drum with Cab
- 24015 lb
- Weight at Drum with ROPS/FOPS
- 23881.0 lb
Operating Specifications
- Compaction Width
- 84 in
- Compaction Width
- 84.0 in
- Ground Clearance
- 21.1 in
- Travel Speed - Maximum
- 7 mile/h
- Ground Clearance
- 21.1 in
- Travel Speed – Maximum
- 7.0 mph
- Turning Radius - Inside Drum Edge
- 12.08 ft
Engine
- Gross Power
- 174 mm H2O
- Gross Power
- 174.0 hp
- Engine Model
- Cat C6.6
- Engine Model
- Cat C6.6
Dimensions
- Drum Width
- 84 in
- Overall Length
- 19.25 ft
- Overall Width
- 7.67 ft
- Wheel Base
- 9.5 ft
- Drum Diameter - Over Pads
- 61 in
- Drum Width
- 84.0 in
- Height - With ROPS/FOPS or Cab
- 10.08 ft
- Overall Length
- 19.25 ft
- Overall Width
- 7.67 ft
- Wheelbase
- 9.5 ft
Vibratory System
- Nominal Amplitude - High
- 0.071 in
- Nominal Amplitude - Low
- 0.035 in
- Variable Frequency Option Range
- 23.3-30 Hz (1,400-1,800 vpm)
- Vibratory Frequency - Standard
- 1800 V/m
- Centrifugal Force - Maximum
- 74600 lb
- Centrifugal Force - Minimum
- 37300 lb
- Nominal Amplitude – High
- 0.071 in
- Nominal Amplitude – Low
- 0.035 in
- Variable Frequency Option Range
- 23.3-30 Hz (1,400-1,800 vpm)
- Vibratory Frequency - Standard
- 1800.0 vpm
Tires
- Tires
- 23.1 × 26 8-ply traction
- Tires
- 23.1 × 26 8-ply traction
Service Refill Capacities
- Fuel Tank Capacity
- 91 gal (US)
- Fuel Tank Capacity
- 91.0 gal
