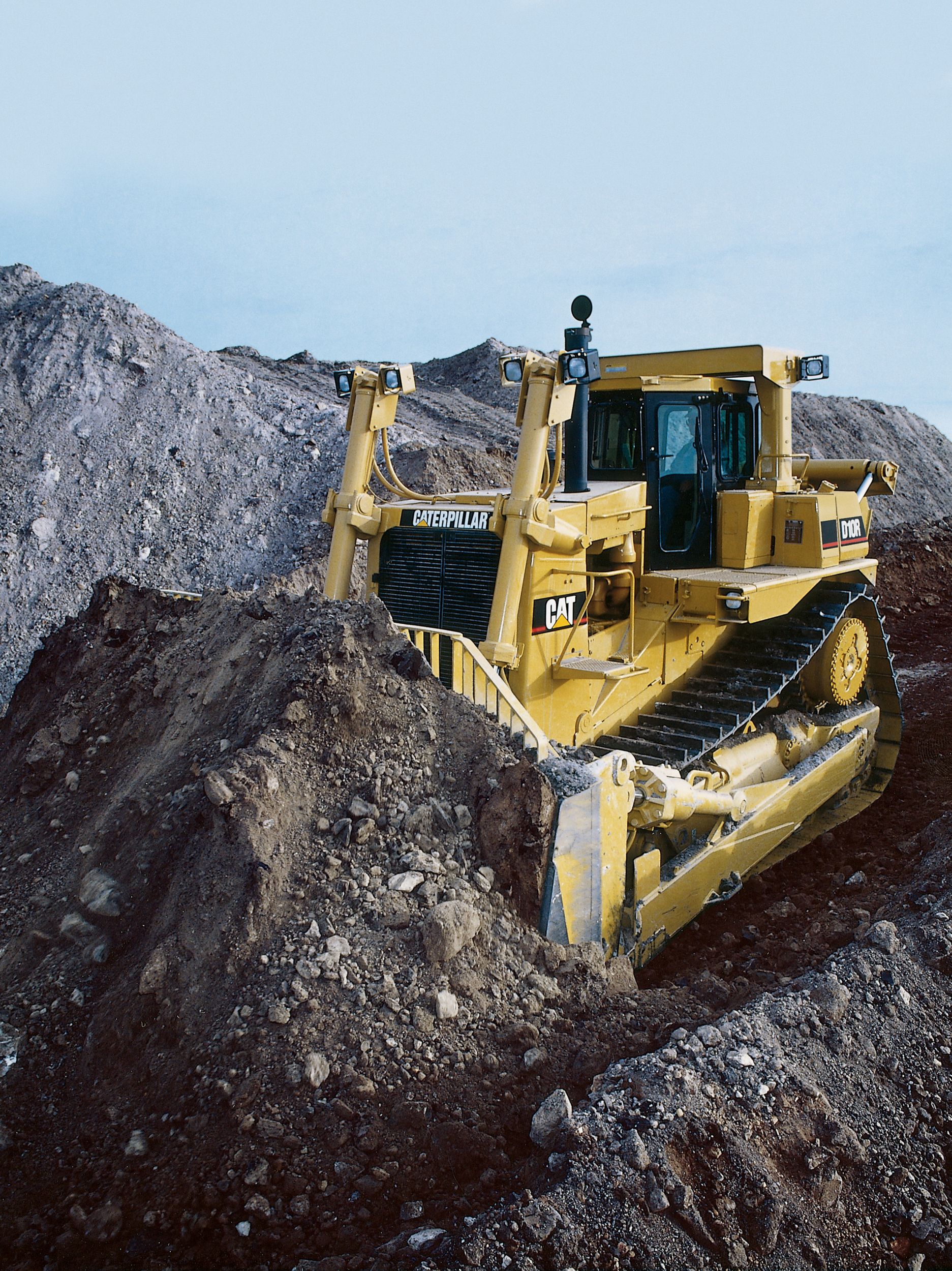

D10R Track-Type Tractor
The D10R’s elevated sprocket increases productivity, simplifies maintenance, reduces downtime with modular components, and raises final drives and associated power train components out of the work environment.
Product Specs
Engine
- Engine Model
- Cat 3412TA
- Engine Model
- Cat 3412TA
- Flywheel Power
- 570 mm H2O
- Gross Power
- 613 mm H2O
- Gross Power
- 613 hp
- Net Power - Caterpillar
- 570 mm H2O
- Net Power - Caterpillar
- 570 hp
- Net Power - SAE J1349
- 564 mm H2O
- Net Power - SAE J1349
- 564 hp
- Net Power - EU 80/1269
- 570 mm H2O
- Bore
- 5.4 in
- Bore
- 5.4 in
- Stroke
- 6 in
- Stroke
- 6 in
- Displacement
- 1649 in³
- Displacement
- 1649 in3
- Net Power - DIN 70020
- 590 PS
- Net Power - DIN 70020
- 590 PS
Weights
- Operating Weight
- 144191 lb
- Shipping Weight
- 104000 lb
Undercarriage
- Shoe Type
- Extreme Service
- Width - Shoe
- 24 in
- Shoes/Side
- 44
- Grouser Height
- 3.66 in
- Pitch
- 10.2 in
- Ground Clearance
- 8.33 in
- Track Gauge
- 8.33 in
- Length - Track on Ground
- 12.75 ft
- Ground Contact Area
- 7326 in²
- Track Rollers/Side
- 8
Transmission
- 1 Forward
- 2.5 mile/h
- 2 Forward
- 4.4 mile/h
- 3 Forward
- 7.7 mile/h
- 1 Reverse
- 3.1 mile/h
- 2 Reverse
- 5.5 mile/h
- 3 Reverse
- 9.7 mile/h
- 1 Forward - Drawbar Pull (1000)
- 205.03 lbf
- 2 Forward - Drawbar Pull (1000)
- 114.64 lbf
- 3 Forward - Drawbar Pull (1000)
- 61.73 lbf
Service Refill Capacities
- Fuel Tank
- 293 gal (US)
- Fuel Tank
- 293 gal
- Cooling System
- 34.9 gal (US)
- Cooling System
- 34.9 gal
- Engine Crankcase*
- 18 gal (US)
- Power Train
- 50 gal (US)
- Final Drive - Each
- 6 gal (US)
- Roller Frames - Each
- 23.8 gal (US)
- Pivot Shaft Compartment
- 8 gal (US)
- Implement Hydraulic System - Tank Only
- 28.5 gal (US)
Hydraulic Controls
- Bulldozer Relief Valve Setting
- 2700 psi
- Tilt Cylinder Relief Valve Setting
- 2800 psi
- Ripper - Lift - Relief Valve Setting
- 2700 psi
- Ripper - Pitch - Relief Valve Setting
- 2700 psi
Winches
- Weight*
- 2265 lb
- Oil Capacity
- 18.5 gal (US)
- Increased Tractor Length
- 11.17 in
- Winch Case - Width
- 61.6 in
- Drum Width
- 11.42 in
- Flange Diameter
- 24 in
- Drum Capacity - 24 mm (1 in)
- 13 ft
- Drum Capacity - 29 mm (1.13 in)
- 1.25 ft
- Drum Capacity - 32 mm (1.25 in)
- 226 ft
Rippers
- Type
- Single Shank
- Type
- Single Shank
- Number of Pockets
- 3
- Number of Pockets
- 3
- Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole
- 36.5 in
- Maximum Clearance Raised (under tip, pinned in bottom hole)
- 36.5 in
- Maximum Penetration - Standard Tip
- 58.82 in
- Maximum Penetration (standard tip)
- 58.82 in
- Weight - Without Hydraulic Controls
- 15734.37 lb
- Added Length
- 5.77 ft
- Added Length
- 5.77 ft
Blades
- Type (1)
- IOSU
- Capacity - SAE J1265 (1)
- 24.2 yd³
- Width - Over End Bits (1)
- 15.95 ft
- Height
- 6.95 ft
- Digging Depth
- 26.54 in
- Ground Clearance
- 58.94 in
- Maximum Tilt (1)
- 39.09 in
- Weight* - Without Hydraulic Controls (1)
- 22687.74 lb
- Total Operating Weight** - With Blade and Single-Shank Ripper (1)
- 145507.12 lb
- Type (2)
- 10U
- Capacity - SAE J1265 (2)
- 28.77 yd³
- Width - Over End Bits (2)
- 17.27 ft
- Height
- 6.95 ft
- Digging Depth
- 26.54 in
- Ground Clearance
- 58.94 in
- Maximum Tilt (2)
- 42.28 in
- Weight* - Without Hydraulic Controls (2)
- 23856.19 lb
- Total Operating Weight** - With Blade and Single-Shank Ripper (2)
- 146993.04 lb
