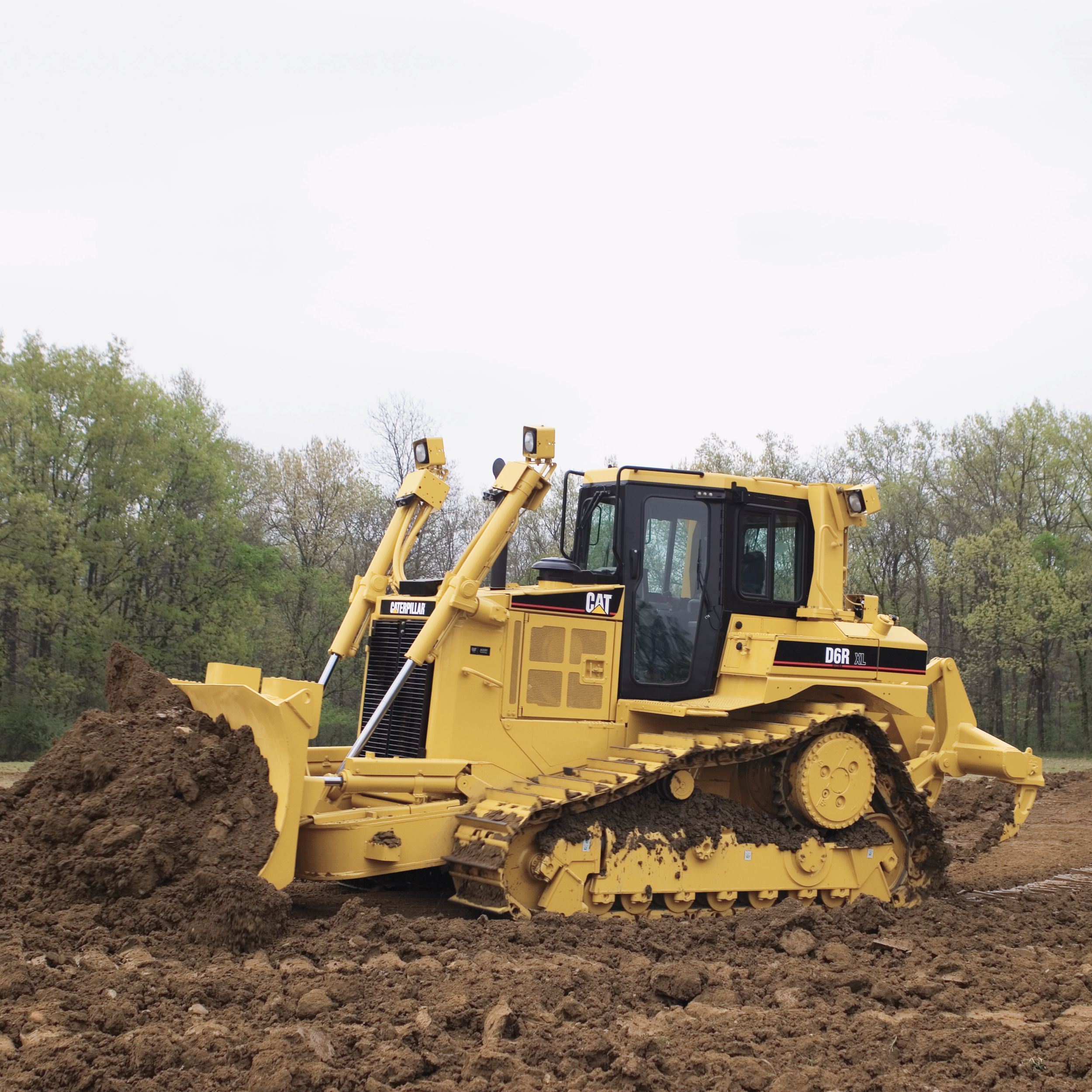

D6R Series III Track-Type Tractor
Engineered for demanding work. The D6R Series III is designed to be productive in a variety of applications. It keeps material moving with the reliability and low operating costs you expect from Cat machines.
Product Specs
Engine
- Engine Model
- Cat® C9 ACERT™
- Engine Model
- Cat® C9 ACERT™
- Flywheel Power
- 185 mm H2O
- Flywheel Power
- 185 hp
- Gross Power
- 213 mm H2O
- Gross Power
- 213 hp
- Net Power - Caterpillar
- 185 mm H2O
- Net Power - Caterpillar
- 185 hp
- Net Power - ISO 9249
- 185 mm H2O
- Net Power - ISO 9249
- 185 hp
- Net Power - SAE J1349
- 183 mm H2O
- Net Power - SAE J1349
- 183 hp
- Net Power - EU 80/1269
- 185 mm H2O
- Net Power - EU 80/1269
- 185 hp
- Net Power - DIN 70020
- 192 PS
- Net Power - DIN 70020
- 192 PS
- Bore
- 4.4 in
- Bore
- 4.4 in
- Stroke
- 5.9 in
- Stroke
- 5.9 in
- Displacement
- 537 in³
- Displacement
- 537 in3
Weights
- Operating Weight
- 41159 lb
- Operating Weight
- 41159 lb
- Shipping Weight
- 32426 lb
- Shipping Weight
- 32426 lb
- Operating Weight - STD A
- 41148 lb
- Operating Weight - STD A
- 41148 lb
- Shipping Weight - STD A
- 32426 lb
- Operating Weight - STD SU
- 40400 lb
- Shipping Weight - STD SU
- 32426 lb
- Operating Weight - XL A
- 44645 lb
- Shipping Weight - XL A
- 36824 lb
- Operating Weight - XL SU
- 44270 lb
- Shipping Weight - XL SU
- 36824 lb
- Operating Weight - XL VPAT
- 46540 lb
- Shipping Weight - XL VPAT
- 37872 lb
- Operating Weight - XW A
- 46553 lb
- Shipping Weight - XW A
- 38281 lb
- Operating Weight - XW SU
- 45573 lb
- Shipping Weight - XW SU
- 38281 lb
- Operating Weight - XW VPAT
- 47126 lb
- Shipping Weight - XW VPAT
- 39058 lb
- Operating Weight - LGP S
- 47874 lb
- Shipping Weight - LGP S
- 41551 lb
- Operating Weight - LGP VPAT
- 50818 lb
- Shipping Weight - LGP VPAT
- 41985 lb
Blades
- Blade Type
- A
- Blade Type
- A
- SU - Blade Capacity
- 7.34 yd³
- SU-Blade Capacity
- 7.34 yd3
- SU - Blade Width
- 10.7 ft
- SU-Blade Width
- 10.7 ft
- S-Blade Capacity
- 5.09 yd³
- S-Blade Width
- 11.02 ft
- A-Blade Capacity
- 5.14 yd³
- A-Blade Capacity
- 5.14 yd3
- A-Blade Width
- 13.67 ft
- A-Blade Width
- 13.67 ft
- XL VPAT - Blade Capacity
- 6.19 yd³
- XL, VPAT - Blade Capacity
- 6.19 yd3
- XL VPAT - Blade Width
- 12.73 ft
- XL VPAT - Blade Width
- 12.73 ft
- XW SU - Blade Capacity
- 7.35 yd³
- XW SU - Blade Width
- 11.67 ft
- XW A - Blade Capacity
- 5.62 yd³
- XW A - Blade Width
- 13.78 ft
- LGP S-Blade Capacity
- 4.9 yd³
- LGP S-Blade Width
- 13.33 ft
- LGP VPAT - Blade Capacity
- 5.65 yd³
- LGP, VPAT - Blade Capacity
- 5.65 yd3
- LGP VPAT - Blade Width
- 13.65 ft
- LGP VPAT - Blade Width
- 13.65 ft
Engine - XL/XW/LGP
- Engine Model
- Cat C9 ACERTâ„¢
- Gross Power
- 228 mm H2O
- Net Power - Caterpillar
- 200 mm H2O
- Net Power - ISO 9249
- 200 mm H2O
- Net Power - EU 80/1269
- 200 mm H2O
- Net Power - SAE J1349
- 198 mm H2O
- Net Power - DIN 70020
- 207 PS
- Bore
- 4.4 in
- Stroke
- 5.9 in
- Displacement
- 537 in³
Transmission
- 1.0 Forward
- 2.3 mph
- 1.0 Forward
- 2.3 mile/h
- 2.0 Forward
- 4.1 mph
- 2.0 Forward
- 4.1 mile/h
- 3.0 Forward
- 7.1 mph
- 3.0 Forward
- 7.1 mile/h
- 1.0 Reverse
- 3 mph
- 1.0 Reverse
- 3 mile/h
- 2.0 Reverse
- 5.2 mph
- 2.0 Reverse
- 5.2 mile/h
- 3.0 Reverse
- 9.1 mph
- 3.0 Reverse
- 9.1 mile/h
- Drawbar Pull - 1.0 Forward
- 77000 lb
- Drawbar Pull - 2.0 Forward
- 42000 lb
- Drawbar Pull - 3.0 Forward
- 23000 lb
Undercarriage
- Width of Shoe
- 29.92 in
- Width - Shoe
- 29.92 in
- Width - Shoe - LGP
- 36.02 in
- Shoes/Side
- 41
- Shoes/Side
- 41
- Shoes/Side - LGP
- 45
- Grouser Height
- 2.56 in
- Grouser Height
- 2.56 in
- Pitch
- 7.99 in
- Pitch
- 7.99 in
- Ground Clearance
- 15 in
- Ground Clearance
- 15 in
- Track Gauge
- 80 in
- Track Gauge
- 80 in
- Track Gauge - LGP
- 90 in
- Track Gauge - LGP
- 90 in
- Track on Ground
- 113.03 in
- Track on Ground
- 113.03 in
- Track on Ground - LGP
- 128.94 in
- Ground Contact Area
- 6758.01 in2
- Ground Contact Area
- 6758.01 in²
- Ground Contact Area - LGP
- 9284.52 in2
- Ground Contact Area - LGP
- 9284.52 in²
- Ground Pressure
- 6.72 psi
- Ground Pressure
- 6.72 psi
- Ground Pressure - LGP
- 5.15 psi
- Ground Pressure - LGP
- 5.15 psi
Service Refill Capacities
- Fuel Tank
- 112 gal
- Fuel Tank
- 112 gal (US)
- Cooling System
- 18.5 gal
- Cooling System
- 18.5 gal (US)
- Engine Crankcase
- 7.4 gal
- Engine Crankcase
- 7.4 gal (US)
- Power Train
- 38.5 gal
- Power Train
- 38.5 gal (US)
- Final Drives (each)
- 3.6 gal
- Final Drive - Each
- 3.6 gal (US)
- Roller Frames (each)
- 6.5 gal
- Roller Frames - Each
- 6.5 gal (US)
- Pivot Shaft Compartment
- 1.3 gal
- Pivot Shaft Compartment
- 1.3 gal (US)
- Hydraulic Tank
- 13.6 gal
- Hydraulic Tank
- 13.6 gal (US)
Hydraulic Controls - Maximum Operating Pressure
- Bulldozer
- 2799 psi
- Bulldozer Tilt
- 2799 psi
- Tilt Cylinder
- 2799 psi
- Ripper (Lift)
- 2799 psi
- Ripper - Pitch
- 2799 psi
- Steering
- 5802 psi
- Bulldozer - Tilt
- 2799 psi
- Ripper - Lift
- 2799 psi
- Steering
- 5802 psi
Winch
- Winch Model
- PA 56
- Weight*
- 2600 lb
- Weight*
- 2600 lb
- Oil Capacity
- 17.8 gal (US)
- Winch and Bracket Length
- 47.6 in
- Winch Case - Length
- 47.6 in
- Winch Case - Length
- 47.6 in
- Winch Case - Width
- 38.4 in
- Winch Case - Width
- 38.4 in
- Increased Tractor Length - STD
- 20.4 in
- Increased Tractor Length - XL/XW
- 20.4 in
- Increased Tractor Length - LGP
- 15.6 in
- Drum Diameter
- 10 in
- Drum Diameter
- 10 in
- Drum Width
- 13 in
- Drum Width
- 13 in
- Flange Diameter
- 19.8 in
- Drum Capacity - 22 mm (0.88 in)
- 290 ft
- Drum Capacity - 25 mm (1.0 in)
- 220 ft
- Drum Capacity - 29 mm (1.13 in)
- 220 ft
- Ferrule Size (O.D. × Length)
- 54 x 67 mm 2.10 x 2.63 in
Dimensions
- Length - Track on Ground
- 104.88 in
- Drawbar Height (Center of Clevis) from Ground Face of Shoes
- 22.68 in
- Length of Track on Ground
- 104.88 in
- Ground Clearance
- 15 in
- Ground Clearance
- 15 in
- Track Gauge
- 74.02 in
- Track Gauge
- 74.02 in
- Width - Without Blade
- 103.94 in
- Width - With Blade
- 11 ft
- Width with Blade
- 11 ft
- Height
- 10.31 ft
- Height
- 10.31 ft
- Height - ROPS/Canopy
- 10.48 ft
- Height ROPS/Canopy
- 10.48 ft
- Overall Length - Basic Tractor - With Drawbar
- 12.66 ft
Ripper
- Weight - With One Shank
- 3606 lb
- Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole
- 20.1 in
- Maximum Penetration Force
- 14557 lb
- Pryout Force
- 20137 lb
- Maximum Penetration Force
- 14557 lb
- Pry-Out Force
- 20137 lb
- Type
- Fixed Parallelogram
- Type
- Fixed Parallelogram
- Number of Pockets
- 3
- Overall Beam Width
- 87 in
- Overall Beam Width
- 87 in
- Beam Cross Section
- 216 x 254 mm 8.5 x 10 in
- Maximum Penetration
- 19.7 in
- Weight - Each Additional Shank
- 163 lb
Hydraulic Controls - Main Relief Valve
- Pressure Setting
- 6092 psi
- Pressure Setting
- 6092 psi
Hydraulic Controls - Pump
- Pump Capacity
- 1001 psi
- RPM at Rated Engine Speed
- 2125 r/min
- Pump Output
- 57.3 gal/min
- Lift Cylinder Flow
- 50.2 gal/min
- Tilt Cylinder Flow
- 21.1 gal/min
- Ripper Cylinder Flow
- 42.3 gal/min
Standards
- ROPS/FOPS
- ROPS meets criteria SAE J395, SAE 1040 MAY 94, ISO 3471-1994/FOPS meets ISO 3449-1992 Level II
- ROPS/FOPS
- ROPS meets criteria SAE J395, SAE 1040 MAY 94, ISO 3471-1994/FOPS meets ISO 3449-1992 Level II
- Cab
- Meets appropriate standards as listed below.
- Cab
- Meets appropriate standards as listed below.
- Brakes
- Brakes meet criterion SAE J/ISO 10265 MAR99
- Brakes
- Brakes meet criterion SAE J/ISO 10265 MAR99
Standard Equipment
-
- Electrical
-
- Alarm, backup
- Alternator, 95-amp
- Batteries, two maintenance-free 12V (24V system)
- Converter, 12V, 10 amp with two power outlets
- Diagnostic connector
- Horn, forward warning
-
- Operator Environment
-
- Air conditioner, under-hood
- Armrests, adjustable
- Cab, ROPS/FOPS, sound-suppressed
- Differential steering control with touch shift
- Electronic distance travel indicator
- Caterpillar Monitoring System:
- Foot pads, dash
- Heater
- Hourmeter, electronic
- Mirror, rearview
- Pedal, decelerator
- Pilot operated hydraulic controls with electronic deactivation switch
- Radio ready
- Seat, adjustable, contour suspension with gray fabric
- Seat belt, retractable 76 mm (3 in)
- Throttle switch, electronic
- Wipers, intermittent
-
- Power Train
-
- Advanced Modular Cooling System (AMOCS)
- Aftercooler, air-to-air (ATAAC)
- Air cleaner, pre-cleaner with strata tube dust ejector
- Air filter with electronic service indicator
- C9 ACERT, diesel, Electronic Unit Injection (EUI)
- Coolant, extended life
- Electronically controlled powershift transmission
- Fan, blower, direct drive
- Final drives, 3-planet single reduction planetary
- Fuel priming pump, electric
- Muffler with mitered stack
- Parking brake, electronic
- Prescreener
- Shift management:
- Starting aid, automatic ether
- Torque divider
- Turbocharger, waste-gate
- Water separator
-
- Undercarriage
-
- Carrier roller (XL, XW, and LGP)
- Equalizer bar, heavy-duty
- Guards, center track guiding (LGP)
- Guards, end guiding
- Idlers - SystemOne, center tread, lifetime lubricated
- Sprocket rim segments, replaceable
- Track adjusters, hydraulic
- Track roller frames, tubular
- Track rollers, lifetime lubricated
- Track, SystemOne, moderate service:
-
- Other Standard Equipment
-
- CD-ROM parts book
- Cooler, hydraulic oil
- Engine enclosures, perforated
- Front pull device
- Guards, hinged bottom
- Hood, perforated
- Hydraulic, load sensing, dozer lift and tilt
- Product Link ready
- Radiator doors, hinged, fan blast deflector
- Scheduled oil sampling ports:
- Tool box
- Vandalism protection:
Attachments
-
- Electrical
-
- AccuGrade® Ready Option (Laser/GPS)
- Alternator, 150 amp (brushless)
- Alternator, 95 amp (ducted)
- Lights, supplemental:
- Machine Security System
- Power converter
- Product Link
-
- Operator Environment
-
- Air conditioner (ROPS mounted)
- Air suspension seat, cloth (for use with cab)
- Canopy Arr. (OROPS)
- Glass, ultra strength
- Seat - vinyl (for use with cab)
- Steps, heavy duty grab handles
-
- Power Train
-
- Drains, ecology (torque converter and transmission)
- Fan: Demand (clutch drive), ejector, Flexxaire, or reversible
- Grid, radiator core protector
- Oil change system, high speed engine and power train
- Precleaner: turbine with or without screen, or with prescreener
- Radiator AMOCS, waste handling, 6FIN/IN cores; abrasion resistant cores
- Starting Aids
- Thermal shield
-
- Undercarriage
-
- SystemOne, Extreme Service (ES), Moderate Service (MS)
- Track, Pairs (STD/XL)
- Track, Pairs (XW)
- Track, Pair (LGP, non-VPAT)
- Heavy-duty, Extreme Service (ES), Moderate Service (MS)
- Track, Pairs (STD/XL)
- Track, Pairs (XW)
- Track, Pairs (LGP, non-VPAT)
-
- Guards
-
- Front pull hook, extreme service, sealed
- Crankcase - extreme service sound suppressed, sealed
- Final drive clamshell
- Final drive seals
- Fuel tank with or without mechanical winch or ripper
- Precleaner
- Radiator, bottom heavy-duty
- Radiator, heavy-duty, punched (non-VPAT)
- Radiator, hinged, two-piece, heavy-duty (non-VPAT)
- Radiator, hinged, 2-piece heavy-duty (VPAT)
- Rear heavy-duty, transmission
- Screen, rear - with ROPS mounted air conditioner
- Seals, idler GP
- Striker bar GP, front and rear
- Sweeps (not compatible with VPAT machines)
- SystemOne™
- Guard, track roller (STD, XL, XW, LGP)
-
- Hydraulics
-
- Ripper
- Winch
- AccuGrade
-
- Rippers
-
- Ripper, multi-shank
- Ripper Attachments
-
- Winch Arrangements (paccar)
-
- Fairlead, 3 rollers
- Fairlead roller (4th roller)
- Installation arrangement, winch
- Winch arr. - slow speed with freespool (slow speed) or (normal speed)
-
- Other Attachments
-
- AccuGrade blade kit
- Counterweight, rear
- Counterweight, additional rear slab
- Drawbar, rigid, long or short
- Radio, 12V AM/FM cassette
- Sound suppression
