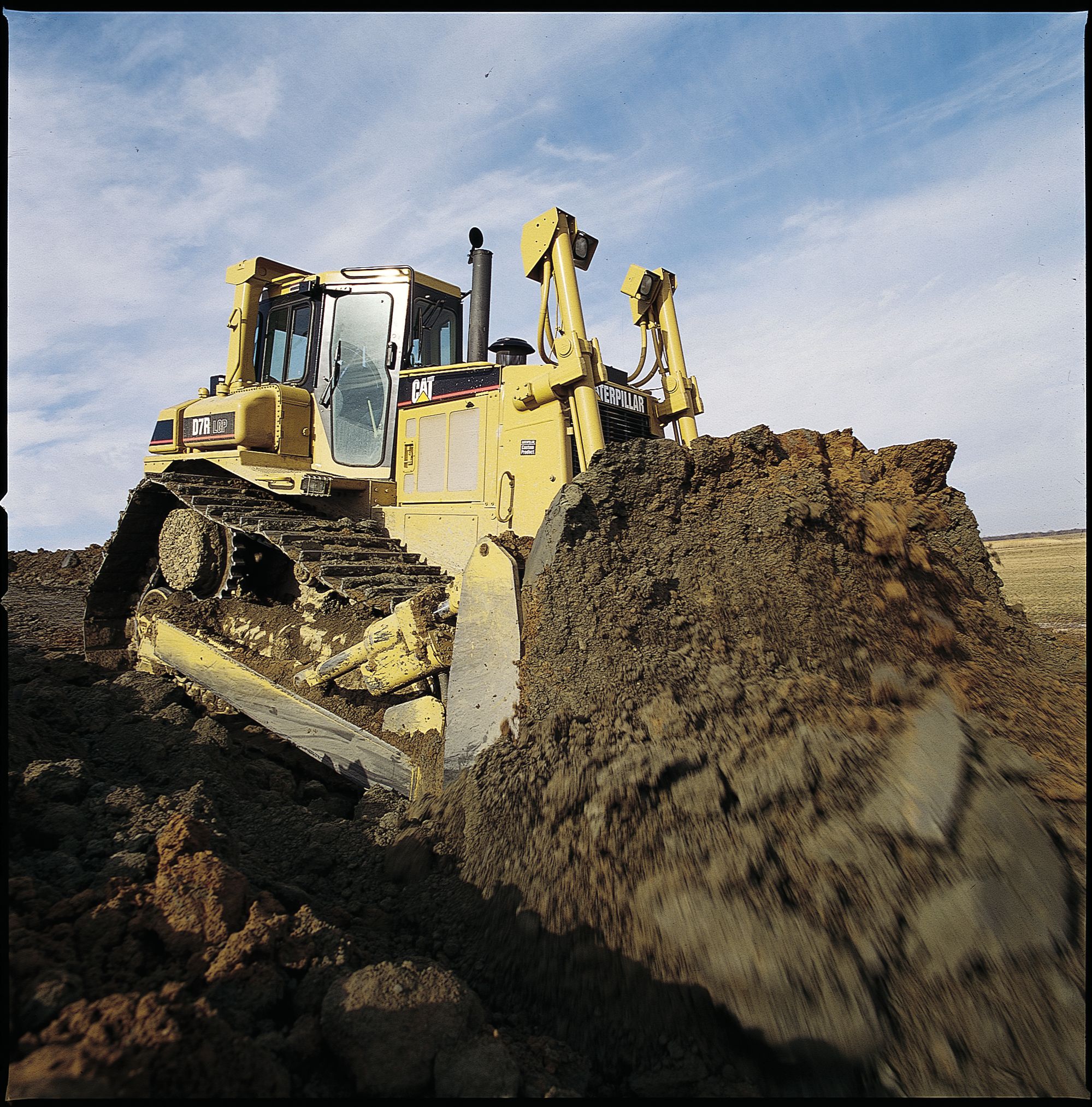

D7R LGP Track-Type Tractor
The D7R LGP Tractor has wider shoes and extended track frames, reducing ground pressure for excellent flotation in soft, spongy or swampy conditions.
Product Specs
Engine
- Engine Model
- 3306 T
- Engine Model
- 3306 T
- Flywheel Power
- 240 mm H2O
- Flywheel Power
- 240 hp
- Maximum Flywheel Power
- 257 mm H2O
- Displacement
- 640.75 in³
- Displacement
- 640.75 in3
- Flywheel Power - Power Shift
- 140 mm H2O
Weights
- Operating Weight
- 67472 lb
- Operating Weight
- 67472 lb
- Operating Weight - Power Shift
- 65036 lb
Blades
- Blade Type
- S
- Blade Type
- S
- S-Blade Width
- 14.9 ft
Transmission
- 1.0 Forward
- 2.17 mile/h
- 1.0 Forward
- 2.17 mph
- 2.0 Forward
- 3.98 mile/h
- 2.0 Forward
- 3.98 mph
- 3.0 Forward
- 6.71 mile/h
- 3.0 Forward
- 6.71 mph
- 1.0 Reverse
- 2.92 mile/h
- 1.0 Reverse
- 2.92 mph
- 2.0 Reverse
- 5.03 mile/h
- 2.0 Reverse
- 5.03 mph
- 3.0 Reverse
- 8.57 mile/h
- 3.0 Reverse
- 8.57 mph
Undercarriage
- Shoe Type
- Single grouser
- Shoe Type
- Single grouser
- Width - Shoe
- 35.98 in
- Width of Shoe
- 35.98 in
- Shoes/Side
- 43
- Shoes/Side
- 43
- Ground Clearance
- 1.6 in
- Ground Clearance
- 1.6 in
- Track Gauge
- 87.6 in
- Track Gauge
- 87.6 in
- Track on Ground
- 10.4 in
- Track on Ground
- 10.4 in
- Ground Pressure
- 6.5 psi
- Ground Pressure
- 6.5 psi
- Track Rollers/Side
- 7
- Track Rollers/Side
- 7
Service Refill Capacities
- Fuel Tank
- 126.54 gal (US)
- Fuel Tank
- 126.54 gal
- Cooling System
- 19.81 gal (US)
- Cooling System
- 19.81 gal
- Engine Crankcase
- 7.13 gal (US)
- Engine Crankcase
- 7.13 gal
- Power Train
- 48.08 gal (US)
- Power Train
- 48.08 gal
- Final Drive - Each
- 3.43 gal (US)
- Final Drives (each)
- 3.43 gal
- Hydraulic Tank
- 14.27 gal (US)
- Hydraulic Tank
- 14.27 gal
- Transmission - Bevel Gear and Steering Clutch Compartments - Torque Converter
- 48.08 gal (US)
Winch
- Weight*
- 4120.43 lb
- Weight*
- 4120.43 lb
- Oil Capacity
- 21.4 gal (US)
- Winch and Bracket Length
- 48.5 in
- Winch Case - Width
- 48.03 in
- Winch Case - Width
- 48.03 in
- Increased Tractor Length - STD
- 3.03 in
- Drum Diameter
- 12.01 in
- Drum Diameter
- 12.01 in
- Drum Width
- 12.2 in
- Drum Width
- 12.2 in
- Flange Diameter
- 21.65 in
Dimensions
- Height
- 7.9 ft
- Height
- 7.9 ft
- Height - ROPS/Canopy
- 11.9 ft
- Height ROPS/Canopy
- 11.9 ft
- Overall Length - Basic Tractor - With Drawbar
- 15.5 ft
- Overall Length - With Blade
- 21 ft
- Overall Length with Blade
- 21 ft
Ripper
- Type
- Parallelogram
- Type
- Parallelogram
- Number of Pockets
- 3
- Overall Beam Width
- 87.01 in
- Overall Beam Width
- 87.01 in
- Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole
- 25.12 in
- Maximum Penetration
- 29.45 in
