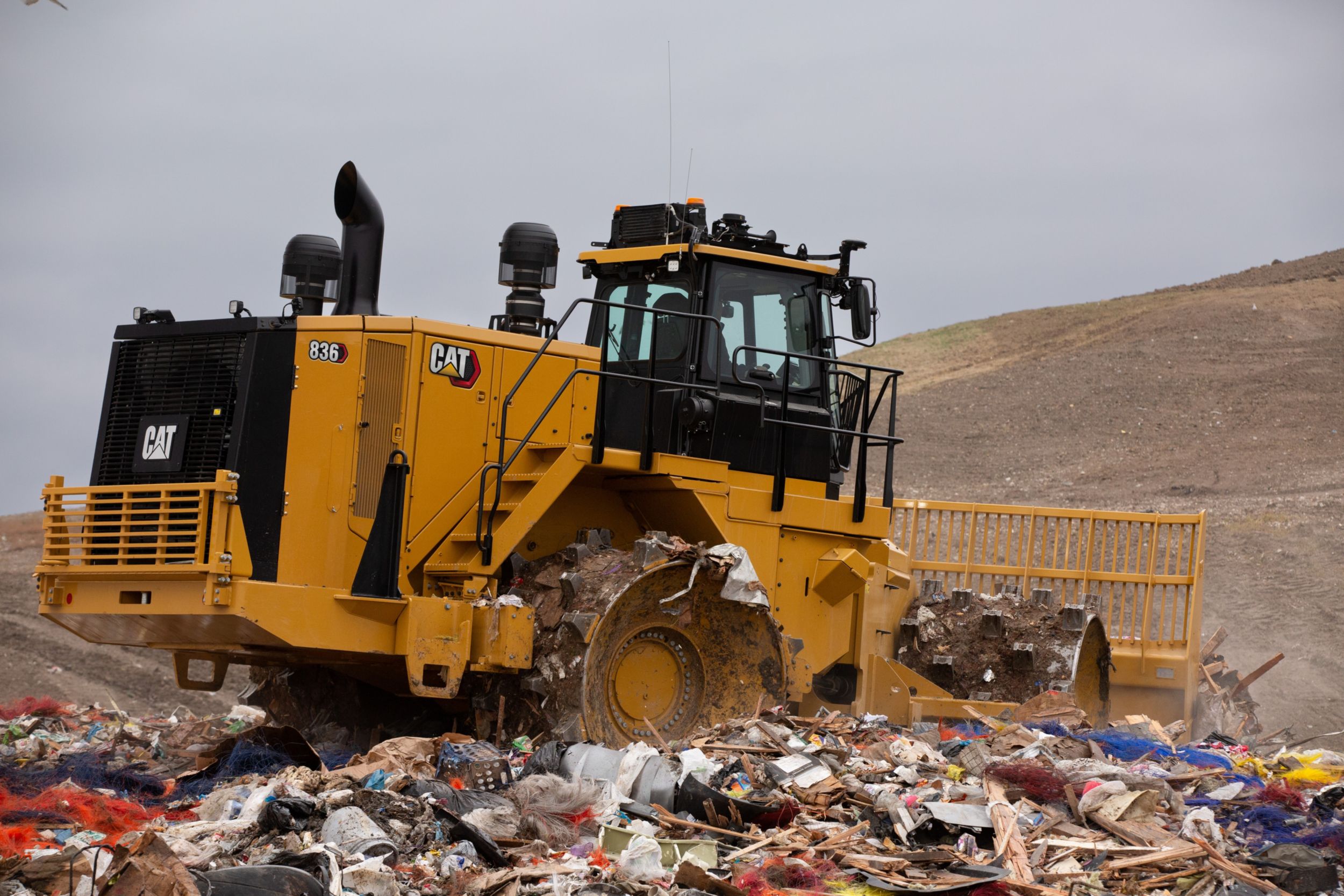

Product Specs
Engine
- Gross Power - SAE J1995:2014
- 562 hp
- Net Power - SAE J1349:2011
- 496 hp
- Net Power – ISO 9249:2007
- 502 hp
- Engine Power - ISO 14396:2002
- 553 hp
- Engine Model
- C18
- Emissions
- U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V and Japan 2014 or Brazil MAR-1, equivalent to China Nonroad Stage III/U.S. EPA Tier 3/ EU Stage IIIA
- Rated Speed
- 1900 rpm
- Peak Torque ( 1,400 rpm )
- 2275 lbf·ft
- Torque Rise
- 52%
- Bore
- 5.71 in
- Stroke
- 7.2 in
- Displacement
- 1104.5 in³
- High Idle Speed
- 2120 r/min
- Low Idle Speed
- 750 r/min
- Maximum Altitude - Without Derating
- 7500 ft
- Note
- Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator.
Operating Specifications
- Operating Weight (Tier 4 Final/Stage V)
- 124063 lb
- Operating Weight (Tier 3/Stage IIIA equivalent)
- 123321 lb
- Maximum Operating Weight (Tier 4 Final/Stage V)
- 126364 lb
- Maximum Operating Weight (Tier 3/Stage IIIA equivalent)
- 125622 lb
Transmission
- Transmission Type
- Planetary - Powershift - ECPC
- Direct Drive - Forward 1
- 4.3 mile/h
- Direct Drive - Forward 2
- 7.8 mile/h
- Direct Drive - Reverse 1
- 4.6 mile/h
- Direct Drive - Reverse 2
- 8.2 mile/h
Hydraulic System - Lift
- Lift System - Circuit
- Flow Sharing Implement; Pilot Operated LS Valve w/EH
- Lift System - Pump
- Variable displacement piston
- Max Flow @ 2000 rpm
- 79 gal/min
- Relief Valve Setting - Lift
- 4206 psi
- Cylinders, Double Acting: Lift, Bore, Stroke
- 137.9 mm x 1021 mm (5.5 in x 40.2 in)
- Pilot System
- Variable displacement piston
- Pilot Relief Valve Setting
- 551 psi
Hydraulic System - Steering
- Steering System - Circuit
- Flow Sharing Implement; Pilot, load sensing
- Steering System - Pump
- Piston – Variable Displacement
- Max Flow @ 2000 rpm
- 79 gal/min
- Relief Valve Setting - Steering
- 3495 lb/in²
- Total Steering Angle
- 86
- Steering Cycle Times - High Idle
- 3.9 s
- Steering Cycle Times - Low Idle
- 6.4 s
Service Refill Capacities
- Fuel Tank
- 209 gal (US)
- Diesel Exhaust Fluid Tank
- 9 gal (US)
- Cooling Systems - Tier 4 Final/EU Stage V
- 40 gal (US)
- Cooling System - Tier 3/Stage IIIA Equivalent
- 37.2 gal (US)
- Engine Crankcase
- 16 gal (US)
- Transmission
- 21.9 gal (US)
- Differential - Final Drives - Front
- 49 gal (US)
- Differential - Final Drives - Rear
- 50 gal (US)
- Hydraulic System - Implement/Steering
- 46.2 gal (US)
- Hydraulic Tank Only
- 27.2 gal (US)
- Note
- - All nonroad Tier 4 Final/Stage V diesel engines are required to use: - Ultra low sulfur diesel (ULSD) fuels containing 15 ppm (mg/kg) for EPA and 10 ppm (mg/kg) for EU sulfur or less. Biodiesel blends up to B20 are acceptable when blended with 15 ppm
Air Conditioning System
- Air Conditioning
- The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.4 kg of refrigerant which has a CO2 equivalent of 2.002 metric tonnes.
Axles
- Front
- Planetary – Fixed
- Rear
- Planetary – Oscillating
- Oscillation Angle
- ±6°
Braking System
- Service Brakes
- Multi Disc Wet (Enclosed) 2 WHL
- Parking Brake
- Spring Applied, Hydraulic Released
Sound Performance - Tier 4 Final/EU Stage V
- Operator Sound Level (ISO 6396:2008) - Standard
- 72 dB(A)
- Machine Sound Level (ISO 6395:2008) - Standard
- 111 dB(A)
- Operator Sound Level (ISO 6396:2008) - Suppression
- 72 dB(A)
- Machine Sound Level (ISO 6395:2008) - Suppression
- 109 dB(A)
- Note (1)
- The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurements are conducted at 70% of the maximum engine cooling fan speed.
- Note (2)
- Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
- Note (3)
- The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurements are conducted at 70% of the maximum engine cooling fan speed.
Sound Performance - Tier 3 / Stage IIIA
- Operator Sound Level (ISO 6396:2008) - Standard
- 72 dB(A)
- Machine Sound Level (ISO 6395:2008) - Standard
- 112 dB(A)
- Operator Sound Level (ISO 6396:2008) - Suppression
- 72 dB(A)
- Machine Sound Level (ISO 6395:2008) - Suppression
- 110 dB(A)
- Note (1)
- The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurements are conducted at 70% of the maximum engine cooling fan speed.
- Note (2)
- Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
- Note (3)
- The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurements are conducted at 70% of the maximum engine cooling fan speed.
Dimensions (Approximate)
- Height to Top of Beacon
- 15.2 ft
- Height to Top of Air Conditioning Condenser
- 15.2 ft
- Height - Cab Roof
- 14.1 ft
- Height - Top of Exhaust Pipe
- 15.1 ft
- Height - Top of Hood
- 11.3 ft
- Ground Clearance to Hitch
- 2.1 ft
- Ground Clearance to Transmission Guard
- 2.1 ft
- Ground Clearance to Bottom of Bumper
- 3.2 ft
- Centerline of Rear Axle to Rear Compactor Guard
- 11.3 ft
- Hitch to Centerline of Front Axle
- 7.5 ft
- Wheel Base
- 14.9 ft
- Width over Front Striker Bars
- 12.9 ft
- Width over Rear Striker Bars
- 12.9 ft
- Width over Platform
- 10.5 ft
- Width over Drums
- 14 ft
- Overall Machine Length with Semi U-Blade
- 35.8 ft
Straight Blade
- Capacity
- 25.9 yd³
- Overall Width
- 17 ft
- Height
- 7.4 ft
- Height of Cutting Edge
- 3.7 ft
- Digging Depth
- 1.2 ft
- Ground Clearance
- 5.7 ft
- Turning Radius – Outside Corner of Blade
- 28.7 ft
- Turning Radius - Inside of Wheels
- 11.9 ft
- Weight
- 6894 lb
- Total Operating Weight
- 123000 lb
Semi U-Blade
- Capacity
- 29.3 yd³
- Overall Width
- 17.4 ft
- Height
- 7.5 ft
- Height of Cutting Edge
- 4.1 ft
- Digging Depth
- 1.2 ft
- Ground Clearance
- 5.7 ft
- Turning Radius – Outside Corner of Blade
- 28.9 ft
- Turning Radius – Inside of Wheels
- 11.9 ft
- Weight
- 7963 lb
- Total Operating Weight
- 124063 lb
U-Blade
- Capacity
- 33.6 yd³
- Overall Width
- 17.4 ft
- Height
- 7.2 ft
- Height of Cutting Edge
- 4.1 ft
- Digging Depth
- 3.1 ft
- Ground Clearance
- 3.9 ft
- Turning Radius – Outside Corner of Blade
- 28.8 ft
- Turning Radius – Inside of Wheels
- 11.9 ft
- Weight
- 7696 lb
- Total Operating Weight
- 123785 lb
Wheels
- Combination Tips (Weight Group)
- 28250 lb
- Plus Tips - Weight (Group)
- 29784 lb
- Paddle Tips - Weight (Group)
- 272227 lb
- Chopper Tips (Weight Group)
- 28404 lb
- Diamond Tips Weight (Group)
- 32659 lb
- Outside Diameter
- 83.8 in
- Outside Diameter - Diamond
- 84.3 in
- Drum Diameter
- 69.7 in
- Drum Width
- 55.1 in
- Feet Per Row
- 8
- Feet Per Wheel
- 40
- Replaceable
- Weld on
- Width Over Drums
- 4280 mm
- Tip Height
- 179 mm
- Tip Height - Diamond
- 7.25 in
Standard Equipment
-
- Note
-
- Standard and optional equipment may vary. Consult your Cat dealer for details.
-
- Power Train
-
- Advanced Productivity Electronic Control Shifting (APECS)
- Air to air aftercooler
- Brakes, fully hydraulic, enclosed, wet multiple disc brakes
- Cat Clean Emission Module, insulated (Tier 4 Final/Stage V/Korea Stage V and Japan 2014)
- Electro hydraulic parking brake
- Engine, Cat C18: – Tier 4 Final/Stage V/Korea Stage V and Japan 2014 – Tier 3/Stage IIIA equivalent
- Fuel priming pump, electric
- Fuel to air cooler
- Ground level engine shutoff
- Guard (3 piece) transmission
- Heat shield, turbo and exhaust manifold
- Hydraulically driven demand fan
- Integrated braking
- Radiator, Aluminum Modular Radiator (AMR)
- Separated cooling system
- Starting aid (ether) automatic
- Throttle lock
- Torque converter with lockup clutch (LUC)
- Turbine precleaner, engine air intake
- Transmission, planetary, with 2F/2R speed range control
- Underhood ventilation system
-
- Electrical
-
- Alarm, back-up
- Alternator, 150 amp
- Batteries, maintenance-free (4-1,000 CCA)
- Converter, 10-15 amp, 24V to 12V
- Lighting system, halogen (front and rear)
- Lighting, access stairway
- Starter, electric (heavy duty)
- Starter lockout (ground level)
- Starting receptacle for emergency start
- Transmission lockout (ground level)
-
- Operator Environment
-
- Air conditioner w/roof-mounted condenser
- Cab, sound-suppressed and pressurized
- Internal four-post rollover protective structure (ROPS/FOPS)
- Radio ready for (entertainment) includes antenna, speakers and converter (12V, 10-15 amp) 12V power port for mobile phone or laptop connection
- Camera, rear vision
- Coat and hard hat hooks
- Flip-up armrest
- Heater and defroster
- Horn, electric
- Hydraulic controls (floor mounted)
- Implement hydraulic lockout
- Laminated glass
- Light, (dome) cab
- Lunchbox and beverage holders
- Instrumentation, Gauges: – DEF fluid level (Tier 4 Final/Stage IV) – Hydraulic oil temperature – Speedometer/tachometer – Torque converter temperature
- Instrumentation, Warning Indicators: – Action alert system, three category – Axle/brake oil temp, front – Brake oil pressure – Electrical system, low voltage – Engine failure malfunction alert and action lamp
- Mirrors, rearview (externally mounted)
- Parking brake status
- Radio, CB (ready)
- Seat, Cat Comfort, (cloth) air suspension
- Seat belt, retractable, 76 mm (3") wide
- STIC Control System with steering lock
- Sun visor, front
- Glass (window) - rubber mounted glass
- Transmission gear (indicator)
- Vital Information Management System (VIMS) with graphical information display: external data port, customizable operator profiles
- Wet-arm wipers/washers (front and rear)
- Intermittent wipers (front and rear)
-
- Wheels
-
- Wheels, paddle, plus, combination, and diamond wheel configurations
-
- Guards
-
- Guards, axle (front and rear)
- Guards, cab window
- Guards, crankcase and power train, hydraulically powered
- Guards, rear fan and grill
-
- Blades
-
- Bulldozer arrangement is included in the standard equipment. Bulldozer blades are optional.
-
- Fluids
-
- Antifreeze, premixed 50% concentration of extended life coolant with freeze protection to –34° C (–29° F)
-
- Other Standard Equipment
-
- Auto Blade Positioner (ABP)
- Demand fan/swing out (hydraulic reversible)
- Doors, service access locking
- Ecology drains for engine, radiator, hydraulic tank
- Electronic clutch pressure control and remote mounted pressure taps
- Emergency platform egress
- Engine, crankcase, 500 hour interval with CJ-4 oil
- Fuel tank, 793 L (210 gal)
- Hitch, drawbar with pin
- Hoses, Cat XT™
- Hydraulic oil cooler
- Hydraulic, steering and brake filtration/screening system
- Oil sampling valves
- Product Link™ - Cellular
- Stairways, fixed-L/R (rear access)
- Steering, load sensing
- Vandalism protection caplocks
- Venturi stack
Attachments
-
- Note
-
- Standard and optional equipment may vary. Consult your Cat dealer for details.
-
- Various Blades:
-
- Straight blade
- U-blade
- Semi U-blade
-
- Various Tip And Wheel Arrangements:
-
- Paddle
- Plus
- Diamond
