Product Specs
Weights
- Operating Weight - With ROPS/FOPS Canopy
- 16320 lb
- Weight - Drum with Cab
- 9621 lb
- Weight - Drum with ROPS/FOPS Canopy
- 9325 lb
- Operating Weight - With Cab
- 16907 lb
Operating Specifications
- Standard Compaction Width
- 67 in
- Turning Radius - Inside Drum Edge
- 10 ft
- Ground Clearance
- 16 in
- Static Linear Load - With Cab
- 145 lb/in
- Static Linear Load - With ROPS/FOPS
- 141 lb/in
- Travel Speed - Maximum
- 7 mile/h
Engine
- Gross Power
- 100.6 HP
- Engine Model
- Cat C3.4B with ACERT
Service Refill Capacities
- Fuel Tank Capacity
- 40 gal (US)
- Water Spray Tank
- 104 gal (US)

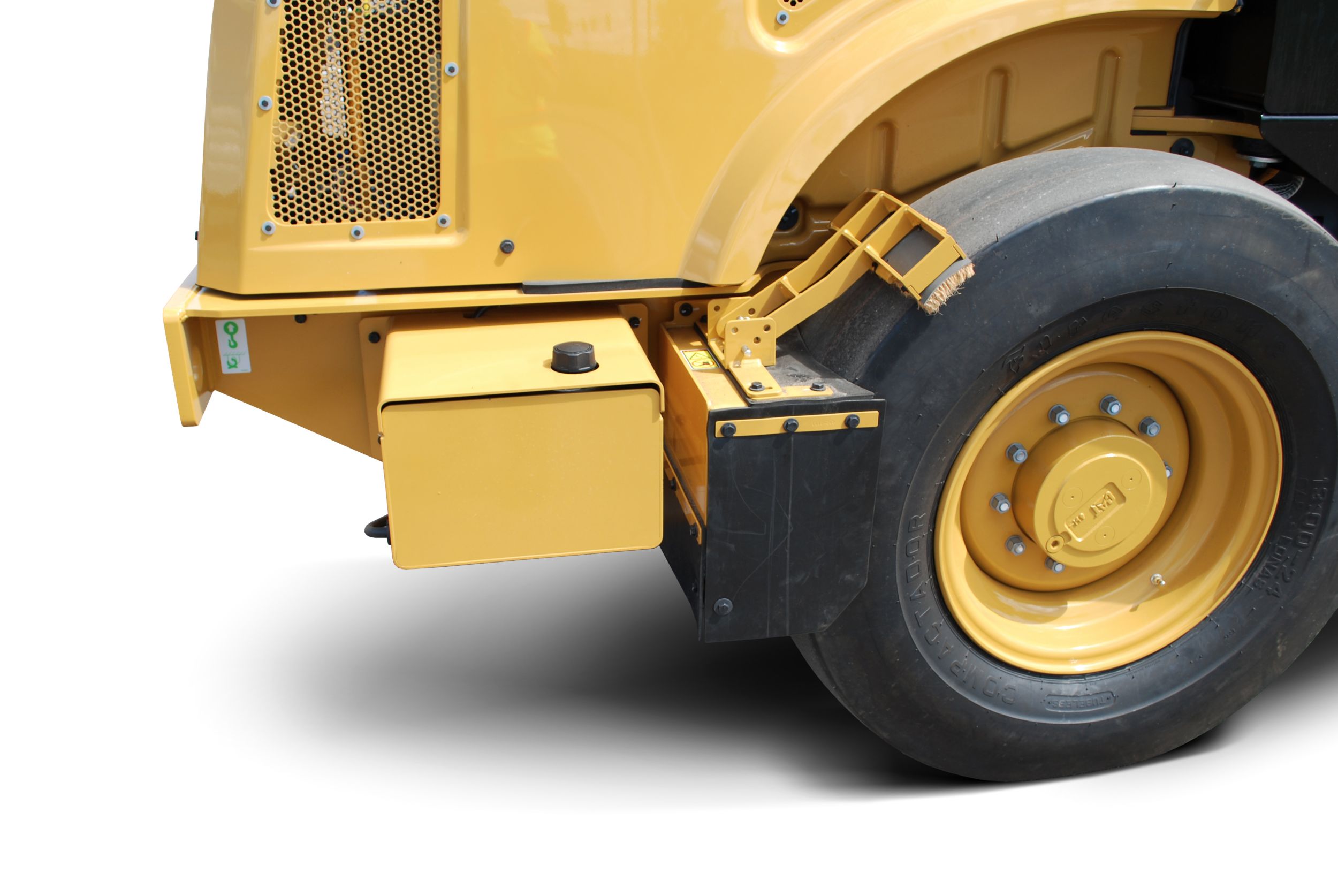

- Wheel Spray Tank
- 4 gal (US)
Dimensions
- Overall Length
- 16.8 ft
- Wheel Base
- 8.5 ft
- Overall Width
- 5.9 ft
- Drum Diameter
- 48 in
- Drum Width
- 84 in
- Height - With ROPS/FOPS or Cab
- 9.2 ft
Vibratory System
- Nominal Amplitude - High
- 0.036 in
- Nominal Amplitude - Low
- 0.014 in
- Centrifugal Force - Maximum
- 28101 lb
- Centrifugal Force - Minimum
- 11240 lb
- Vibratory Frequency - Standard
- 2520 V/m
Attachments
- Additional Rear-View Mirrors
- Beacon, Rotating
- Bio-oil Factory Fill
- Cab Internal Roll-Down Sun Screen
- Infra-Red Temperature Guage
- ROPS/FOPS Cab with Climate Control
- Sun Visor
- Water Distribution Mats (Cocoa, Rubber)
