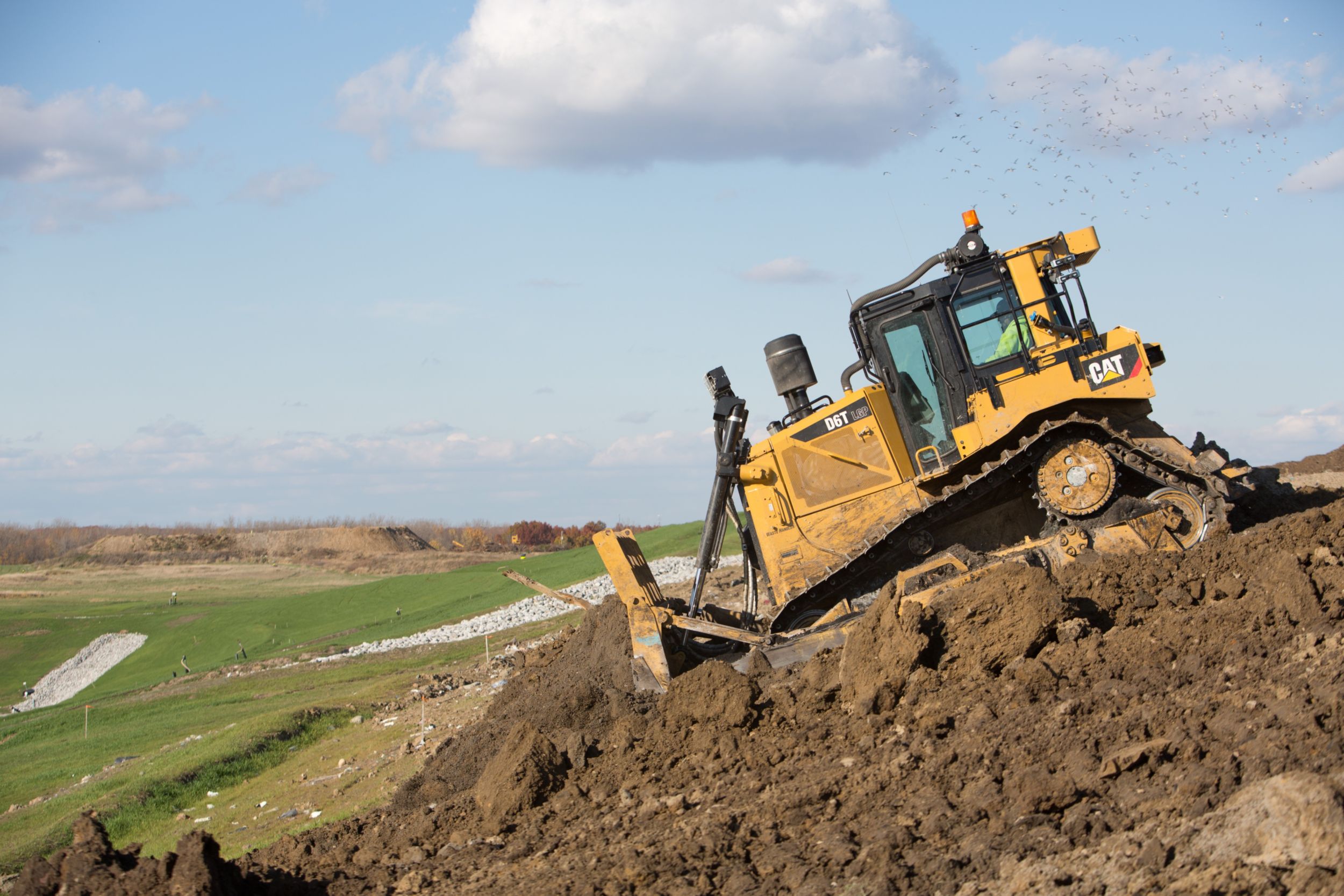

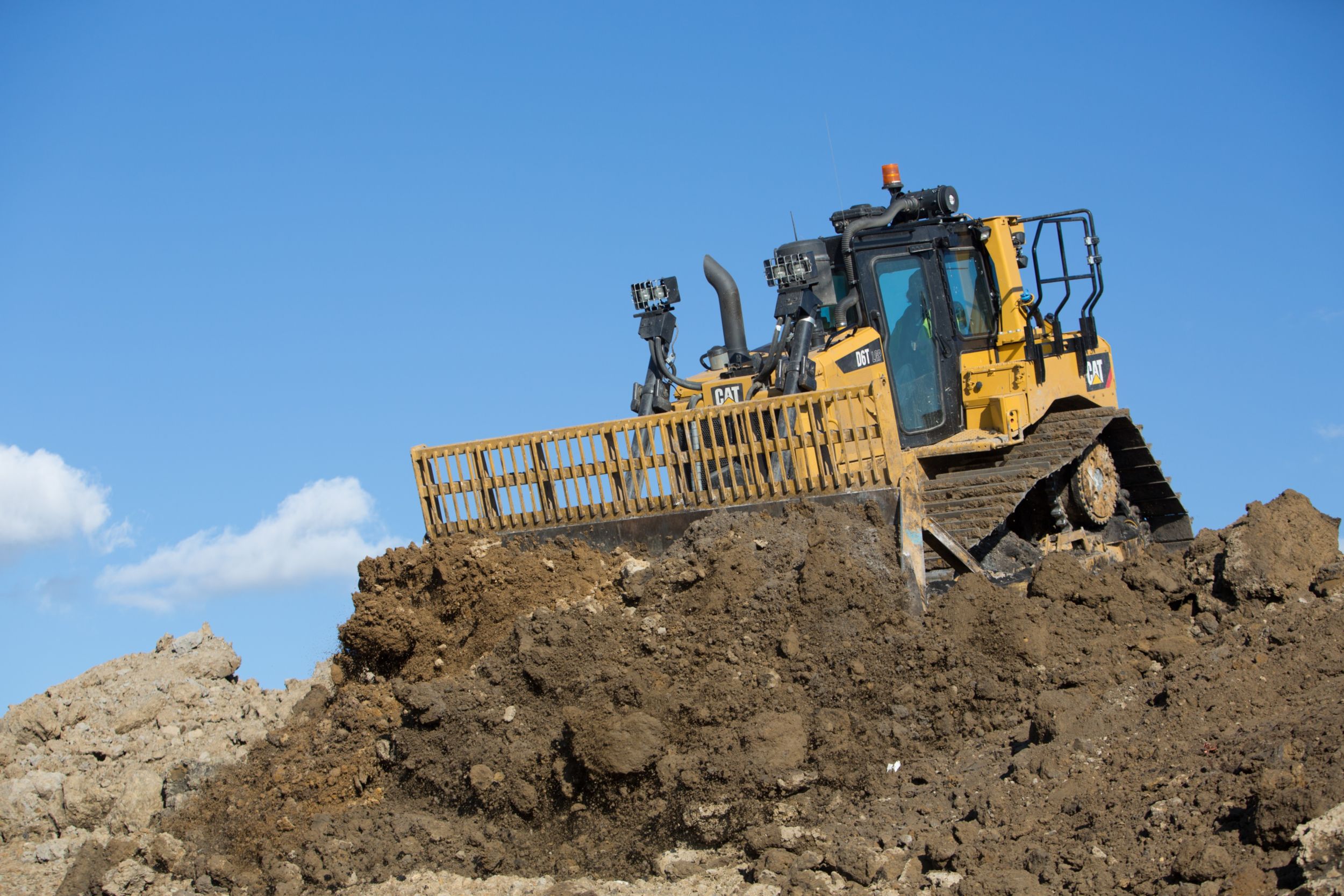

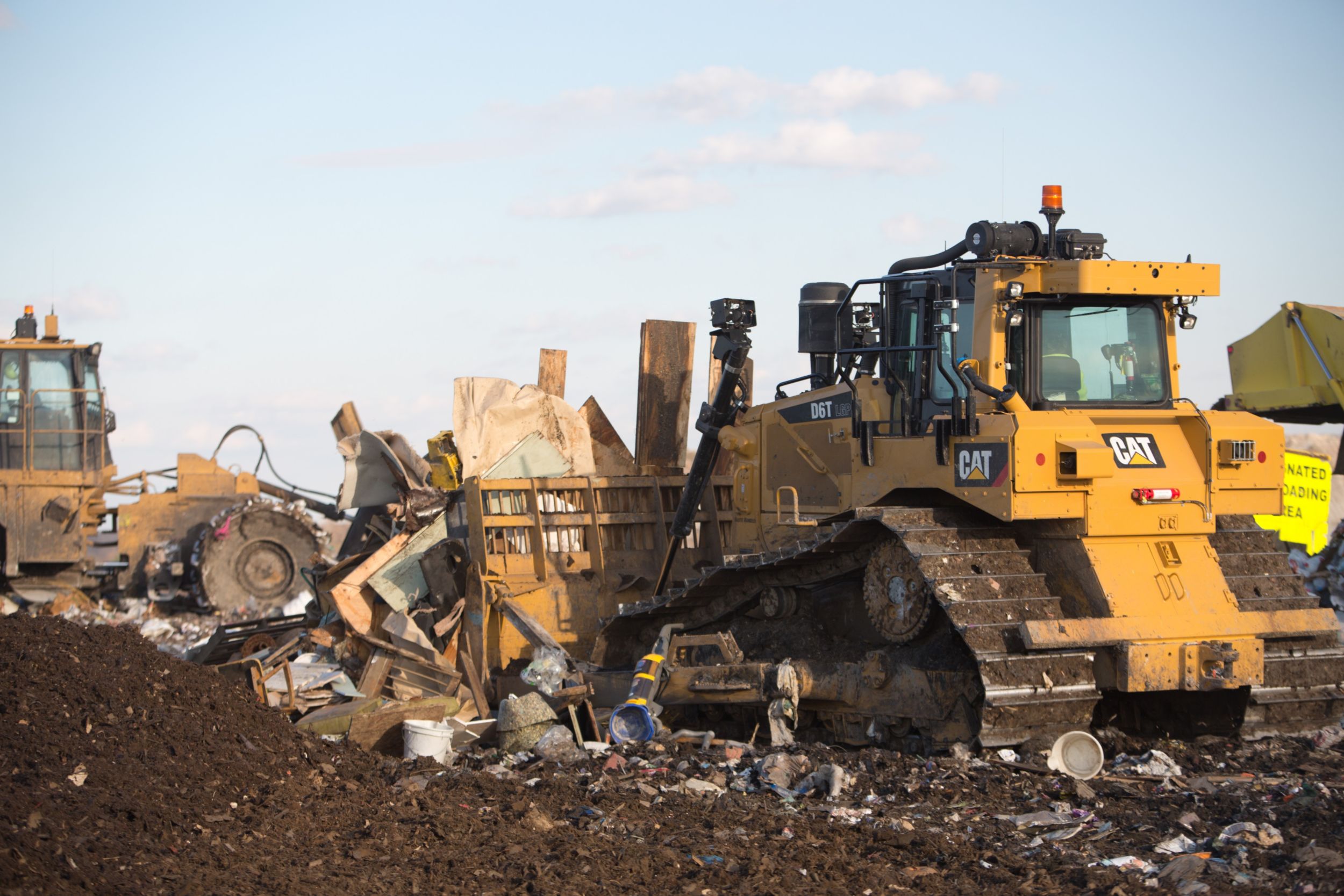

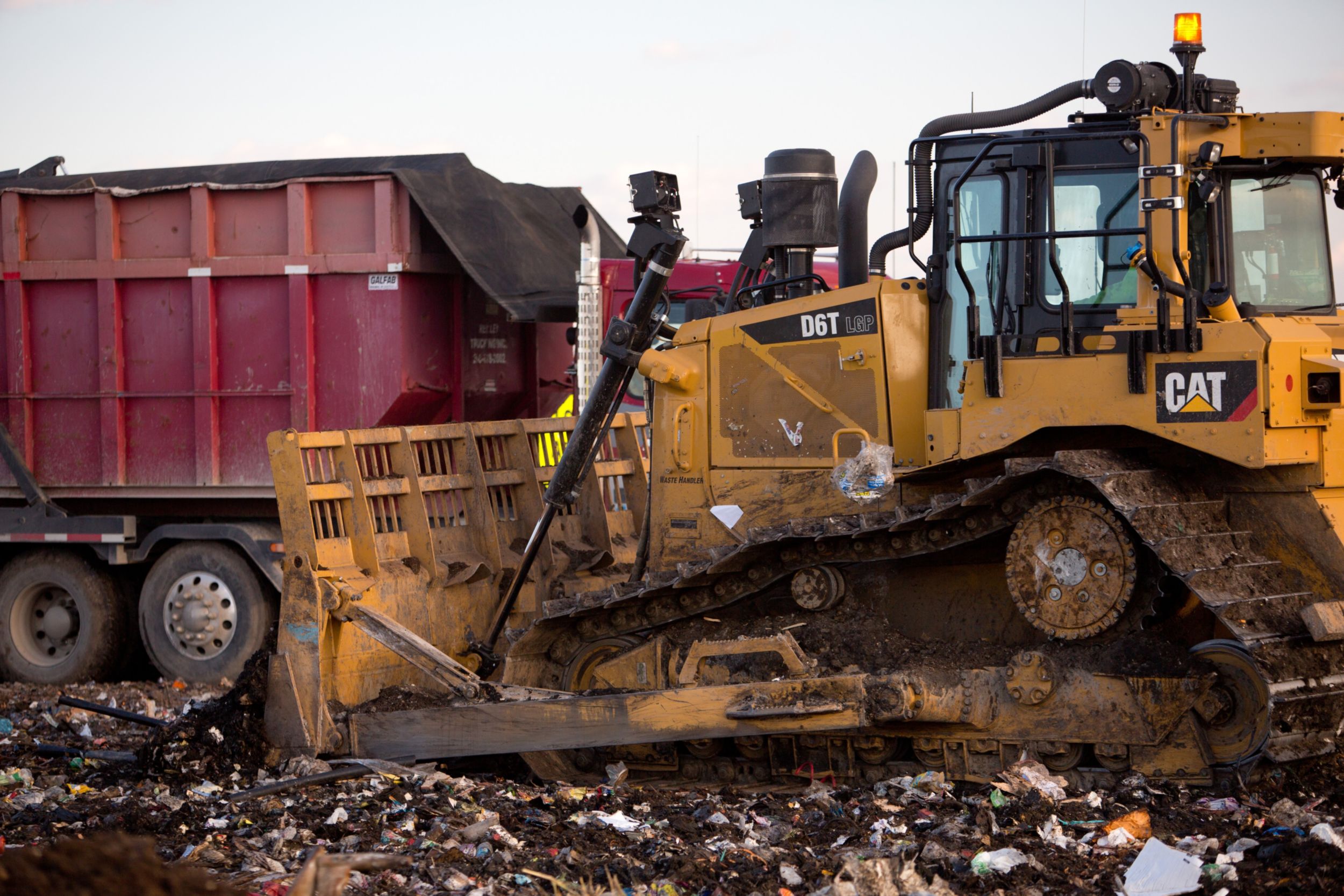

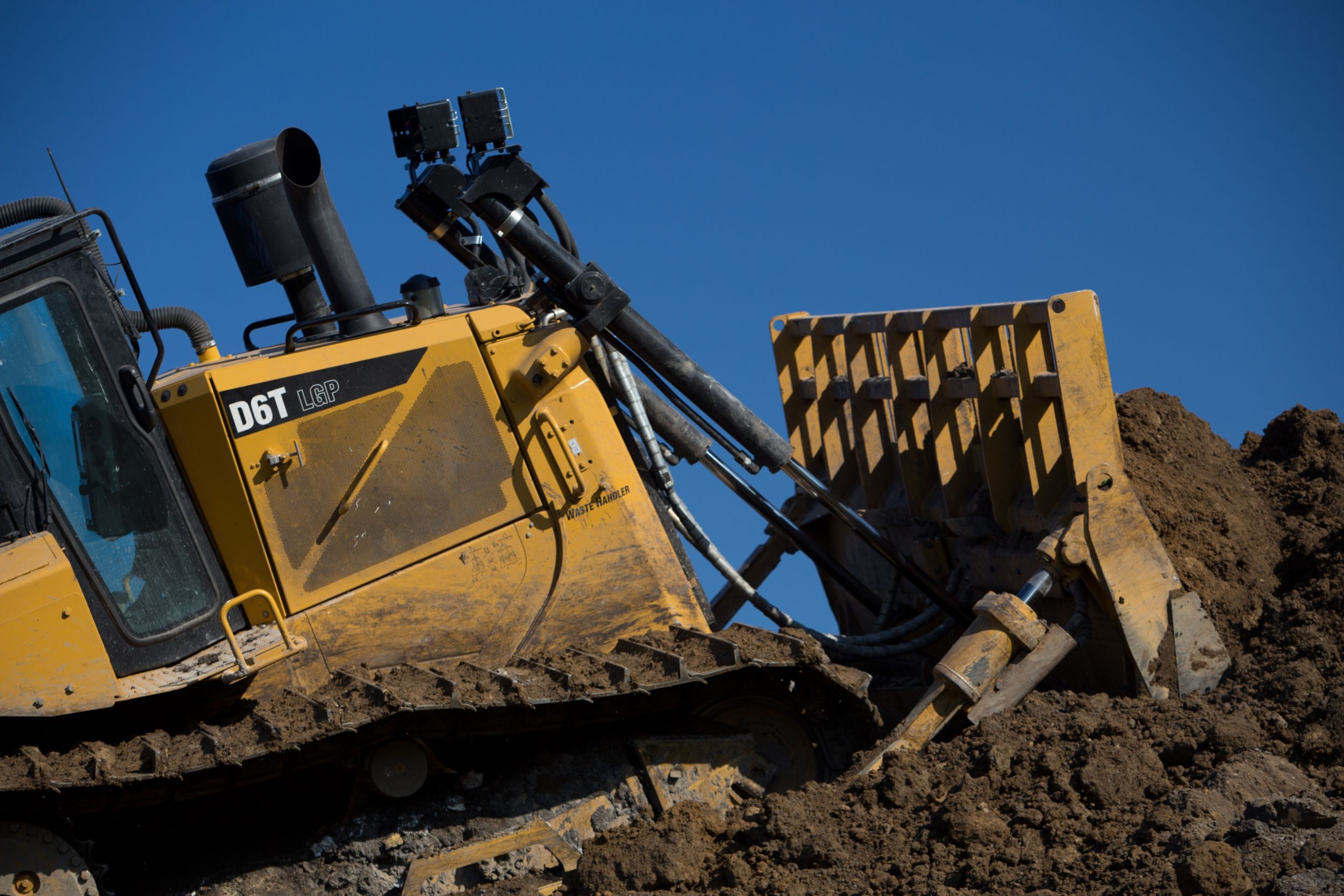

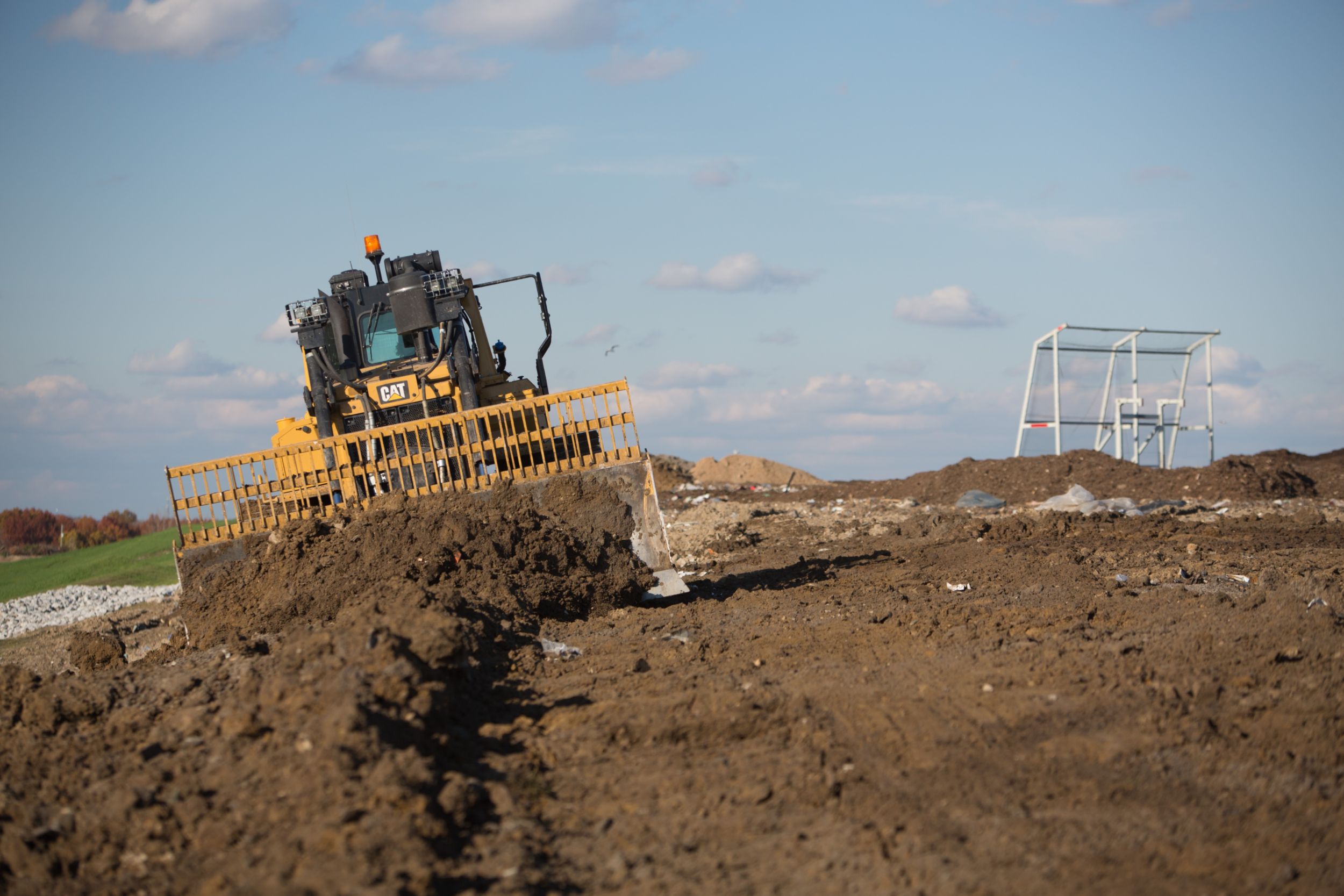

D6T WH Waste Handling Dozer

Engine

Engine Model

Cat C9.3 ACERT™

Flywheel Power

245 HP

Displacement

567.5 in³

Build Number

19

Emissions

U.S. EPA Tier 4 Final/EU Stage IV/Korea Tier 4 Final

Net Power - 2,200 rpm - ISO 9249/SAE J1349

215 HP

Net Power - 2,200 rpm - ISO 9249/SAE J1349 (DIN)

218 HP

Net Power - Maximum - ISO 9249/SAE J1349 (DIN) at 1,200 rpm

248 HP

Net Power - Maximum - ISO 9249/SAE J1349 at 1,200 rpm

245 HP

Note (1)

All non-road Tier 4 Interim and Final, Stage IIIB and IV, and Korea Tier 4 diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm EPA/10 ppm EU (mg/kg) sulfur or less. Biodiesel blends up to B20 (20% blend by volume

Note (2)

Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241.

Note (3)

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes.

Weights

Operating Weight

56063 lb

Landfill Blades - Width

6 SU - XW Landfill

11.7 ft

6 SU - XL Landfill

10.7 ft

6S LGP Landfill

13.3 ft

Dimensions

XL - Width of Tractor - Without Trunnions

8 ft

XL - Machine Height to Top of Precleaner

11.42 ft

XL - Length of Track on Ground

9.25 ft

XL - Length of Basic Tractor with Striker Bars

16.25 ft

XL - Ground Clearance

15 in

XL - Ground Pressure - ISO 16754

9.52 psi

XW - Width of Tractor - Without Trunnions

9.17 ft

XW - Machine Height to Top of Precleaner

11.42 ft

XW - Length of Track on Ground

9.25 ft

XW - Length of Basic Tractor with Striker Bars

16.25 ft

XW - Ground Clearance

15 in

XW - Ground Pressure - ISO 16754

7.26 psi

LGP - Width of Tractor without Trunnions

10.5 ft

LGP - Machine Height to Top of Precleaner

11.58 ft

LGP - Length of Track on Ground

10.67 ft

LGP - Length of Basic Tractor with Striker Bars

17.25 ft

LGP - Ground Clearance

16 in

LGP - Ground Pressure (ISO 16754)

5.57 psi

XW VPAT - Width of Tractor - Without Trunnions

9.83 ft

XW VPAT - Machine Height to Top of Precleaner

11.58 ft

XW VPAT - Length of Track on Ground

10.67 ft

XW VPAT - Length of Basic Tractor with Striker Bars

19.08 ft

XW VPAT - Ground Clearance

16 in

XW VPAT - Ground Pressure - ISO 16754

7.5 psi

LGP VPAT - Width of Tractor without Trunnions

10.33 ft

LGP VPAT - Machine Height to Top of Precleaner

11.58 ft

LGP VPAT - Length of Track on Ground

10.67 ft

LGP VPAT - Length of Basic Tractor with Striker Bars

19.08 ft

LGP VPAT - Ground Clearance

16 in

LGP VPAT - Ground Pressure (ISO 16754)

6.81 psi

Note (1)

Add 653 mm (25.7 in)/615 mm (24.2 in) for ripper on short track roller frame and long track roller frame machines respectively.

Note (2)

Add if blade is installed: SU 1068 mm (3 ft 6 in); XL A 1007 mm (3 ft 4 in); XW A 1068 mm (3 ft 6 in); LGP A 1305 mm (4 ft 4 in); VPAT 420 mm (1 ft 5 in). Dimension to subtract if striker box is not installed: XL = 727 mm (29 in); LGP = 709 mm (28 in).

Features

Note

For complete machine features and available configurations, please consult your Cat dealer or visit www.cat.com.

Operating Weights

LGP S

56063 lb

LGP VPAT

59204 lb

Note

Operating Weight – ISO 16754

XL SU

51652 lb

XW SU

53423 lb

XW VPAT

58723 lb

Landfill Blades - Capacity

6 SU - XL Landfill

14.4 yd³

6 SU - XW Landfill

15.84 yd³

6S LGP Landfill

12.33 yd³
