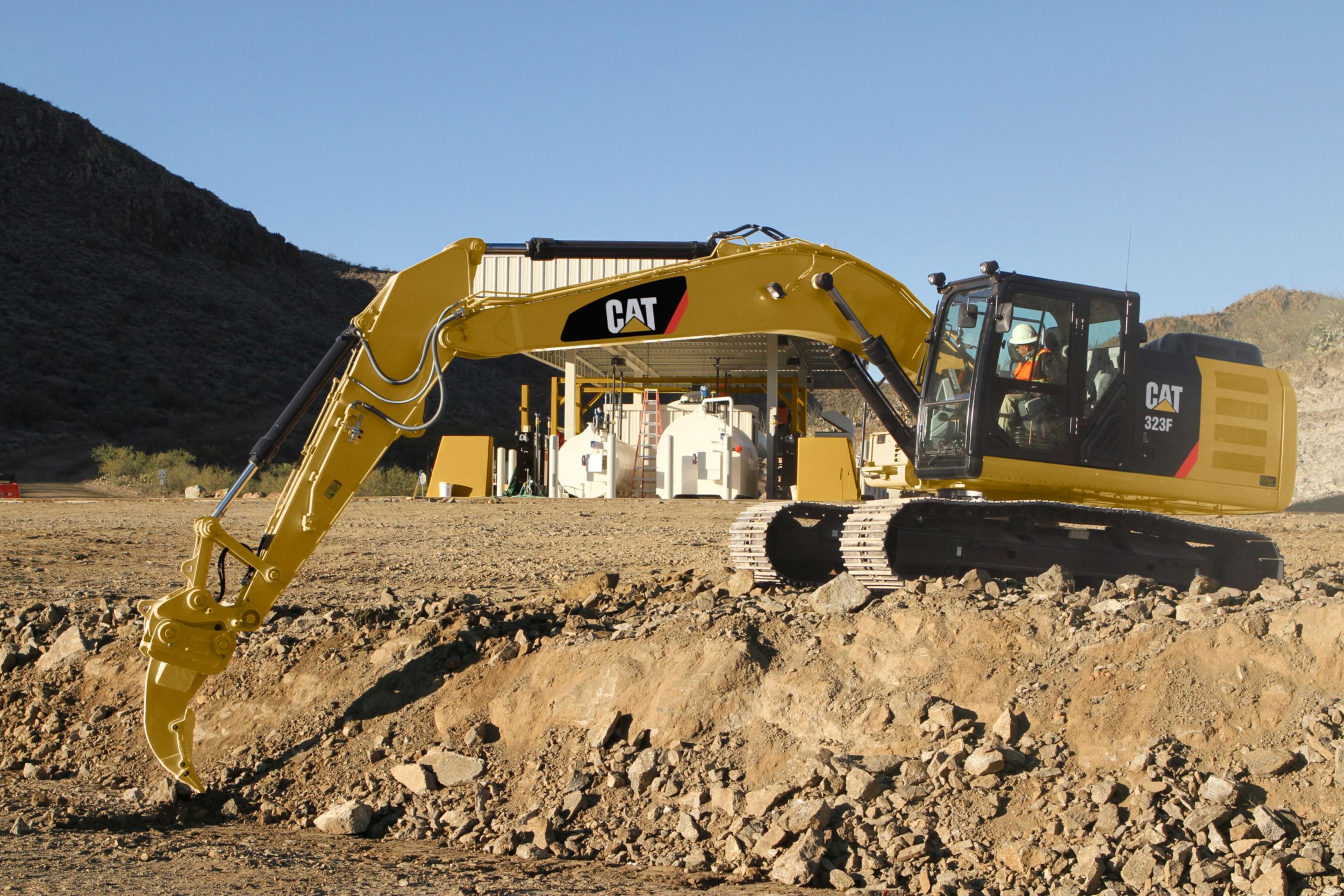

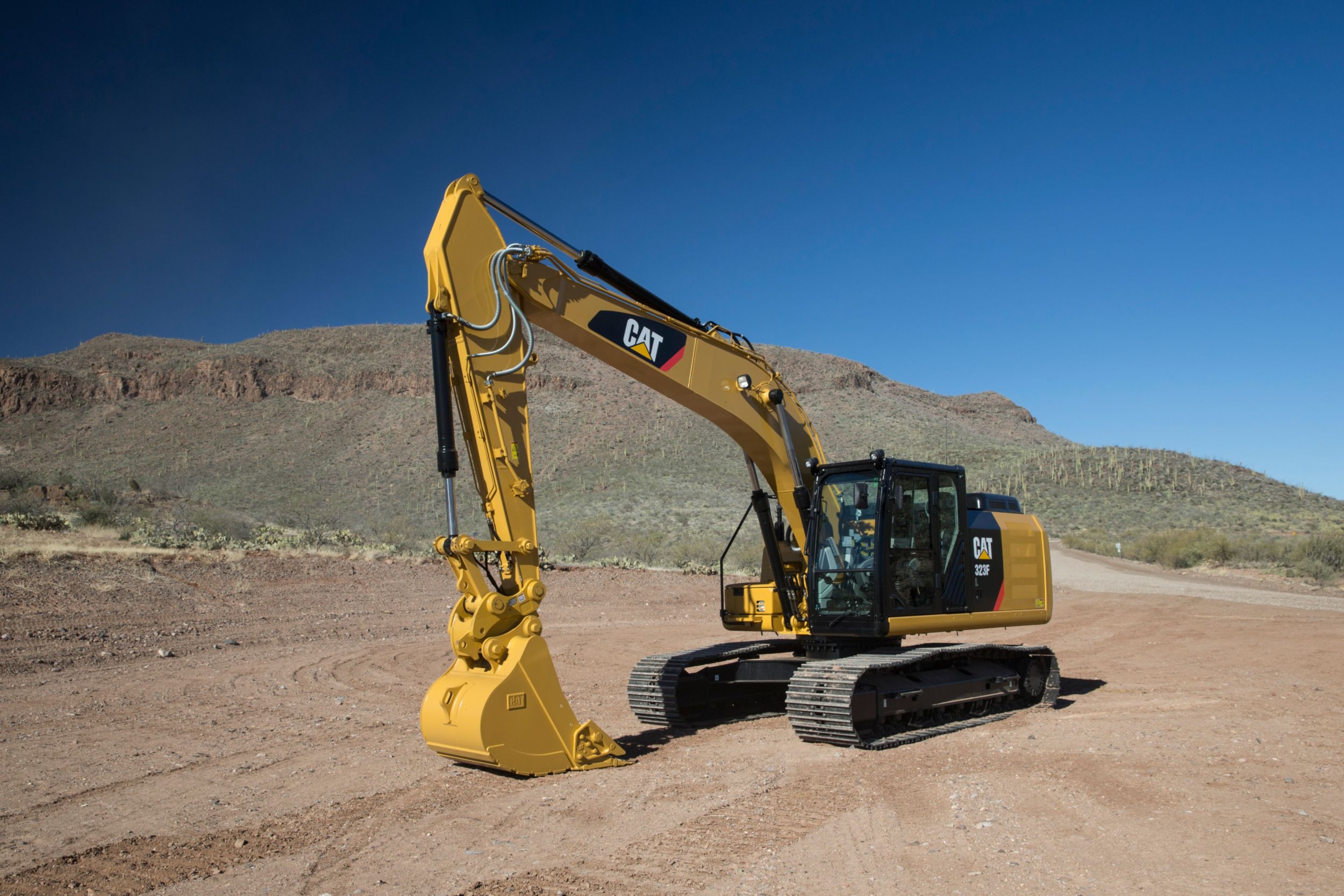

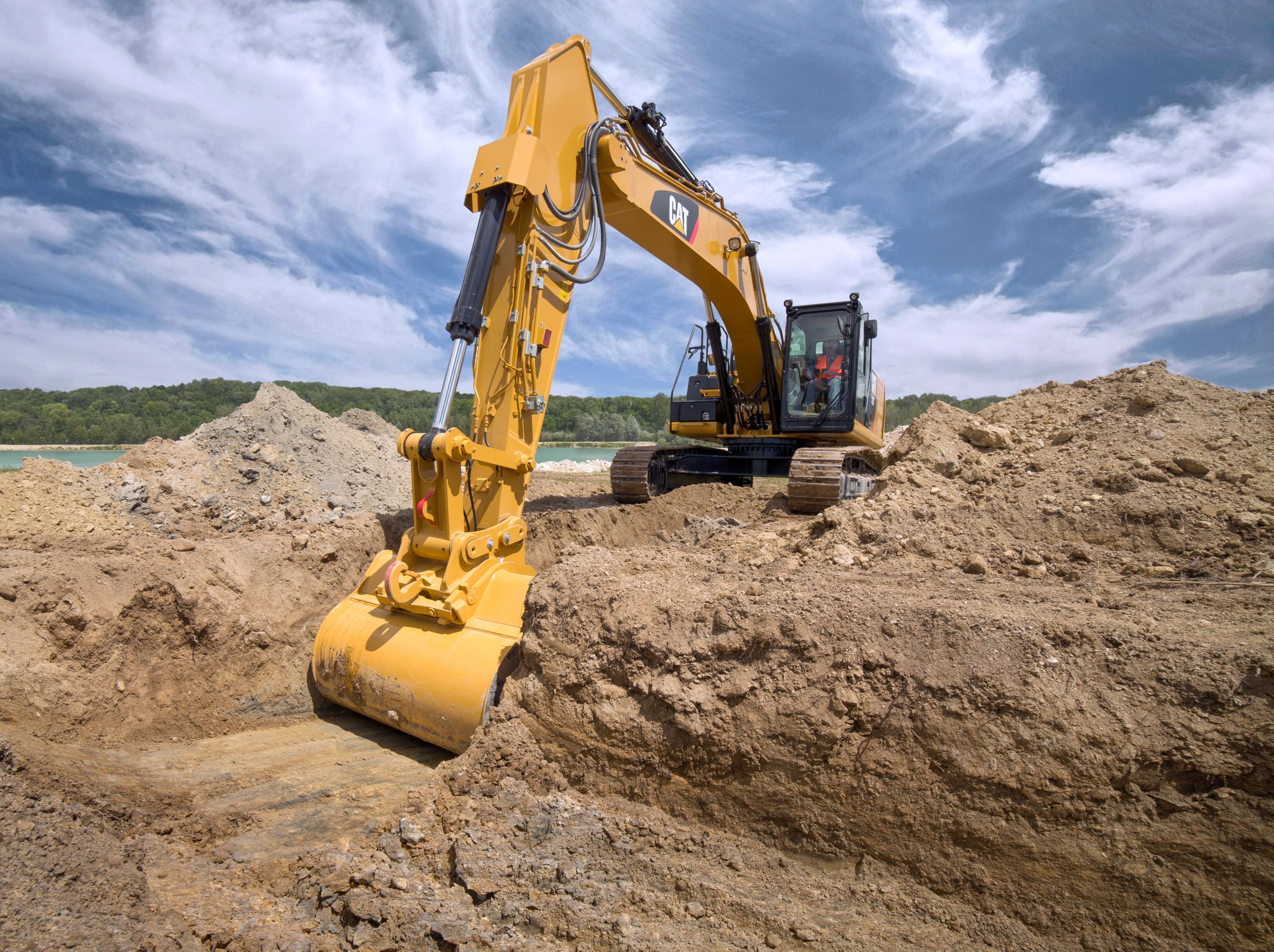

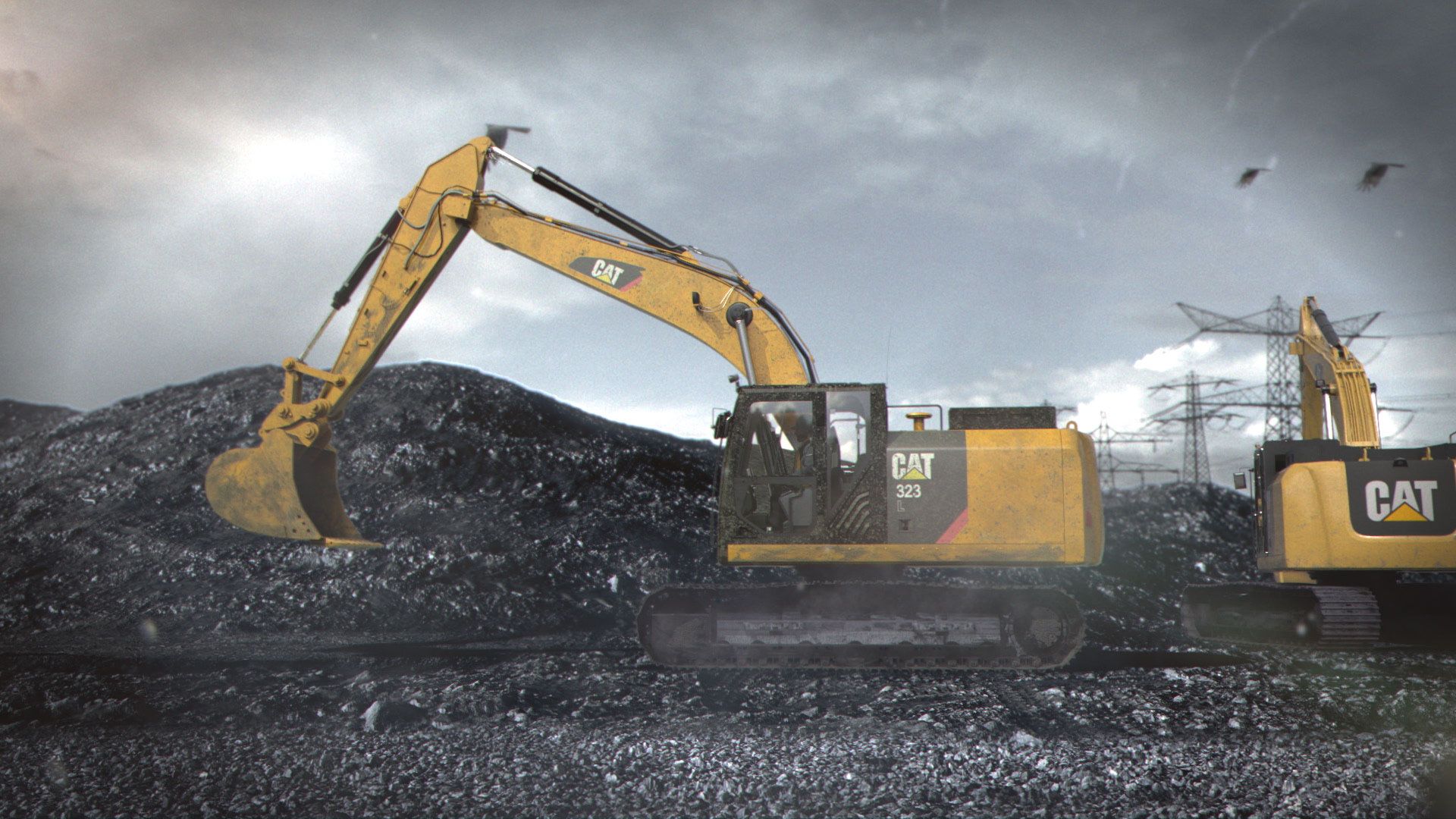

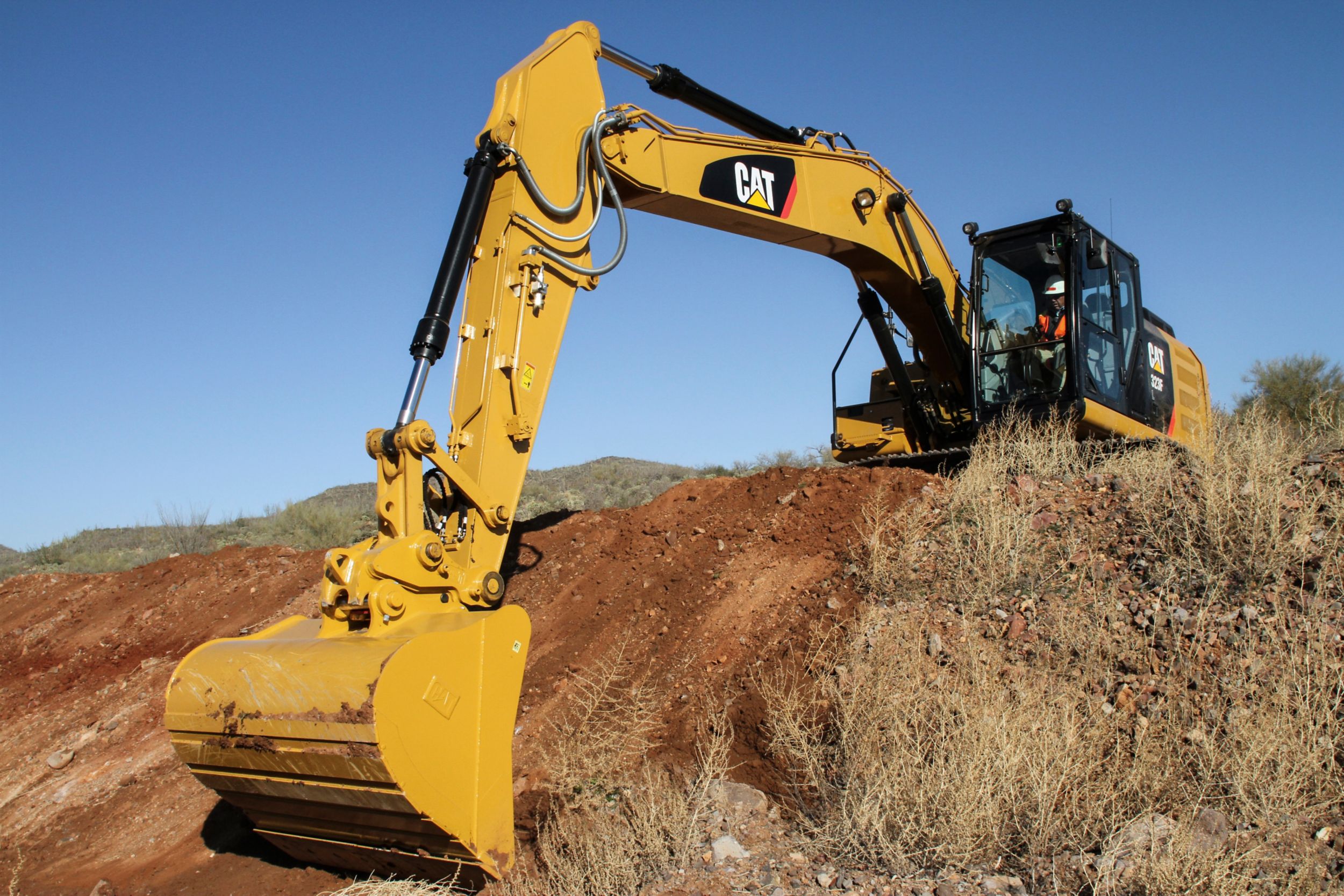

Exterior View
Product Specs
Engine
- Engine Model
- Cat C7.1 ACERT
- Net Flywheel Power
- 161 hp
- Bore
- 4.1 in
- Stroke
- 5.3 in
- Displacement
- 433 in³
- Gross Power - SAE J1995
- 164 hp
- Net Power - SAE J1349
- 161 hp
- Engine RPM - Operation
- 1500 r/min
- Engine RPM - Travel
- 1800 r/min
Weights
- Operating Weight
- 50900 lb
- Note
- Long undercarriage, 4.1 mt (4.5 t) counterweight, R5.7 (18'8") boom, R2.9 (9'6") stick, HD 1.19 m3 (1.56 yd3) bucket and 790 mm (31 in) HD shoes.
Drive
- Maximum Drawbar Pull
- 46090 lbf
- Maximum Travel Speed
- 3.4 mile/h
Service Refill Capacities
- Fuel Tank Capacity
- 108.3 gal (US)
- Cooling System
- 7.9 gal (US)
- Engine Oil
- 6.6 gal (US)
- Final Drive - Each
- 2.1 gal (US)
- Hydraulic System - Including Tank
- 68.7 gal (US)
- Hydraulic Tank
- 42 gal (US)
- DEF Tank
- 5.3 gal (US)
- Swing Drive - Each
- 2.1 gal (US)
Dimensions - HD Reach Boom - 5.7 m (18'8)
- Shipping Height
- 10.25 ft
- Shipping Length
- 31.33 ft
- Tail Swing Radius
- 9.25 ft
- Length - Center of Rollers
- 12 ft
- Track Length
- 14.67 ft
- Ground Clearance
- 1.5 ft
- Track Gauge
- 7.83 ft
- Transport Width - 600 mm (24 in) Shoes
- 9.75 ft
- Transport Width - 700 mm (28 in) Shoes
- 10.08 ft
- Transport Width - 790 mm (31 in) Shoes
- 10.42 ft
- Handrail Height
- 9.92 ft
- Counterweight Clearance
- 3.33 ft
- Note
- With HD 1.19 m3 (1.56 yd3) bucket and 790 mm (31 in) shoes.
Working Ranges - HD Reach Boom - 5.7 m (18'8)
- Maximum Digging Depth
- 22.08 ft
- Maximum Reach - Ground Level
- 32.33 ft
- Maximum Cutting Height
- 30.75 ft
- Maximum Loading Height
- 21.33 ft
- Minimum Loading Height
- 7.08 ft
- Maximum Vertical Wall Digging Depth
- 16.58 ft
Dimensions
- Maximum Depth Cut for 2440 mm (8'0") Level Bottom
- 21.5 ft
Swing
- Swing Speed
- 11 r/min
- Swing Torque
- 45580 ft·lbf
Hydraulic System
- Main System - Maximum Flow - Total
- 112 gal/min
- Maximum Pressure - Swing
- 3698 psi
- Maximum Pressure - Travel
- 5076 psi
- Pilot System - Maximum Flow
- 5.3 gal/min
- Pilot System - Maximum Pressure
- 569 psi
- Maximum Pressure - Equipment - Heavy Lift
- 5511 psi
- Maximum Pressure - Equipment - Normal
- 5076 psi
Sound Performance
- ISO 6395 - Spectator Noise
- 100 dB(A)
- ISO 6396 - Operator Noise (Closed)
- 68 dB(A)
