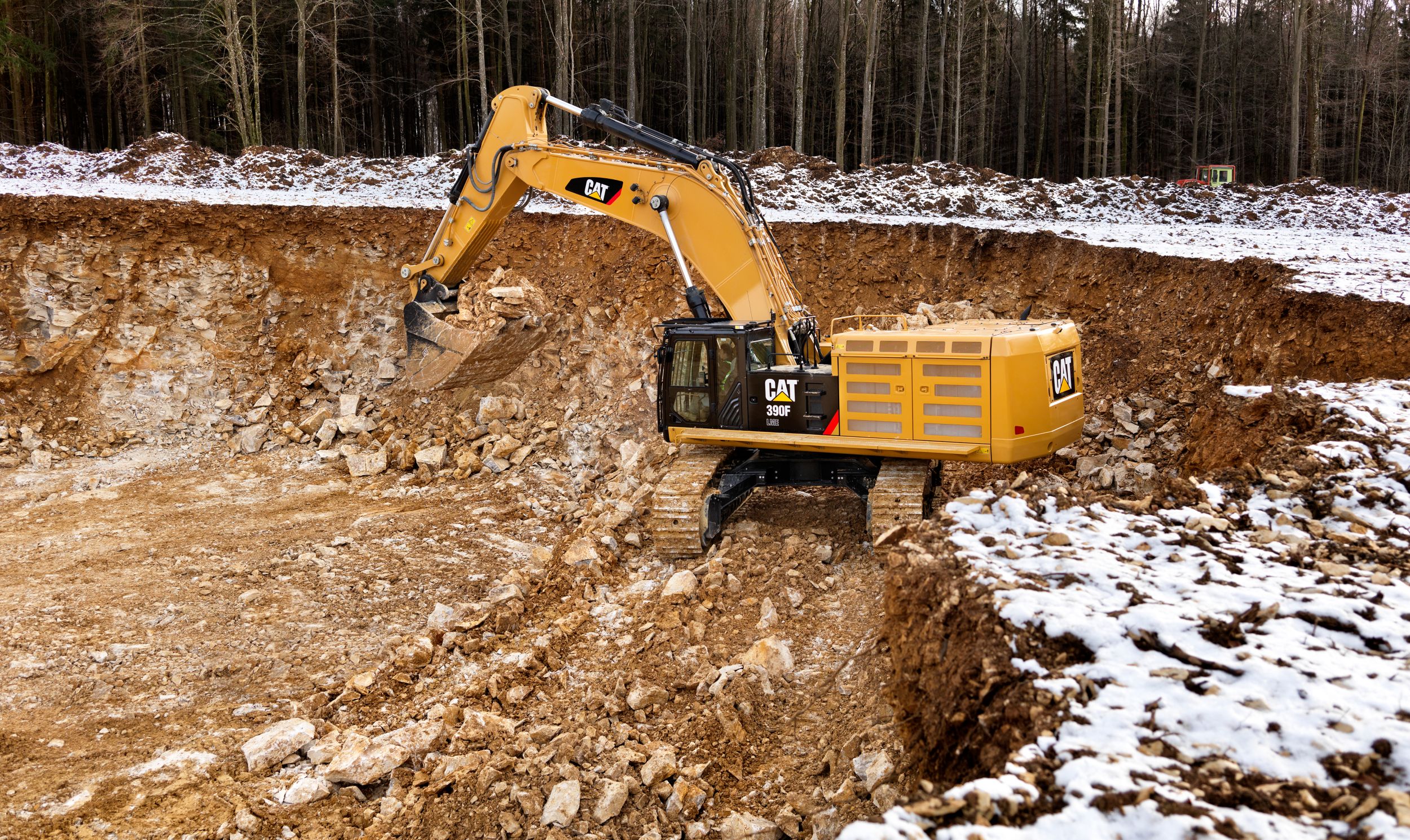

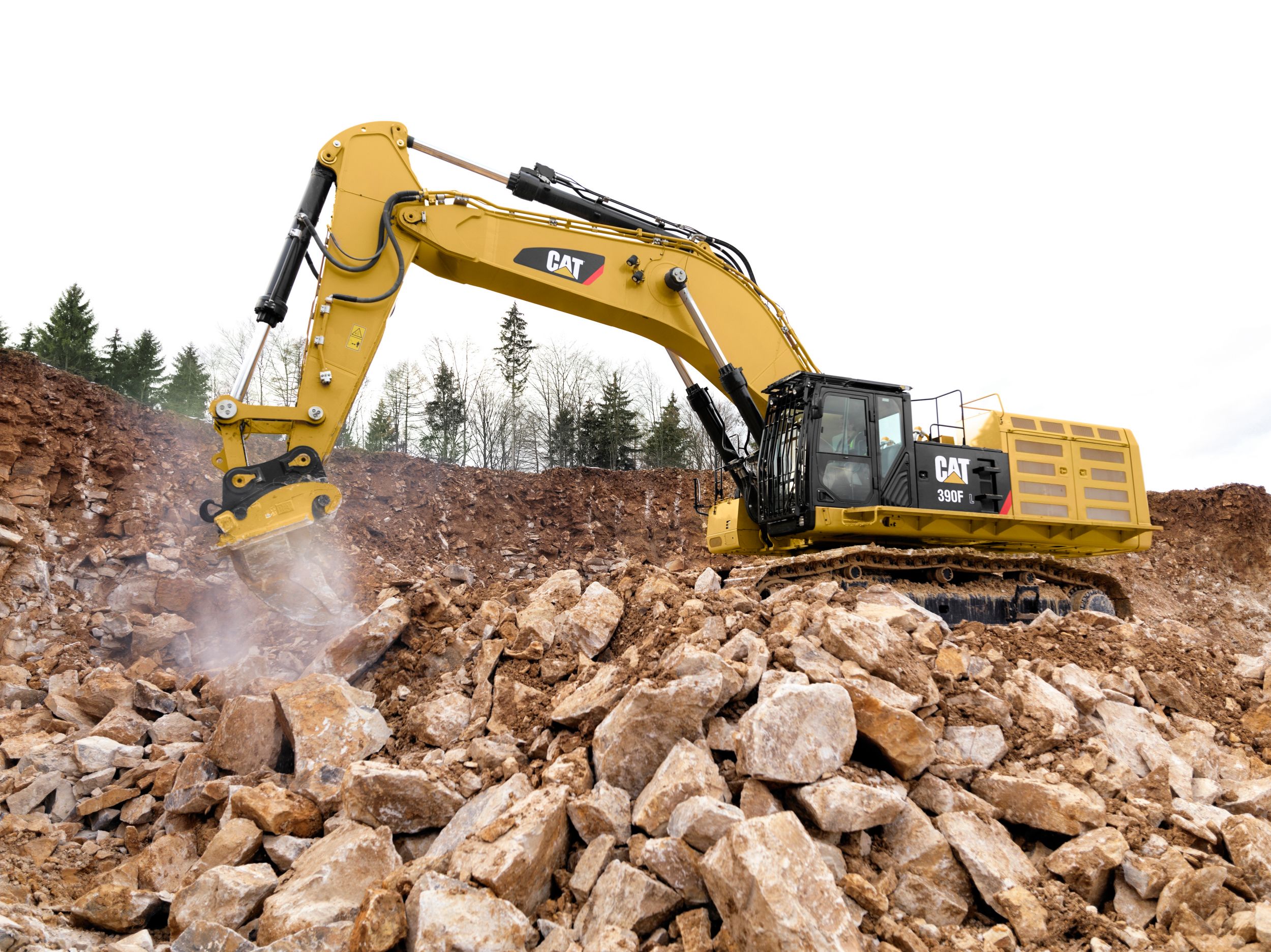

Exterior View
Product Specs
Engine
- Engine Model
- Cat C18 ACERT
- Net Flywheel Power
- 524 hp
- Bore
- 5.7 in
- Stroke
- 7.2 in
- Displacement
- 1104.5 in³
- Net Power - SAE J1349
- 391 kW (524 hp/532 PS)
Weights
- Operating Weight
- 192680 lb
Drive
- Maximum Travel Speed
- 2.8 mile/h
- Maximum Drawbar Pull
- 132637 lbf
Service Refill Capacities
- Fuel Tank Capacity
- 328 gal (US)
- Cooling System
- 20 gal (US)
- Engine Oil
- 16 gal (US)
- Swing Drive - Each
- 5 gal (US)
- Final Drive - Each
- 5.5 gal (US)
- Hydraulic System - Including Tank
- 263 gal (US)
- Hydraulic Tank
- 215 gal (US)
- DEF Tank
- 13 gal (US)
Machine Weight
- Operating Weight*
- 192680 lb
- Note
- *Reach 10 m (32'10") boom, R4.4m (14'5") stick, 3.9 m3 (5.1 yd³) bucket and 650 mm (26") shoes.
Swing
- Swing Speed
- 6.2 r/min
- Swing Torque
- 191766 ft·lbf
Dimensions - Reach Boom - 10.0 m (32'10)
- Length - Center of Rollers
- 16.83 ft
- Shipping Length
- 53.58 ft
- Tail Swing Radius
- 15.42 ft
- Track Length
- 20.83 ft
- Cab Height
- 12.04 ft
- Counterweight Clearance
- 5.42 ft
- Ground Clearance
- 2.92 ft
- Shipping Height
- 16.67 ft
- Track Gauge
- 9 ft
- Transport Width - 650 mm (26 in) Shoes
- 13.67 ft
- Transport Width - 900 mm (35 in) Shoes
- 14.5 ft
Hydraulic System
- Maximum Flow - Travel
- 281 gal/min
- Main System - Maximum Flow - Total
- 251 gal/min
- Maximum Pressure - Equipment
- 5076 psi
- Maximum Pressure - Travel
- 5076 psi
- Maximum Pressure - Swing
- 5076 psi
- Pilot System - Maximum Flow
- 17.7 gal/min
- Pilot System - Maximum Pressure
- 638 psi
Sound Performance
- Exterior - ISO 6395
- 109 dB(A)
- Operator - SAE J1166/ISO 6396
- 74 dB(A)
Working Ranges - Reach Boom - 10.0 m (32'10)
- Maximum Cutting Height
- 48.42 ft
- Maximum Digging Depth
- 35.08 ft
- Maximum Loading Height
- 34.58 ft
- Maximum Reach - Ground Level
- 53.25 ft
- Maximum Vertical Wall Digging Depth
- 18.75 ft
- Minimum Loading Height
- 14.5 ft
