Product Specs

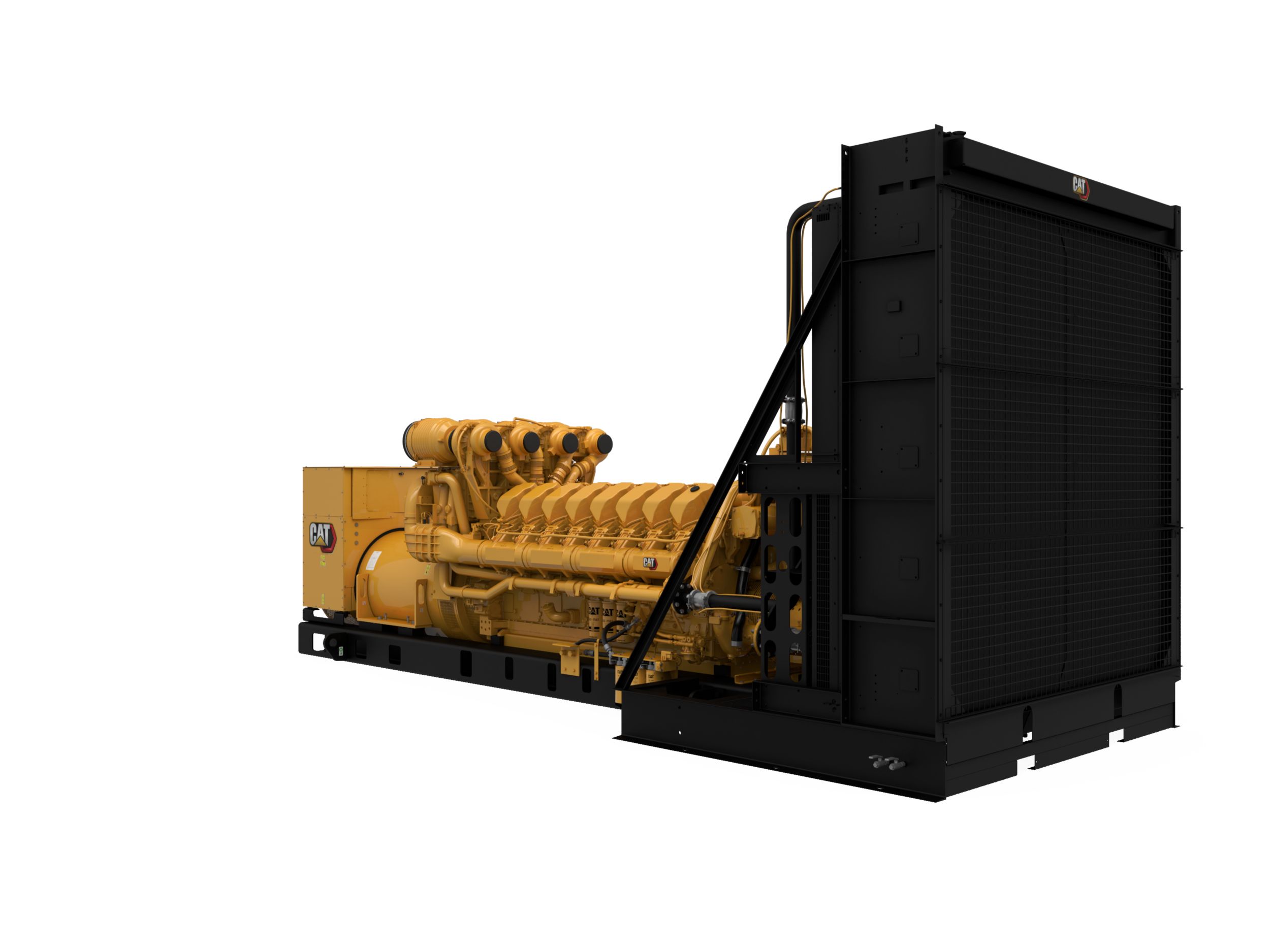

Generator Set Specifications
- Standby Rating
- 3365(no fan)/3250/3100(no fan)/3000 ekW
- Prime Power Rating
- 3115(no fan)/3000/2825(no fan)/2725 ekW
- Emissions/Fuel Strategy
- Low Fuel, Tier 2
- Voltage
- 480 to 13800 Volts
- Frequency
- 60 Hz
- Speed
- 1800 RPM
- Duty Cycle
- Standby, Mission Critical, Prime, Continuous
- Maximum Rating
- 3365 ekW
- Minimum Rating
- 2500 ekW
Engine Specifications
- Engine Model
- C175-16 SCAC, V-16, 4-Stroke Water-Cooled Diesel
- Bore
- 6.89 in
- Stroke
- 8.66 in
- Displacement
- 6456.31 in³
- Compression Ratio
- 16.7:1
- Aspiration
- Turbo Aftercooled
- Fuel System
- Common Rail
- Governor Type
- ADEM� A4
Generator Set Dimensions
- Length - Minimum
- 241.6 in
- Length - Maximum
- 312.9 in
- Width - Minimum
- 83.1 in
- Width - Maximum
- 113.7 in
- Height - Minimum
- 87 in
- Height - Maximum
- 134.3 in
- Dry Weight - Genset (minimum)
- 42750 lb
- Dry Weight - Genset (maximum)
- 50500 lb
Standard Equipment
-
- Air Inlet System
-
- 4 x Single element canister with service indicator(s).
-
- Control Panel
-
- 2 Programmable relay outputs (Form C)
- Low coolant level
- Over/under voltage
- Coolant temperature
- Serial annunciator module data link
- Alarm acknowledge
- Text alarm/event descriptions
- Volts (L-L & L-N)
- Reverse power
- Over/under frequency
- Environmental sealed front face
- Programmable protective relaying functions
- Speed adjust
- Generator phase sequence
- Low coolant temperature
- Generator mounted - rear facing
- Overspeed
- Controls
- Frequency (Hz)
- Engine cycle crank
- Engine cool-down timer
- Warning/shutdown Indicators:
- Lamp test
- 2 Programmable digital outputs
- 6 Programmable digital inputs
- High coolant temperature
- Customer data link (Modbus RTU)
- Auto/start/stop control
- Emergency stop pushbutton
- RPM
- Digital Indicators
- Communications
- Accessory module data link
- Oil pressure (psi, kPa or bar)
- Low oil pressure
- Overcurrent
- Emergency stop
- 24 Volt DC operation
- 4 Programmable relay outputs (Form A)
- Failure to start (overcrank)
- True RMS AC metering, 3-phase, +/-2% accuracy
- Power factor (per phase & average)
- Operating hours
- DC volts
- Amps (per phase & average)
- Cat ECS 100
- Reverse reactive power
-
- Exhaust System
-
- Bolted flange, with bellow for each turbo
- Exhaust flange outlet
-
- Fuel System
-
- Engine mounted filters #REF!
- Filters x 3
- 10 Micron spin on yype
- Secondary/tertiary fuel filters
- 4 Micron spin on type
- Primary fuel filter water/fuel water separator
-
- Generators And Attachments
-
- Right side extension box, bottom cable entry
- IEC platinum stator RTDs
- Reactive droop capability
- 3 Phase voltage sensing
- (MV) Busbar connections, right side extension box, bottom cable entry
- Class F temperature rise at 40C ambient
- Anti-condensation space heater
- NEMA Class H insulation
- 6 Leads
- Class H temperature rise at 40C ambient
- Voltage regulator
- Exciter diode monitor
- Form wound
- RFI suppression
- (LV) Busbar connections, top/center mounted, top cable entry
- 3 Phase brushless
- 60 Hz models: NEMA standard hole pattern
- Permanent magnet excitation (PMG)
- Min / max exciter limiter
- Salient pole
-
- Governing System
-
- Redundant shutdown (Overspeed protection through a duplicate speed sensing system)
- ADEM A4
-
- Lube System
-
- Oil filter, filler and dipstick
- Integral lube Oil cooler
- Oil drain lines and valve
- Fumes disposal
- Lubricating oil
- Prelube - required with prime, continuous, and standby
- Gear type lube oil pump
-
- Mounting Systems
-
- Rails - Engine/generator
- Rubber anti-vibration mounts - shipped loose
- Dual 24 volt electric starting motors
- Battery disconnect switch
- Batteries and battery rack w/cables
-
- Power Termination
-
- Busbar
-
- Service Instructions
-
- Two PM inspections
-
- General
-
- Paint - Caterpillar yellow with high gloss black rails & radiator
- SAE standard rotation
- LH Service
- Flywheel and flywheel housing-SAE No. 00
Attachments
-
- Air Inlet System
-
- Air inlet adapters
- Dual element air cleaner
- Single element air cleaner
- Air inlet protection
-
- Control Panel
-
- Package mounted radiator
- Automatically selected ground
- Customer AC-DC connection mounting location - LV/MV
- Load share governor
- EMCP 4.4
- E-Stop
- Frame boxes
- Annunciator modules
- Load share module / auxiliary plate and auxiliary box (LV)
- Fuel cooler
- Controller mounting location - LV/MV
- Modbus monitoring of packages
- Customer interface options
- EMCP 4.4 optional harness
- Controller voltage and current sensing groups
- Remote radiators
- Generator harness
- Interconnect harness
- Speed adjust
- Controller and MV and HV power connection locations
- Raise lower switch
-
- Crankcase Systems
-
- Explosive relief valves
- Crankcase ventilation system
-
- Exhaust System
-
- Mufflers
- Exhaust support group
- Weld flanges
- Exhaust collectors/manifold
- Front housing - Prime or continuous
- Front housing - Standby or mission critical
- Aftercooler drain
-
- Fuel System
-
- Primary fuel filter
-
- Generators And Attachments
-
- Low voltage - 1800 and 3000 Frames - 60 Hz, 3 phase, 1800 rpm, FW, PM, No of leads=6, Pitch 0.6667
- Medium voltage - 1800 and 3000 Frames - 60 Hz, 3 phase, 1800 rpm, FW, PM, No of leads=6, Pitch 0.6667
- Conversion GP - Top cable entry
- Low voltage - 1800 and 3000 Frames - 50 Hz, 3 phase, 1500 rpm, FW, PM, No of leads=6, Pitch 0.6667
- Differential current transformers
- Space heater kit
- Medium voltage - 1800 and 3000 Frames - 50 Hz, 3 phase, 1500 rpm, FW, PM, No of leads=6, Pitch 0.6667
- Thermostat for space heater
- Generator air intake
-
- Instrumentation
-
- Pyrometer and thermocouples
-
- Lube System
-
- Drain group oil pans
- Oil filters
- Lube oil heater
- Electric prelube pumps
- Lubricating oil
-
- Mounting Systems
-
- IBC vibration isolators - Shipped loose
- Spring type linear vibration isolators
- Rubber anti-vibration mounts
-
- Power Connections
-
- Low voltage connection cable
- Center post busbarss (LV)
- 1800 Frame generator side / rear mounted busbars (MV)
- Enclosures - Control packaging (LV)
- Paralleling circuit breakers
- 1800 Frame generators Circuit breaker
- Neutral ground (LV)
- Neutral ground (MV)
- Cable entry options (LV)
- Cable entry options (MV)
- Masterpack breakers
- Power connection covers (LV)
- Harnesses (Breaker)
- Masterpack breaker connections
- Side/rear mounted busbars (LV)
-
- Special Tests / Reports
-
- IBC seismic Certification
- Special test charge - Engine only
- PGS Test report @ 0.8 power factor
- Genset fuel consumption test
- Standard genset TVA (Torsional Vibration Analysis) report
- PGS Test report @ 1.0 power factor
- OSCOSH1 seismic Certification
- Custom generator TVA report
- Generator test report
- Standard engine test charge
-
- Starting / Charging System
-
- Heavy duty battery sets with rack
- Charging alternators - Dry
- Air pressure regulator
- Starter location covers
- 24 Volt power distribution box
- 24 Volt electric starting motor
- 35 Amp Battery chargers
- 24 Volt battery set - Dry
- 20 Amp Battery chargers
- Jacket water heaters
- 50 Amp Battery chargers
- Air starting motor
- Jacket water heater wiring groups
-
- General
-
- Special paint colors
- Control GP - air powered bar group
- Barring group manual
- Service tools - Engine barring group
- Engine barring air powered
