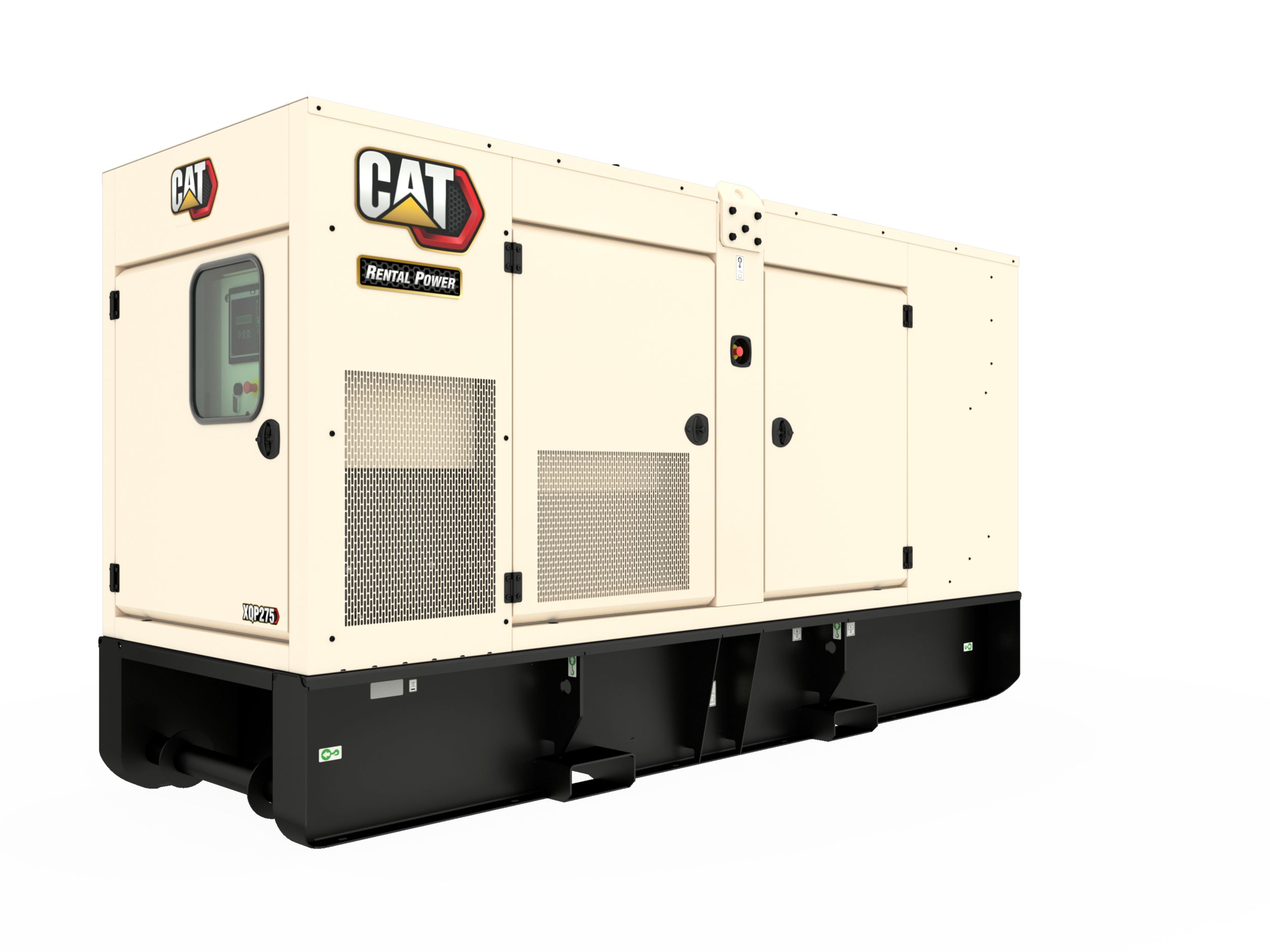

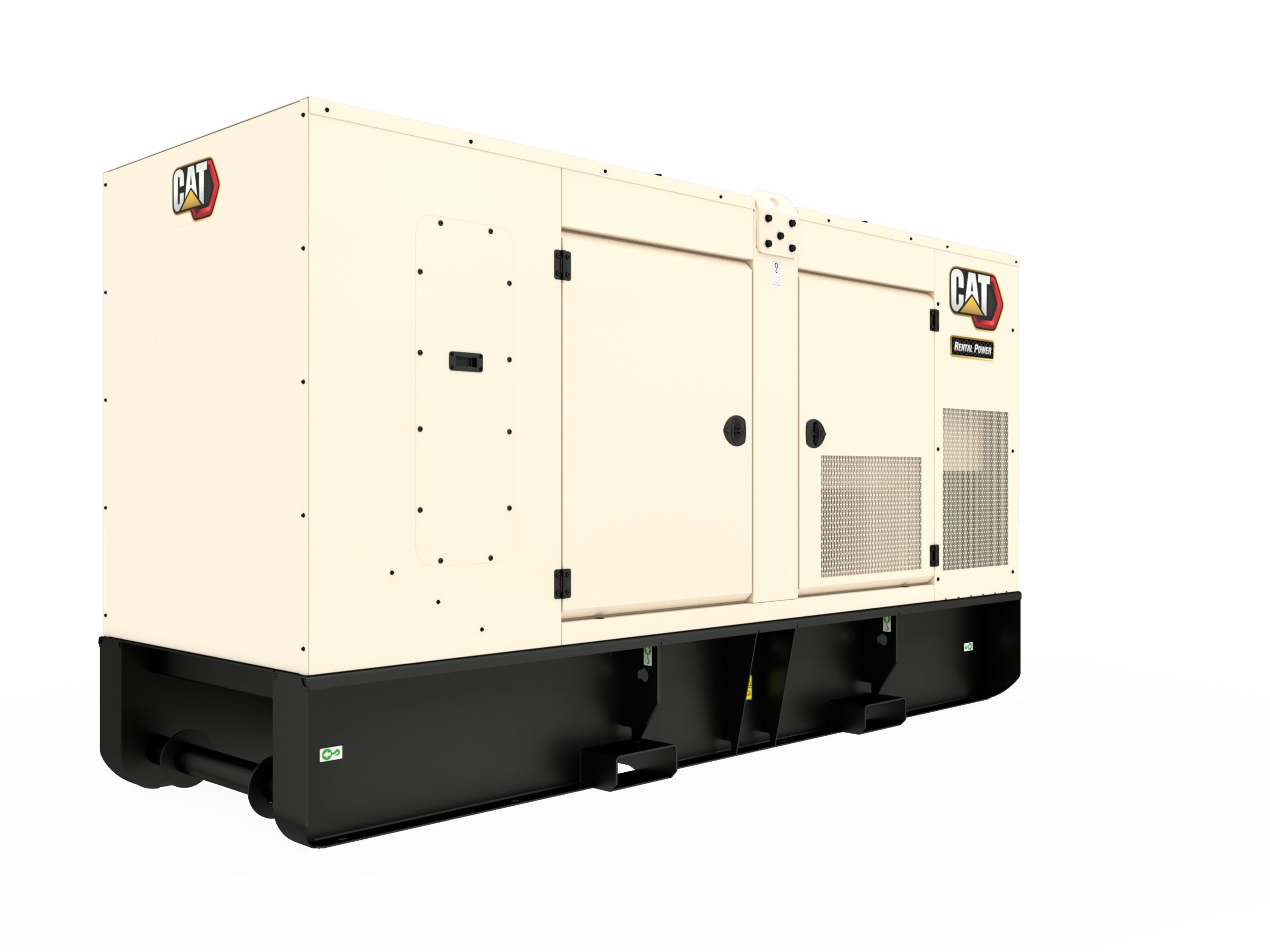

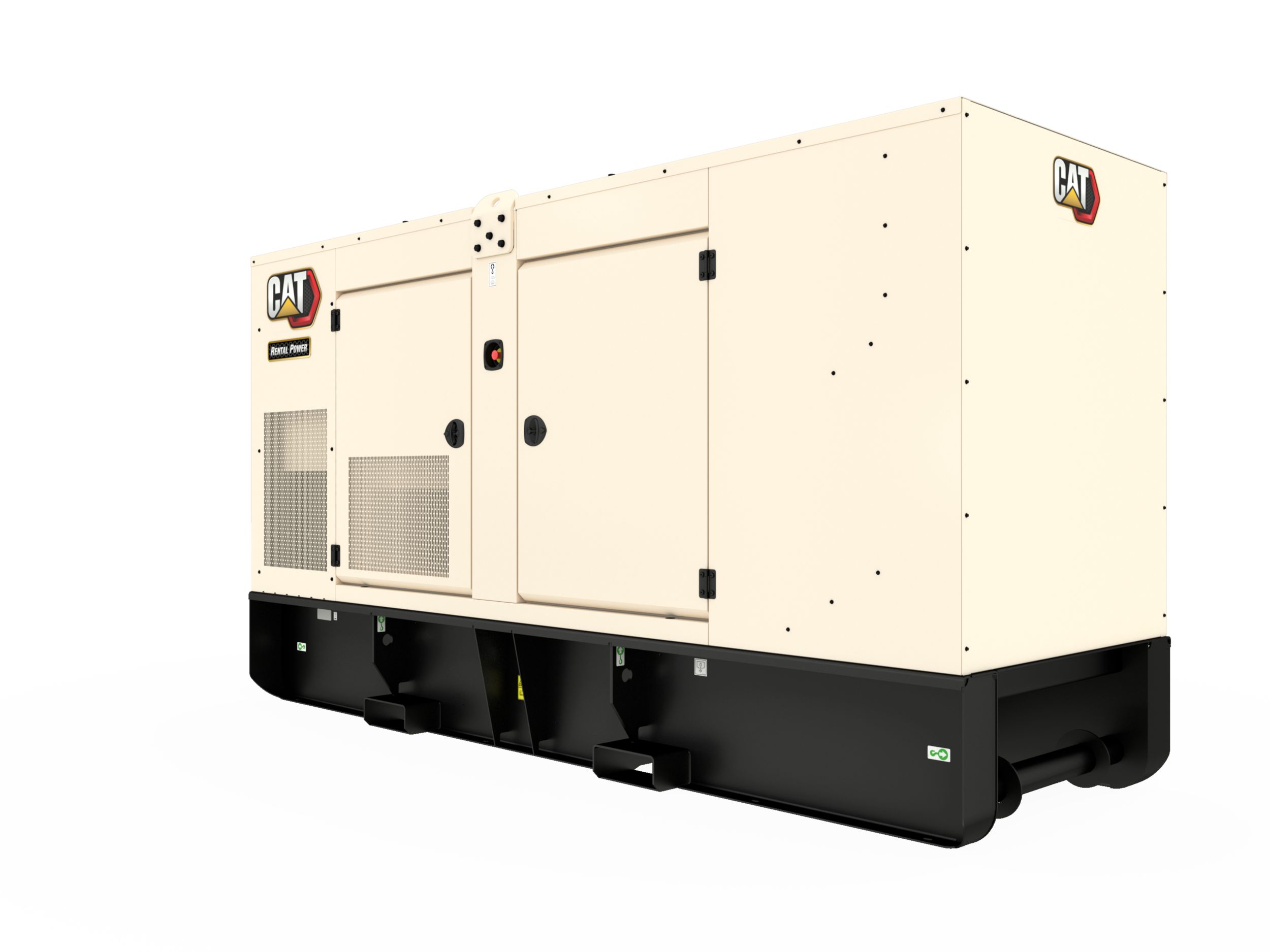

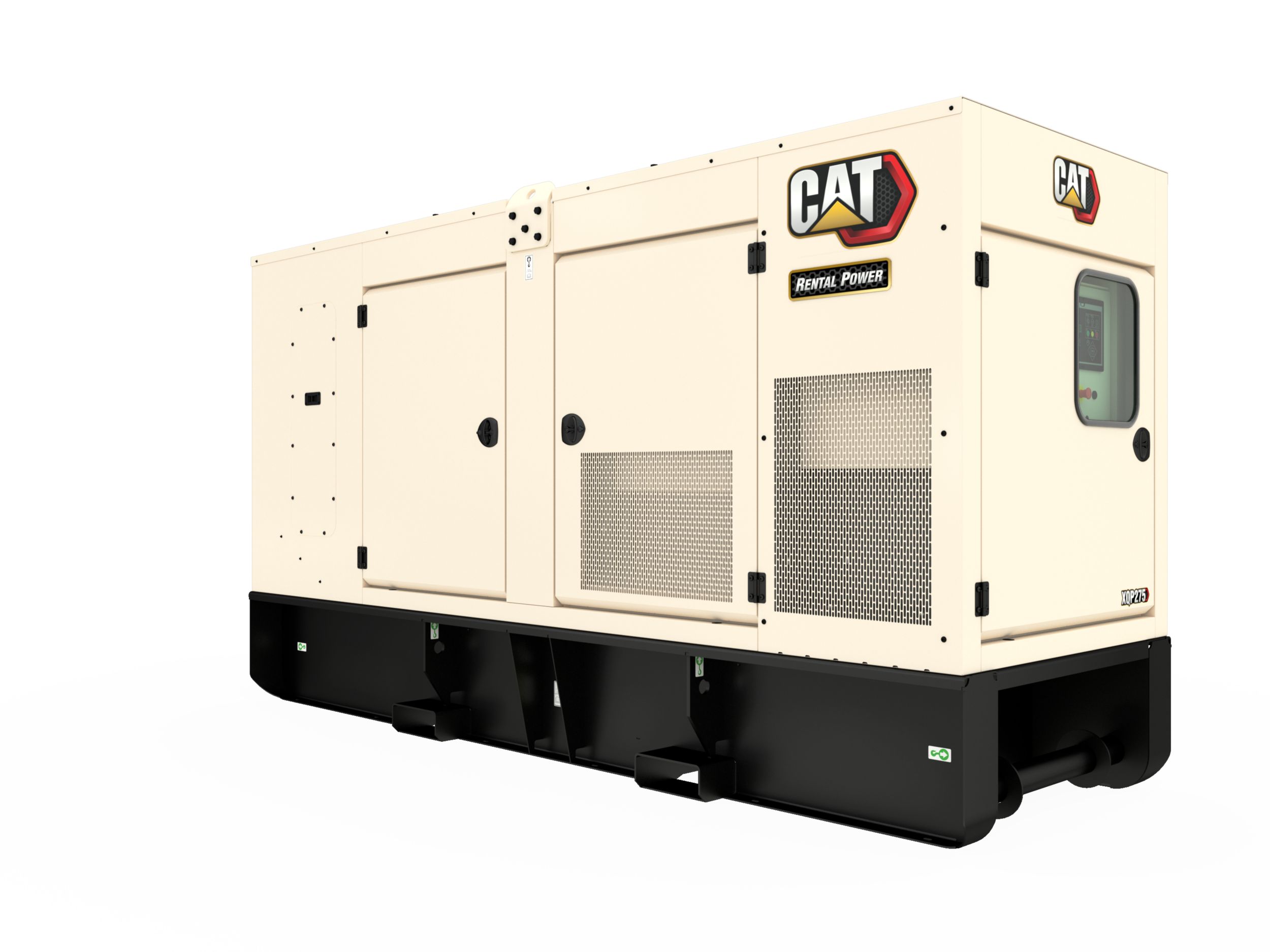

Exterior View
Product Specs
Generator Set
- Rating Prime
- 275 kVA
- Frequency
- 50/60 Hz
- Voltage
- 127 - 480 V
Engine
- Engine
- Cat C9 ACERT Diesel Engine
- Fuel
- Diesel
Dimensions
- Width
- 55 in
- Height
- 84 in
- Length
- 160 in
- Weight - With Lube Oil and Coolant
- 8553 lb
Fuel Consumption EU Stage IIIA
- 100% Load 50Hz
- 15.8 gal/hr
- 100% Load 60Hz
- 20 gal/hr
- 75% Load 50Hz
- 12.7 gal/hr
- 75% Load 60Hz
- 15.8 gal/hr
- 50% Load 50Hz
- 9.4 gal/hr
- 50% Load 60Hz
- 11.6 gal/hr
Standard Equipment
-
- Cat C9 Diesel Engine
-
- Turbocharged
-
- Generator
-
- LC5114J Frame
-
- Air Filter
-
- Cyclonic/paper with dust cup and service indicator
-
- Cat Connect Remote Monitoring
-
- Provides package monitoring and management
-
- Cooling System
-
- Package mounted radiator with vertical air discharge. Filled from factory
-
- Charging / Starting System
-
- 24V heavy duty starting motor and charging alternator c/w battery isolator
-
- Fuel System
-
- Dual wall fuel tank with 3 way directional valve for external supply
-
- Control Panel
-
- Digital EMCP4.2B set mounted controller
-
- Distribution
-
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
-
- Structure
-
- Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. base frame is wider than enclosure to protect generator set during transportation.
-
- Enclosure
-
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
-
- Exhaust
-
- Integrated spark arresting silencer
-
- Lube Oil
-
- On engine primary and secondary oil filters. Filled from factory
-
- General
-
- Factory tested and inspected
