Product Specs
Generator Set Specifications
- Minimum Rating
- 450 ekW
- Maximum Rating
- 500 ekW
- Emissions/Fuel Strategy
- Tier 2, Tier 3
- Voltage
- 480 to 600 Volts
- Frequency
- 60 Hz
- Speed
- 1800 RPM
- Duty Cycle
- Standby
Engine Specifications
- Engine Model
- C15 ATAAC, I-6, 4-Stroke Water-Cooled Diesel
- Bore
- 5.4 in
- Stroke
- 6.75 in
- Displacement
- 927.56 in³
- Compression Ratio
- 16.1:1
- Aspiration
- Air to Air Aftercooled
- Fuel System
- MEUI
- Governor Type
- Adem™A4
Generator Set Dimensions
- Length - Maximum
- 189.6 in
- Width - Maximum
- 64.2 in
- Height - Maximum
- 101.7 in
Standard Equipment
-
- Air Inlet System
-
- Aftercooler core
- Air cleaner - Non-Canister, Disposable
- Turbocharger
-
- Control Panel
-
- GCCP 1.2
-
- Cooling System
-
- Blower fan and fan drive with guards
- Coolant drain valve.
- Radiator, Package mounted.
- Jacket water pump, gear driven, centrifugal
- Radiator sight gauge
- Thermostats and housing.
-
- Exhaust System
-
- Exhaust manifold; dry
-
- Fuel System
-
- Engine fuel transfer pump
- Integral Tank Base, 24 Hrs, UL142
- Fuel cooler
- Primary fuel filter w/integral water separator and secondary filter, spin on
- Fuel priming pump
-
- Generator Set
-
- Complete system designed & built at ISO 9001:2000 certified facilities
- All protective devices and control functions simulated and checked
- Factory tested to design specifications at full load conditions
-
- Generators And Generator Attachments
-
- Easy access to AVR and terminals
- Voltage regulator (single phase sensing)
- 6 leads
- Terminal Box, IP22 RHS Facing, Bottom Cable Entry
- IP23 protection
- Standard winding protection for non-harsh environments with relative humidity ? 95%
- Insulation, Class H
- Brushless, self-excited 2/3 pitch (600V uses Internal Excitation)
-
- Governing System
-
- Cat Electronic Governor (ADEM A4)
-
- Lube System
-
- Fumes disposal to front of radiator.
- Shallow oil pan.
- Lubricating Oil, CK-4 (10W-30)
- Oil cooler
- Oil filler and dipstick.
- Oil drain with valve.
- Oil filter, spin on.
-
- Mounting System
-
- Captive linear vibration isolators between base and engine-generator
- Includes lifting provisions and termination points for coolant and lube oil drain lines
-
- Protection
-
- Safety Shutoff - Overspeed
- Safety Shutoff - Low Oil Pressure
- Safety Shutoff - High water temperature
-
- Starting/charging System
-
- 24-volt electric starting motor.
- 24V,45 amp charging alternator.
-
- General
-
- Lifting Eyes
- Vibration damper.
- Parts Book
Attachments
-
- Air Inlet System
-
- Air Cleaner (Non-Canister Disposable)
-
- Bases, Mounting & Fuel Tanks
-
- Fuel Tank Fill Pipe & Lockable Cap
- 5 gallon Spill Containment
- Overfill Prevention Valve
- Integral Tank Base, 24 Hrs, UL142
- Wide Base - Skid
- Audio & Visual Fuel Alarm (@90% Fuel Level)
-
- Exhaust
-
- Industrial, Residential, Critical Mufflers
-
- Circuit Breaker
-
- 400A LS/I
- 600A LS/I
- 800A LS/I
- 1200A LS/I
- 400A LSI
- Auxiliary Contacts
- 1200A LSI
- 800A LSI
- 600A LSI
-
- Control System
-
- 100A Load Center
- 16 -light NFPA 99/110 Annunciator
- Volt Free Contacts
- Ground Fault Relay
- Audible Alarm Gp
- Product Link Remote Monitoring hardware
- 20A GFCI (Ground Fault Circuit Interrupter)
- Twist Release, Red Button Emergency Stop
-
- Enclosures
-
- E-Stop

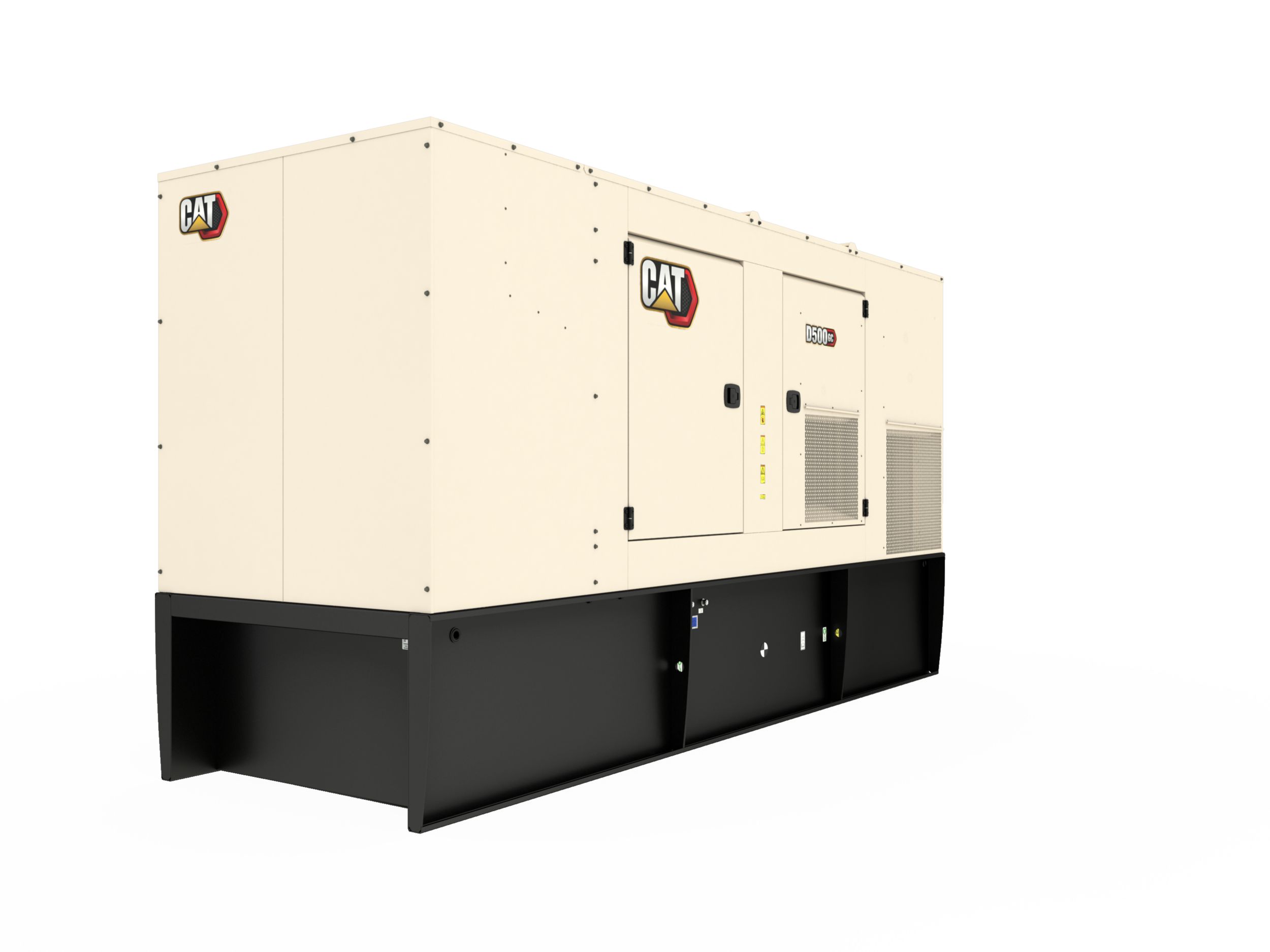

- Sound Attenuated Level 2 Enclosure (White)
- AC & DC Source Lights
-
- Exhaust System
-
- Manifold & Turbocharger Guards
- 8" Muffler - 25 dBA Attenuation
- Flexible Exhaust Connection
-
- Generator
-
- Anti-condensation heater
- Excitation: [ ] Permanent Magnet Excited (PM) [ ] Internally Excited (IE)
- Oversize and premium generators
- Permanent Magnet Generator
- Space Heater
-
- Power Termination
-
- Circuit breakers, IEC compliant
- Circuit breakers, UL listed
-
- Starting System
-
- Standard Battery Set: 1000 CCA, 90 amp/hr.
- Oversize Battery Set, 1400 CCA, 200 amp/hr.
- Battery Charger (UL Certified)
- Jacket Water Heater
-
- General
-
- Generator Test Report
- CSA Certification
- UL2200 Certification
- Extended Service Coverage
- UL 2200 package
- CSA Certification
-
- Lube System
-
- Manual sump pump
-
- Mounting System
-
- Narrow skid base - replaces standard fuel tank base
