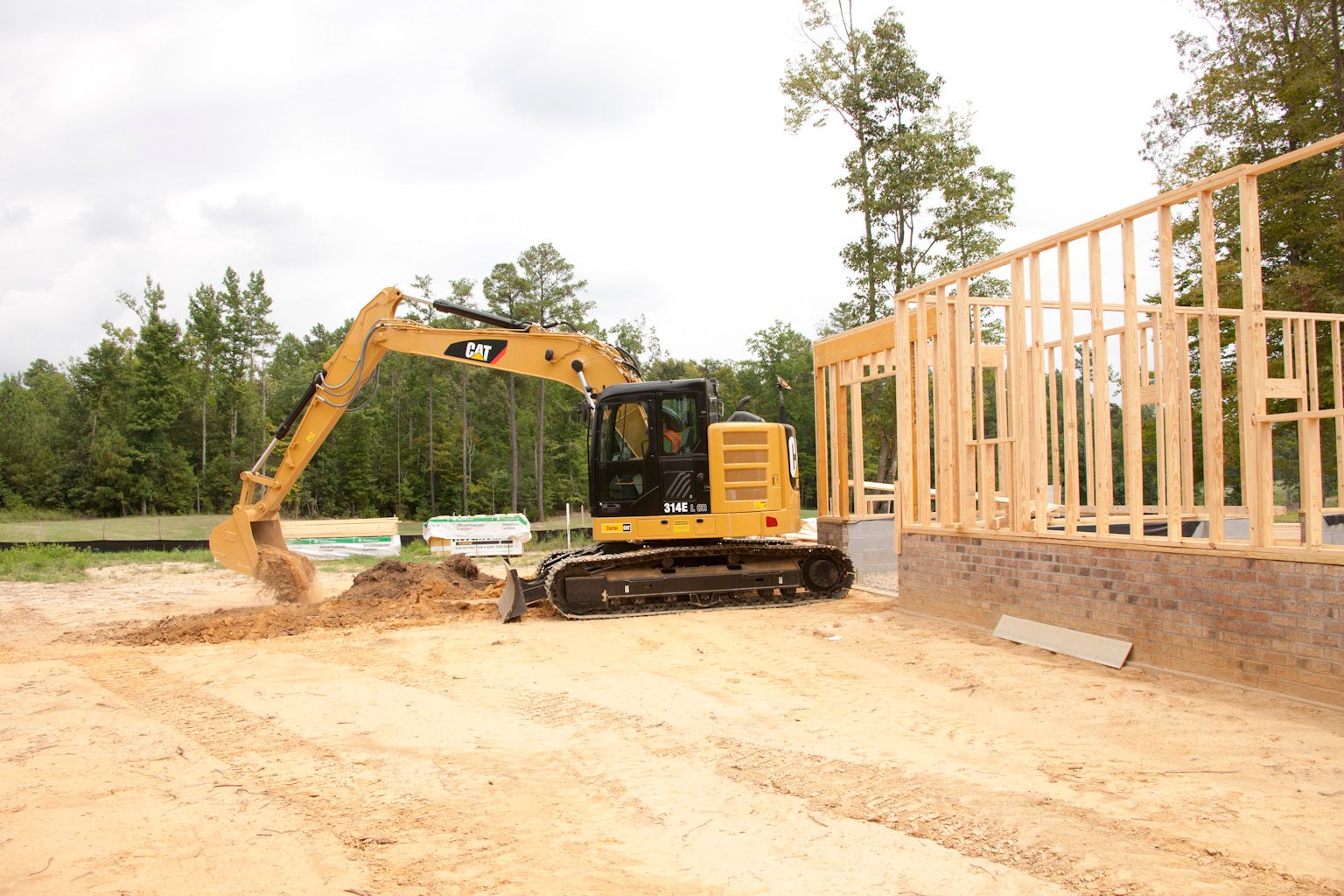

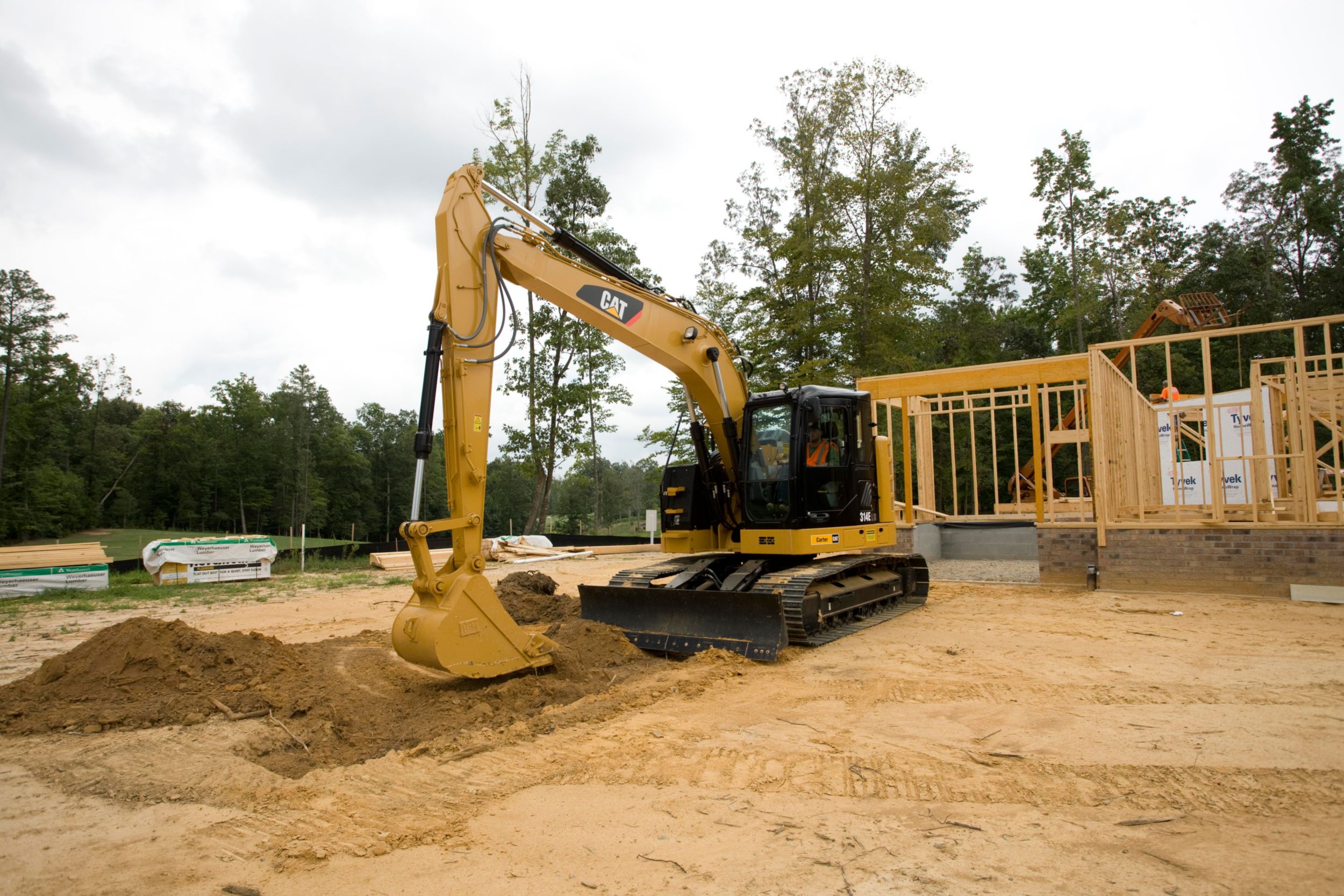

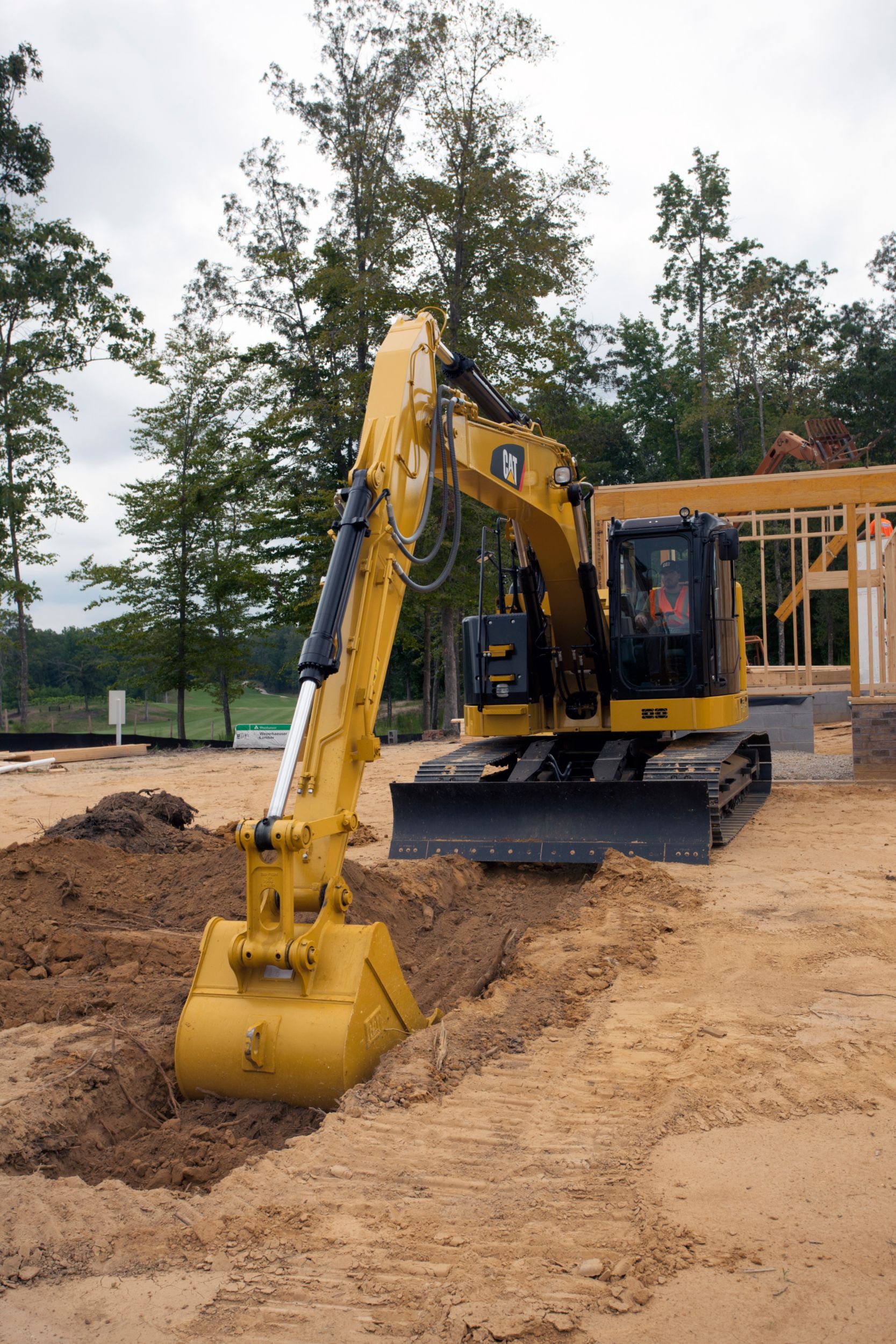

314E CR Hydraulic Excavator
Exterior View
Please contact your nearest store for rates and other details.
Product Specs
Engine
- Engine Model
- Cat® C4.4 ACERT™
- Engine Model
- Cat® C4.4 ACERT™
- Flywheel Power
- 89.0 hp
- Flywheel Power
- 89 mm H2O
- Bore
- 4.1 in
- Bore
- 4.1 lb/in
- Stroke
- 5.0 in
- Stroke
- 5 lb/in
- Displacement
- 270.0 in3
- Displacement
- 270 in³
- Gross Power - SAE J1995
- 95.0 hp
- Net Power - SAE J1349
- 89.0 hp
- Gross Power - SAE J1995
- 95 mm H2O
- Net Power - SAE J1349
- 89 mm H2O
Weights
- Operating Weight
- 32600.0 lb
- Operating Weight
- 32600 lb
Drive
- Maximum Drawbar Pull
- 25400.0 lb
- Maximum Drawbar Pull
- 25400 lb
- Maximum Travel Speed
- 3.4 mph
- Maximum Travel Speed
- 3.4 mile/h
Swing Mechanism
- Swing Torque
- 22790.0 lb ft
- Swing Torque
- 22790 ft-lb
- Swing Speed
- 11.5 RPM
- Swing Speed
- 11.5 r/min
Hydraulic System
- Maximum Pressure - Travel
- 5080.0 psi
- Maximum Pressure - Travel
- 5080 psi
- Maximum Pressure - Swing
- 3340.0 psi
- Maximum Pressure - Swing
- 3340 psi
- Pilot System - Maximum Flow
- 4.8 gal/min
- Pilot System - Maximum Flow
- 4.8 gal/min
- Pilot System - Maximum Pressure
- 600.0 psi
- Pilot System - Maximum Pressure
- 600 psi
- Boom Cylinder - Bore
- 4.3 in
- Boom Cylinder - Bore
- 4.3 lb/in
- Boom Cylinder - Stroke
- 39.4 in
- Boom Cylinder - Stroke
- 39.4 lb/in
- Stick Cylinder - Bore
- 4.7 in
- Stick Cylinder - Bore
- 4.7 lb/in
- Stick Cylinder - Stroke
- 47.1 in
- Stick Cylinder - Stroke
- 47.1 lb/in
- Bucket Cylinder - Bore
- 3.9 lb/in
- Bucket Cylinder - Stroke
- 37 lb/in
- Main System - Maximum Flow (Total)
- 67.0 gal/min
- Maximum Pressure - Equipment
- 4420.0 psi
- Maximum Pressure - Power Offset Boom - Optional
- 4340 psi
- Swing System - Maximum Flow
- 34.0 gal/min
- Main System - Maximum Flow - Total
- 67 gal/min
- Maximum Pressure - Equipment
- 4420 psi
- Swing System - Maximum Flow
- 34 gal/min
Service Refill Capacities
- Cooling System
- 7.4 gal
- Cooling System
- 7.4 gal (US)
- Swing Drive (each)
- 0.6 gal
- Swing Drive - Each
- 0.6 gal (US)
- Final Drive (each)
- 0.8 gal
- Final Drive - Each
- 0.8 gal (US)
- Hydraulic System (including tank)
- 42.3 gal
- Hydraulic System - Including Tank
- 42.3 gal (US)
- Hydraulic Tank
- 22.2 gal
- Hydraulic Tank
- 22.2 gal (US)
- Engine Oil (with filter)
- 3.6 gal
- Fuel Tank Capacity
- 47.0 gal
- Engine Oil - With Filter
- 3.6 gal (US)
- Fuel Tank Capacity
- 47 gal (US)
Sound Performance
- ISO 6395 - Spectator Noise
- 100 dB(A)
- ISO 6396 - Operator Noise (Closed)
- 69 dB(A)
Track
- Long Undercarriage - Number of Carrier Rollers (each side)
- 2 pieces
- Long Undercarriage - Number of Shoes (each side)
- 46 pieces
- Long Undercarriage - Number of Track Rollers (each side)
- 7 pieces
Standard Equipment
-
- Cab
-
- Pressurized operator station with positive filtration
- Sliding upper door window (left-hand cab door)
- Removable lower windshield with in cab storage bracket
- Coat hook
- Beverage holder
- Literature holder
- AM/FM radio
- Radio with MP3 auxiliary audio port
- Two stereo speakers
- Storage shelf suitable for lunch or toolbox
- Color LCD display with indicators, filter/fluid change, and working hour information
- Adjustable armrest
- Height adjustable joystick consoles
- Neutral lever (lock out) for all controls
- Travel control pedals with removable hand levers
- Capability of installing additional pedal
- Power outlets, 5 amp
- Travel alarm
- Laminated glass front upper window and tempered other windows
-
- Electrical
-
- 80 amp alternator
- Circuit breaker
- Capability to electrically connect a beacon
-
- Engine
-
- C4.4 diesel engine
- Biodiesel capable
- Meets EPA Tier 4 Interim emission standards
- 2300 m (7,500 ft) altitude capability
- Electric priming pump
- Automatic engine speed control
- Economy and high power modes
- Two-speed travel
- Side-by-side cooling system
- Radial seal air filter
- Primary filter with water separator and water separator indicator
- Secondary filter
- Screen filter in fuel line
- Variable speed fan with viscous clutch
-
- Hydraulic System
-
- Regeneration circuit for boom and stick
- Reverse swing dampening valve
- Automatic swing parking brake
- High-performance hydraulic return filter
- Fine swing control
-
- Lights
-
- Halogen boom light (left side)
- Time delay function for boom light and cab light
- Exterior light
-
- Undercarriage
-
- Center track guiding guard
- Grease Lubricated Track GLT2, resin seal
- Towing eye on base frame
-
- Security
-
- Cat one key security system
- Door locks
- Cap locks on fuel and hydraulic tanks
- Lockable external tool/storage box
- Signaling/warning horn
- Secondary engine shutoff switch
- Rear window for emergency exit
- Guard, travel motor protection
- Guard rail
- Rearview camera-ready
Attachments
-
- Cab
-
- Seat, high-back air suspension with heater and cooling
- Seat, high-back air suspension with heater
- Seat, high-back mechanical suspension
- Right pedal
- Rain protector
- Cab mirror
- Ashtray
-
- Counterweight
-
- 3.06 mt (3.4 t) without lifting eye
- 3.56 mt (3.9 t) without lifting eye
-
- Electrical
-
- Cold weather battery -25° C (-13° F)
- Jump start receptacle
-
- Engine
-
- Quick drains, engine and hydraulic oil
-
- Front Linkage
-
- Quick coupler
- Bucket linkage
- 4.65 m (15'3") Reach Boom
- Power Offset Boom
- 2.13 m (6'11") stick for Power Offset Boom
- 2.5 m (8'2") stick
- 2.8 m (9'2") stick
- 3.0 m (9'10") stick
- 3.0 m (9'10") thumb-ready stick
-
- Hydraulic System
-
- Control pattern quick-changer, two way
- Auxiliary hydraulics
- Boom and stick lines
- High-pressure line
- Medium-pressure line
- Quick coupler line
- Boom lowering and stick lowering control device
- Cat Bio hydraulic oil
-
- Lights
-
- Working light, cab mounted with time delay
- HID light, cab mounted with time delay
- Halogen boom lights (right side)
-
- Undercarriage
-
- 500 mm (20") triple grouser shoes
- 600 mm (24") triple grouser shoes
- 700 mm (28") triple grouser shoes
- Rubber pad for 500 mm (20") triple grouser shoes
- 2500 mm (8'2") blade with replaceable cutting edge
- 2600 mm (8'6") blade with replaceable cutting edge
- 2700 mm (8'10") blade with replaceable cutting edge
- Swivel guard
-
- Security
-
- FOGS, bolt-on
- Guard, cab front, mesh
- Guard, vandalism
- Security system fitted (MSS)
- Bottom guards, heavy duty
- Rearview camera
-
- Technology
-
- Cat Grade Control Depth and Slope
- Product Link
